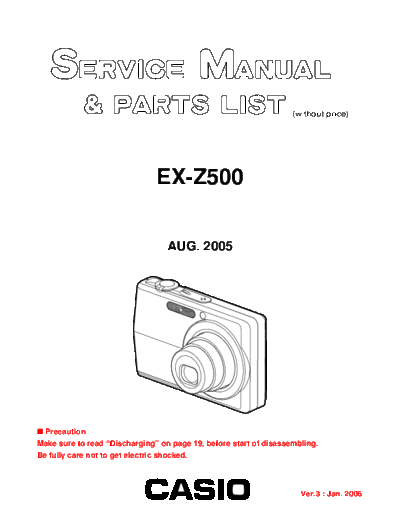

Image preview - the first page of the document



>> Download CASIO_EX_Z500 documenatation <<

Text preview - extract from the document

                                                                   (without price)




                                 EX-Z500

                                    AUG. 2005




s Precaution
Make sure to read "Discharging" on page 19, before start of disassembling.
Be fully care not to get electric shocked.



  INDEX                                                 R
                                                                     Ver.3 : Jan. 2006
                                                                 CONTENTS

SPECIFICATIONS ....................................................................................................................................... 1
BLOCK DIAGRAM ...................................................................................................................................... 5
TEST MODE ................................................................................................................................................ 6
PROGRAM VERSION UPGRADING .......................................................................................................... 7
   1. To update the firmware version ..................................................................................................... 7
   2. How to restore the firmware ........................................................................................................... 8
   3. To install the firmware .................................................................................................................... 9
ADJ TOOL ................................................................................................................................................. 10
   1. Preparation ..................................................................................................................................... 10
   2. How to use ADJ Tool when replacing Lens unit ........................................................................ 12
   3. How to use ADJ Tool when replacing MAIN PCB ...................................................................... 13
VCOM DC ADJUSTMENT ........................................................................................................................ 14
CURRENT CONSUMPTION ..................................................................................................................... 17
THE COUNTERMEASURE FOR "SYSTEM ERROR" ............................................................................. 17
FUSE ON THE MAIN PCB ........................................................................................................................ 18
CHECK/CORRECTION OF THE LANGUAGE MENU .............................................................................. 18
DISASSEMBLY ......................................................................................................................................... 19
EXPLODED VIEW ..................................................................................................................................... 27
PARTS LIST .............................................................................................................................................. 28
PRINTED CIRCUIT BOARD ..................................................................................................................... 30
SCHEMATIC DIAGRAMS ......................................................................................................................... 32
                                             SPECIFICATIONS
Image Files Format             Snapshots: JPEG (Exif Ver.2.2); DCF (Design rule for Camera File system) 1.0 standard;
                                          DPOF compliant
                               Movies:     AVI (Motion JPEG)
                               Audio:      WAV
Recording Media                8.7MB built-in memory
                               SD Memory Card
                               MultiMediaCard
Image Size                     Snapshots: 2560 x 1920 pixels
                                           2560 x 1712 (3:2) pixels
                                           2304 x 1728 pixels
                                           2048 x 1536 pixels
                                           1600 x 1200 pixels
                                           640 x 480 pixels
                               Movies:     320 x 240 pixels

Approximate Memory Capacity and File sizes
