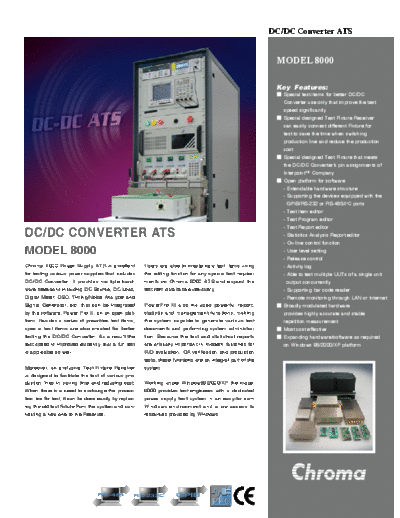

Image preview - the first page of the document
>> Download 8000DD-Edm documenatation <<
Text preview - extract from the document
DC/DC Converter ATS
MODEL 8000
Key features:
Special test items for better DC/DC
Converter use only that improve the test
speed significantly
Special designed Test Fixture Receiver
can easily connect different Fixture for
test to save the time when switching
production line and reduce the production
cost
Special designed Test Fixture that meets
the DC/DC Converter's pin assignments of
InterpointTM Company
Open platform for software
- Extendable hardware structure
- Supporting the devices equipped with the
GPIB/RS-232 or RS-485/I2C ports
- Test Item editor
- Test Program editor
- Test Report editor
DC/DC CONVERTER ATS - Statistics Analysis Report editor
- On-line control function
MODEL 8000 - User level setting
- Release control
Chroma 8000 Power Supply ATS is excellent Users are able to create new test items using - Activity log
for testing various power supplies that includes the editing function for any special test require- - Able to test multiple UUTs of a single unit
DC/DC Converter. It provides multiple hard- ments on Chroma 8000 ATS and expand the output concurrently
ware selections including DC Source, DC Load, test item database extensively. - Supporting bar code reader
Digital Meter, DSO, Timing/Noise Analyzer and - Remote monitoring through LAN or Internet
Signal Generator, etc. that can be integrated PowerPro III also includes powerful report, Broadly modulated hardware
by the software, Power Pro III, on an open plat- statistic and management functions, making provides highly accurate and stable
form. Besides a series of prewritten test items, the system capable to generate various test repetition measurement
special test items are also created for better documents and performing system administra- Most cost effective
testing the DC/DC Converter. As a result the tion. Because the test and statistical reports Expanding hardware/software as required
test speed is improved evidently that a full test are critically important in modern factories for on Windows 98/2000/XP platform
is applicable as well. R/D evaluation, QA verification and production
tests, these functions are an integral part of the
Moreover, an exclusive Test Fixture Receiver system.
is designed to facilitate the test of various pro-
duction lines in saving time and reducing cost. Working under Window98/2000/XP the model
When there is a need to exchange the produc- 8000 provides test engineers with a dedicated
tion line for test, it can be done easily by replac- power supply test system in an easy-to-learn
ing the old test fixture from the system and con- Windows environment and allow access to
necting a new one to the Receiver. resources provided by Windows.
RS-485 RS-232C GPIB
special test items fOr dc/dc cOnverter
Chroma 8000 ATS not only equips a database of standard test items but also has the test items specially designed for testing DC/DC Converter.
As a result the test speed is improved evidently that a full test is applicable as well.
Special test items contain 6 types of DC/DC Converter power supply test requirements. They are OUTPUT PERFORMANCE to inspect the UUT
's output functions, INPUT CHARACTERIESTIC to inspect the power input parameters, REGULATION TESTS to inspect the stability of UUT
when inputting power and changing load, TIMING AND TRANSIENT to measure the transient state at power on/off and the time of each event,
PROTECTION TESTS to inspect the protective circuit and SPECIAL TESTS to provide commands controlling the device via GPIB, RS-232 and
RS-485 ports.
OUTPUT PERFORMANCES INPUT CHARACTERIESTICS REGULATION TESTS PROTECTION TESTS
1. DC OUTPUT VOLTAGE 7. SWITCHING FREqUENCy 13. CROSS LOAD REGULATION 20. SHORT CIRCUIT
2. NOISE 8. SyNC. FREqUENCy 14. LINE REGULATION 21. OC PROTECTION
3. EFFICIENCy 9. INPUT CURRENT 15. LOAD REGULATION
4. OVERSHOOT VOLTAGE 10. INPUT CURRENT INITIAL SPECIAL TESTS
5. DyNAMIC 11. INPUT POWER TIMING AND TRANSIENT 22. CONTROL INSTRUMENT
6. SyNC. DyNAMIC 12. VIN RAMP 16. TURN ON TIME VIA GPIB, RS-232, RS-485
17. TRANSIENT RESPONSE TIME INTERFACE READ/WRITE
18. TRANSIENT SPIkE
19. LINE TRANSIENT
high perfOrmance hardware devices
1 1. Data Acquisition Switch Unit : Agilent -34970A; Other types or brand of
Data Acquisition Switch unit supported upon request
2 2. Function / Arbitrary Waveform Generator : Agilent -33220A; Other types or
brand of Function / Arbitrary Waveform Generator supported upon request
3 3. Digital Storage Oscilloscope : TDS-3000/TDS-5000/TDS-7000 series;
Other types or brands of DSO supported upon request
4 4. Breaker : 30A / 60A selectable with emergency stop control
5 5. System Controller : Industrial PC
6 6. Electronic Load : Model 63200 / 6330 / 6340 series Electronic Load
7 7. Receiver : Port for connecting test fixture box and test system
8 8. Shunt Board : Provide accurate DC input/output current measurement
9 9. DC Source : Model 6200F /6260 /62120 /62000P Series
10 10. Timing / Noise Analyzer : Model 6011
Other devices support upon request.
8
dc pOwer sOurce
Chroma power supply automatic test system model 8000 supports all
Chroma Model 6200, 6200k, 6200F, 6260, 62120, 62000P series DC
power sources which may be used as line-in or OVP sources.
MODEL 6200F Series 6260 Series 62120 Series 62000P Series
Power rating 1200~12000W 6000W 12000W 600~1200W
Voltage range 0~5V/150V 0~10V/600V 0~10V/600V 0~100V/600V
Programmable current limit yes yes yes yes
Programmable OV point yes yes yes yes
Analog programming yes yes yes yes
Remote sensing yes yes yes yes
Line-drop compensation 5V 5V 5V 5V
dc electrOnic lOad
Chroma power supply automatic test system model 8000 can
support all Chroma Model 6300, 6310, 6330, 63200 and 6340 series
DC electronic load. They come with different powers, load modes,
slew rates and features. This provides users maximum selection
opportunities for different test application requirements.
MODEL 6330 series 63200 series 6340 series
Load mode CC/CR/CV CC/CR/CV/CP CC
Power rating 30~1200W 2000~12000W 625W
Voltage range 1~500V 1~500V 0.8~50V
Current range Up to 240A Up to 600A Up to 150A
Slew rate Up to 10A/◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
