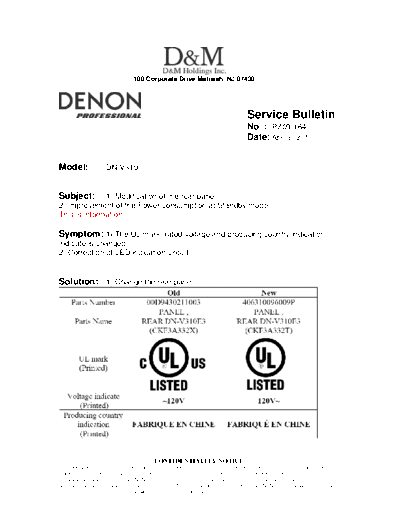

Text preview - extract from the document

                                  100 Corporate Drive Mahwah, NJ 07430




                                                                                       Service Bulletin
                                         No. : PZ09-164
                                         Date: April 6, 2010
_____________________________________________________________

Model:               DN-V310


Subject:      1) Modification of the rear panel.
2) Improvement of the Power consumption at Standby mode.
This is information.

Symptom: 1) The UL mark, rated voltage and producing country indication
indicate is changed.
2) Correction of LED indication circuit.


Solution: 1) Change the rear panel.




______________________________________________________________________________________
                             CONFIDENTIALITY NOTICE:
The information contained in this document is intended for the exclusive use by DENON Authorized Service Centers and their
employees. This document may contain information that is privileged, confidential and may be protected from disclosure under
applicable laws and terms of the DENON Service Agreement. Any distribution, disclosure, dissemination or copying of this
document and the information it contains is prohibited. No responsibility will be accepted by DENON for any damage, injury or loss
resulting from the misuse of the information contained in this document.
2) Change an LED and resistor.




Caution! :
1) You have to use P/N "00D9430211003 (CKF3A332X)" for the repair of the
rear panel before December, 2009 production. (Serial Number: ~91266*****).
2) You have to use P/N "406310096009P (CKF3A332T)" for the repair of the
rear panel after January, 2010 production. (Serial Number: 00166***** ~).


Serial Number Range:
We will apply the above modification to the production models in the following
serial numbers. (Full Digits)

00166***** ~ (Production from January 2010)
