Service Manuals, User Guides, Schematic Diagrams or docs for : DENON Audio AVR-2807 DENON AVR-2807
<< Back | HomeMost service manuals and schematics are PDF files, so You will need Adobre Acrobat Reader to view : Acrobat Download Some of the files are DjVu format. Readers and resources available here : DjVu Resources
For the compressed files, most common are zip and rar. Please, extract files with Your favorite compression software ( WinZip, WinRAR ... ) before viewing. If a document has multiple parts, You should download all, before extracting.
Good luck. Repair on Your own risk. Make sure You know what You are doing.

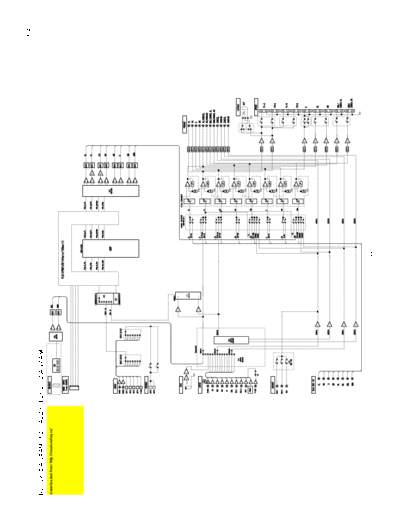

Image preview - the first page of the document
>> Download DENON AVR-2807 documenatation <<
Text preview - extract from the document
AVR-2807
BLOCK DIAGRAM (1/2) AUDIO BLOCK DIAGRAM
downloaded from http://receiverfaq.ru/
11
AVR-2807
BLOCK DIAGRAM (2/2) VIDEO BLOCK DIAGRAM
12
AVR-2807 / AVC-2920
SCHEMATIC DIAGRAMS (1/31)
1 2 3 4 5 6 7 8 9 10 11
A
B
C
D
E
F
G
SCHEMATIC DIAGRAMS (1/31)
H
1U-3700-1 MAIN CPU UNIT (1/2)
AVR-2807 / AVC-2920
SCHEMATIC DIAGRAMS (2/31)
1 2 3 4 5 6 7 8 9 10 11
A
B
C
D
E
F
G
SCHEMATIC DIAGRAMS (2/31)
1U-3700-1 MAIN CPU UNIT (2/2)
H
AVR-2807 / AVC-2920
SCHEMATIC DIAGRAMS (3/31)
1 2 3 4 5 6 7 8 9 10 11
A
B
C
D
E
F
G
SCHEMATIC DIAGRAMS (3/31)
H
1U-3700-2 DIGITAL IN UNIT
AVR-2807 / AVC-2920
SCHEMATIC DIAGRAMS (4/31)
1 2 3 4 5 6 7 8 9 10 11
A
B
C
D
E
F
G
SCHEMATIC DIAGRAMS (4/31)
H
1U-3700-3 EXT IN / PREOUT UNIT
1U-3700-4 PRE CONNECT2 UNIT
AVR-2807 / AVC-2920
SCHEMATIC DIAGRAMS (5/31)
1 2 3 4 5 6 7 8 9 10 11
A
B
C
D
E
F
G
SCHEMATIC DIAGRAMS (5/31)
H
1U-3701-1 POWER AMP UNIT
AVR-2807 / AVC-2920
SCHEMATIC DIAGRAMS (6/31)
1 2 3 4 5 6 7 8 9 10 11
A
B
C
D
E
F
G
SCHEMATIC DIAGRAMS (6/31)
H
1U-3701-2 PRIMARY UNIT
1U-3701-6 STYLE PIN UNIT
AVR-2807 / AVC-2920
SCHEMATIC DIAGRAMS (7/31)
1 2 3 4 5 6 7 8 9 10 11
A
B
C
D
E
F
G
SCHEMATIC DIAGRAMS (7/31)
H
1U-3702-1 P. SUPPLY UNIT
AVR-2807 / AVC-2920
SCHEMATIC DIAGRAMS (8/31)
1 2 3 4 5 6 7 8 9 10 11
A
B
C
D
E
F
G
SCHEMATIC DIAGRAMS (8/31)
H
1U-3702-2 CONNECT UNIT
1U-3702-4 PRE CONNECT UNIT
AVR-2807 / AVC-2920
SCHEMATIC DIAGRAMS (9/31)
1 2 3 4 5 6 7 8 9 10 11
A
B
C
D
E
F
G
SCHEMATIC DIAGRAMS (9/31)
H
1U-3702-3 VOL AMP UNIT
AVR-2807 / AVC-2920
SCHEMATIC DIAGRAMS (10/31)
1 2 3 4 5 6 7 8 9 10 11
A
B
C
D
E
F
G
SCHEMATIC DIAGRAMS (10/31)
H
1U-3703-10 CVBS UNIT
1U-3703-11 V-CONN1 UNIT
1U-3703-12 V-CONN2 UNIT
AVR-2807 / AVC-2920
SCHEMATIC DIAGRAMS (11/31)
1 2 3 4 5 6 7 8 9 10 11
A
B
C
D
E
F
G
SCHEMATIC DIAGRAMS (11/31)
H
1U-3703-13 232C UNIT
1U-3703-14 EXT. CONNECT UNIT
AVR-2807 / AVC-2920
SCHEMATIC DIAGRAMS (12/31)
1 2 3 4 5 6 7 8 9 10 11
A
B
C
D
E
F
G
SCHEMATIC DIAGRAMS (12/31)
1U-3703-1 FLD UNIT
1U-3703-2 FUNC. UNIT
1U-3703-3 P.KEY UNIT
1U-3703-4 JOINT UNIT
1U-3703-5 TACT-1 UNIT
H
1U-3703-6 TACT-2 UNIT
1U-3703-7 VOL UNIT
1U-3703-8 P.SW UNIT
1U-3703-9 H/P UNIT
AVR-2807 / AVC-2920
SCHEMATIC DIAGRAMS (13/31)
1 2 3 4 5 6 7 8 9 10 11
A
B
C
D
E
F
G
SCHEMATIC DIAGRAMS (13/31)
H
1U-3704-5 COMP-VIDEO UNIT
AVR-2807 / AVC-2920
SCHEMATIC DIAGRAMS (14/31)
1 2 3 4 5 6 7 8 9 10 11
A
B
C
D
E
F
G
SCHEMATIC DIAGRAMS (14/31)
H
1U-3704-6 S-VIDEO UNIT(1/2)
AVR-2807 / AVC-2920
SCHEMATIC DIAGRAMS (15/31)
1 2 3 4 5 6 7 8 9 10 11
A
B
C
D
E
F
G
SCHEMATIC DIAGRAMS (15/31)
H
1U-3704-6 S-VIDEO UNIT(2/2)
AVR-2807 / AVC-2920
SCHEMATIC DIAGRAMS (16/31)
1 2 3 4 5 6 7 8 9 10 11
A
B
C
D
E
F
G
SCHEMATIC DIAGRAMS (16/31)
H
1U-3704-1 AUDIO UNIT(1/4)
AVR-2807 / AVC-2920
SCHEMATIC DIAGRAMS (17/31)
1 2 3 4 5 6 7 8 9 10 11
A
B
C
D
E
F
G
SCHEMATIC DIAGRAMS (17/31)
H
1U-3704-1 AUDIO UNIT(2/4)
AVR-2807 / AVC-2920
SCHEMATIC DIAGRAMS (18/31)
1 2 3 4 5 6 7 8 9 10 11
A
B
C
D
E
F
G
SCHEMATIC DIAGRAMS (18/31)
H
1U-3704-1 AUDIO UNIT(3/4)
AVR-2807 / AVC-2920
SCHEMATIC DIAGRAMS (19/31)
1 2 3 4 5 6 7 8 9 10 11
A
B
C
D
E
F
G
SCHEMATIC DIAGRAMS (19/31)
H
1U-3704-1 AUDIO UNIT(4/4)
AVR-2807 / AVC-2920
SCHEMATIC DIAGRAMS (20/31)
1 2 3 4 5 6 7 8 9 10 11
A
B
C
D
E
F
G
SCHEMATIC DIAGRAMS (20/31)
H
1U-3704-3 FRONT IN UNIT
1U-3704-4 MIC UNIT
1U-3704-12 IPOD UNIT
1U-3704-13 DSP REG. UNIT
AVR-2807 / AVC-2920
SCHEMATIC DIAGRAMS (21/31)
1 2 3 4 5 6 7 8 9 10 11
A
B
C
D
E
F
G
SCHEMATIC DIAGRAMS (21/31)
H
1U-3737 DIGITAL UNIT(1/11)
AVR-2807 / AVC-2920
SCHEMATIC DIAGRAMS (22/31)
1 2 3 4 5 6 7 8 9 10 11
A
B
C
D
E
F
G
SCHEMATIC DIAGRAMS (22/31)
H
1U-3737 DIGITAL UNIT(2/11)
AVR-2807 / AVC-2920
SCHEMATIC DIAGRAMS (23/31)
1 2 3 4 5 6 7 8 9 10 11
A
B
C
D
E
F
G
SCHEMATIC DIAGRAMS (23/31)
H
1U-3737 DIGITAL UNIT(3/11)
◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
