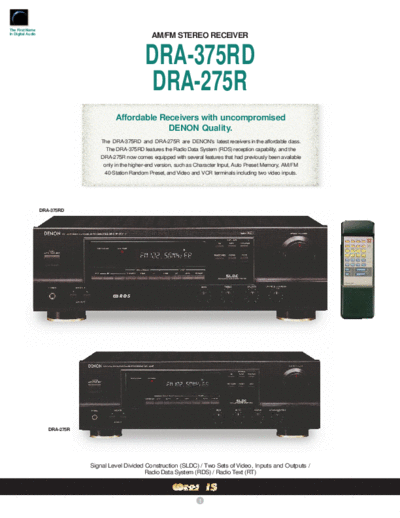

Image preview - the first page of the document
>> Download Описание DRA-375RD & DRA-275R documenatation <<
Text preview - extract from the document
The First Name
In Digital Audio
AM/FM STEREO RECEIVER
DRA-375RD
DRA-275R
Affordable Receivers with uncompromised
DENON Quality.
The DRA-375RD and DRA-275R are DENON's latest receivers in the affordable class.
The DRA-375RD features the Radio Data System (RDS) reception capability, and the
DRA-275R now comes equipped with several features that had previously been available
only in the higher-end version, such as Character Input, Auto Preset Memory, AM/FM
40-Station Random Preset, and Video and VCR terminals including two video inputs.
DRA-375RD
DRA-275R
Signal Level Divided Construction (SLDC) / Two Sets of Video, Inputs and Outputs /
Radio Data System (RDS) / Radio Text (RT)
1
Solid, Reliable AMP
The First Name
In Digital Audio
Signal Level Divided Construction (SLDC)
DRA-375RD The circuits handling low-level and high-level signals have been divided into separate blocks to ensure that influences from these signals on each
DRA-275R other are held to an absolute minimum. This new chassis design in the DRA-375RD/275R is called the Signal Level Divided Construction (SLDC).
Signals for output are cleaner than before, allowing them to be reproduced with even greater fidelity and clarity.
High-Quality Power Amplifier Stage
Powerful high-speed transistors are used in a rational circuit configuration, reflecting DENON's advanced amplifier technology, to deliver a hefty,
stable power output.
Two Sets of Video Inputs and Outputs
A new feature on a DENON receiver is the provision of video input and output terminals for you to connect a video device, such as a VCR or TV
monitor. The DRA-375RD and DRA-275R include two sets of video input and output terminals (VCR, Video inputs and VCR, Monitor outputs).
Adjustable Loudness
Both of these receivers include a Variable Loudness equalization control which lets you select the most appropriate loudness setting at any volume.
Electronic Source Selection
Advanced electronic switches located close to the input terminals have replaced source selector-to-jack cables to further
reduce sound quality deterioration.
Last Function Memory
When you turn off the power to either the DRA- 375RD or DRA-275R, the receiver automatically memorizes the settings, preserving the same
condition for when you turn the receiver back on again.
3-Way Speaker Terminal
The speaker terminals on these receivers can accommodate banana plugs, spade plugs, or bare wire wrapping.
A-B Speaker switching
Switchable AC outlets
Precision Tuning
Radio Data System (RDS)
The DRA-375RD tuner features RDS, the new FM broadcasting system that is becoming increasingly popular in Europe and the United States.
Tuners with RDS reception capability are able perform a wide range of services for the listener.
Conventional Tuner Display
