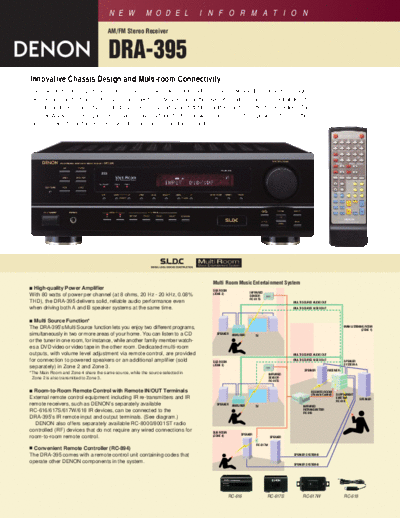

Image preview - the first page of the document
>> Download Описание DRA-395 documenatation <<
Text preview - extract from the document
N E W M O D E L I N F O R M A T I O N
AM/FM Stereo Receiver
DRA-395
Innovative Chassis Design and Multi-room Connectivity
The DRA-395 is a high-quality stereo receiver that combines real versatility with acclaimed DENON audio technology. The Signal
Level Divided Construction (SLDC) chassis, developed by DENON, is used in the DRA-395's audio circuit to ensure that delicate
musical signals from such advanced digital sources as DVD and CD are faithfully amplified and transmitted to the speakers. The
amp's 80W + 80W of power provides abundant support not only for two speakers in one room but for speaker systems in other
rooms as well, utilizing the DRA-395's versatile multi-room connection capabilities.
Multi Room Music Entertainment System
sHigh-quality Power Amplifier SUB ROOM
INFRARED
With 80 watts of power per channel (at 8 ohms, 20 Hz - 20 kHz, 0.08% (ZONE 2)
SENSOR
RC-617S
THD), the DRA-395 delivers solid, reliable audio performance even MULTI SOURCE AUDIO OUT
when driving both A and B speaker systems at the same time. MULTI SOURCE VIDEO OUT
s Multi Source Function*
MAIN LISTENING ROOM
The DRA-395's Multi Source function lets you enjoy two different programs, (ZONE 1)
simultaneously in two or more areas of your home. You can listen to a CD SPEAKER AMPLIFIER TV
or the tuner in one room, for instance, while another family member watch-
es a DVD video or video tape in the other room. Dedicated multi-room
outputs, with volume level adjustment via remote control, are provided MULTI SOURCE AUDIO OUT
for connection to powered speakers or an additional amplifier (sold SUB ROOM
MULTI SOURCE VIDEO OUT SPEAKER
(ZONE 3) SYSTEM-A
separately) in Zone 2 and Zone 3.
SPEAKER RECEIVER
*The Main Room and Zone 4 share the same source, while the source selected in INFRARED
Zone 2 is also transmitted to Zone 3. SENSOR
RC-617S
s Room-to-Room Remote Control with Remote IN/OUT Terminals ROOM TO ROOM
(Remote Control) SUPPLEMENT
External remote control equipment including IR re-transmitters and IR EMITTER
SPEAKER
RC-618
remote receivers, such as DENON's separately available SPEAKER AMPLIFIER TV INFRARED
RC-616/617S/617W/618 IR devices, can be connected to the RETRANSMITTER
RC-616
DRA-395's IR remote input and output terminals. (See diagram.)
DENON also offers separately available RC-8000/8001ST radio
controlled (RF) devices that do not require any wired connections for SUB ROOM
(ZONE 4) SPEAKER
room-to-room remote control. SPEAKER
RC-617W
s Convenient Remote Controller (RC-894)
The DRA-395 comes with a remote control unit containing codes that SPEAKER SYSTEM-B
operate other DENON components in the system.
SPEAKER SYSTEM-B
RC-616 RC-617S RC-617W RC-618
N E W M O D E L I N F O R M A T I O N DRA-395
s Signal Level Divided Construction Chassis Design s Video Select Function
The circuit handling low-level signals has been divided into separate Allows you to select a video source, and then select an alternate audio
blocks to ensure that influences from these signals on each other are input source, ideal for simulcasting, as well as watching TV sports
held to an absolute minimum. This new chassis design, known as the programs while listening to radio commmentary.
Signal Level Divided Construction (SLDC), preserves the purity of the
signal, allowing it to be reproduced with much greater fidelity and clarity. s 40-Station AM/FM Random Preset Memory Tuning
SIGNAL LEVEL DIVIDED CONSTRUCTION (S.L.D.C) s Auto Preset Memory
FM stations can be searched by the tuner, and automatically stored in the
TUNER preset memory up to 40 stations, ideal for locales with many FM stations.
BLOCK
POWER
POWER AMP s Sophisticated Tuning Circuit Design
TRANS BLOCK PRE
AMP Thanks to the PLL circuit design, reception drift is a thing of the past.
BLOCK
The DRA-395 also has a 4-pole varactor diode in its front end to guarantee
accurate input of station frequencies.
LOGIC CONTROL BLOCK
