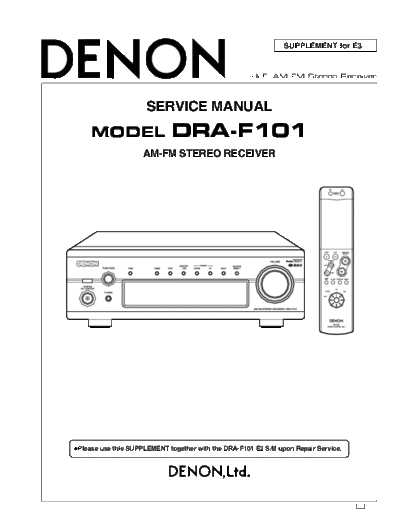

Image preview - the first page of the document
>> Download SUPPLEMENT for E3 DRA-F101 documenatation <<
Text preview - extract from the document
SUPPLEMENT for E3
Hi-Fi AM-FM Stereo Receiver
SERVICE MANUAL
MODEL DRA-F101
AM-FM STEREO RECEIVER
Please use this SUPPLEMENT together with the DRA-F101 E2 S/M upon Repair Service.
PARTS LIST OF P.W.B. UNIT ASS'Y
DRA-F101 E2 DRA-F101 E3
1U-3458 DRA P.W.B. UNIT ASSY 1U-3458 B DRA P.W.B. UNIT ASSY
Ref No. Part No. Part Name Ref No. Parts Number Parts Name
00D 1U- 3458 DRA PWB UNIT 00D 1U- 3458 B DRA PWB UNIT
R-118 No used R-118 00D 242 2009 001 RC1/2 225K B(UL)
R-401 00D 241 2399 938 RD14B2E222JT(5) R-401 No parts number JUMPER
R-402 00D 241 2399 938 RD14B2E222JT(5) R-402 No parts number JUMPER
R-611 00D 247 2007 943 RM73B--102JT R-611 No used
R-971 No used R-971 00D 247 2011 942 RM73B--473JT
R-974 No used R-974 00D 247 2011 942 RM73B--473JT
R-978 No used R-978 00D 247 2011 942 RM73B--473JT
R-972 00D 247 2011 942 RM73B--473JT R-972 No used
R-973 00D 247 2011 942 RM73B--473JT R-973 No used
R-977 00D 247 2011 942 RM73B--473JT R-977 No used
C-402 00D 257 0506 977 CC73CH1H121JT C-402 No used
C-404 00D 255 1273 957 CQ93M1H271KT(B) C-404 00D 255 1273 928 CQ93M1H151KT(B)
C-405 00D 257 0506 977 CC73CH1H121JT C-405 No used
C-407 00D 255 1273 957 CQ93M1H271KT(B) C-407 00D 255 1273 928 CQ93M1H151KT(B)
C-408 00D 257 0506 951 CC73CH1H101JT C-408 No used
C-411 00D 257 0506 951 CC73CH1H101JT C-411 No used
C-604 00D 257 0507 976 CC73CH1H331JT C-604 No used
C-605 00D 257 0511 904 CK73F1H103ZT C-605 No used
C-606 00D 254 4538 900 CE04W1C100MT C-606 No used
SMG/RE3
C-607 00D 257 0511 904 CK73F1H103ZT C-607 No used
C-608 00D 254 4522 903 CE04W1V4R7MT C-608 No used
SMG/RE3
C-609 00D 257 0508 933 CC73CH1H561JT C-609 No used
C-610 00D 257 0504 908 CC73CH1H220JT C-610 No used
C-611 00D 257 0504 908 CC73CH1H220JT C-611 No used
TR-604 00D 273 0384 900 2SC2412KT96(S) TR-604 No used
IC-601 00D 262 2547 907 LC72720NM IC-601 No used
L-401 00D 235 9003 002 FTZ CHOKE COIL L-401 No used
L-402 00D 235 9003 002 FTZ CHOKE COIL L-402 No used
L-601 00D 235 0060 918 INDUCTOR(4R7)ST L-601 No used
JK-101 00D 203 3961 004 1P AC OUTLET(E2) JK-101 00D 203 3990 004 AC OUTLET(E3/J)
X-601 00D 399 0178 007 X-TAL(4.332MHZ) X-601 No used
F-101 00D 206 1075 014 FUSE (1.25A) F-101 00D 206 1094 040 FUSE(233)T2.5AL125V
F-102 00D 206 1075 014 FUSE (1.25A) F-102 00D 206 1094 079 FUSE(233)T5AL125V
00D 513 3694 087 FUSE 00D 513 3843 032 FUSE LABEL(2.5A)
LABEL(T1.25AL)
00D 513 3694 087 FUSE 00D 513 3843 029 FUSE LABEL(5A)
LABEL(T1.25AL)
No used 00D 513 3859 000 FUSE CAUTION LABEL
No used 00D 513 3862 000 ICP CAUTION LABEL
T-101 00D 233 6383 004 POWER T-101 00D 233 6384 003 POWER
TRANS(SUB/E2) TRANS(SUB/E3)
T-102 00D 233 6423 100 POWER TRANS T-102 00D 233 6431 008 POWER TRANS (E3)
(E2/EK)
Page 1/2
PART LIST OF EXPLODED VIEW
DRA-F101 E2 DRA-F101 E3
Ref
Part No. Part Name Ref No. Parts Number Parts Name
No.
19 00D 105 1409 112 BACK PANEL (DRA) 19 00D 105 1409 125 BACK PANEL (DRA)
20 00D 216 0114 009 AM FM TUNER(E2) 20 00D 216 0109 001 TUNER PACK
(TFCE1U5)
25 00D 206 2089 106 AC CORD W/CON.E2 25 00D 206 2160 009 AC CORD VH N/I E3
29 00D144 2804 313 FRONT PANEL (DRA) 29 00D 144 2804 300 FRONT PANEL (DRA)
44 00D 513 3807 007 RATING SHEET 44 00D 513 3860 002 RATING SHEET (E3)
(E2/EK)
45 00D 513 1642 002 NO. SHEET 45 No used
46 00D 477 0096 007 PUSH RIVET 46 No used
47 00D 414 0974 005 SAFETY COVER 47 No used
48 00D 449 0139 105 COVER HOLDER 48 No used
PARTS LIST OF PACKING & ACCESSORIES
DRA-F101 E2 DRA-F101 E3
Ref
Part No. Part Name Ref No. Parts Number Parts Name
No.
202 00D 511 3916 002 INST.MANUAL(E2) 202 00D 511 3967 103 INST.MANUAL(E3)
FM ANT ASS
207 00D 395 0026 005 FM ANT. WIRE 207 00D 395 0028 003
Y(F/WELT)
209 00D 501 2213 039 CARTON CASE (EX) 209 00D 501 2213 055 CARTON CASE (EX)
215 00D 517 1463 005 E2 POS LABEL 215 00D 517 1469 009 UPC LABEL
No used 00D 513 3632 007 CAUTION LABEL
Page 2/2
