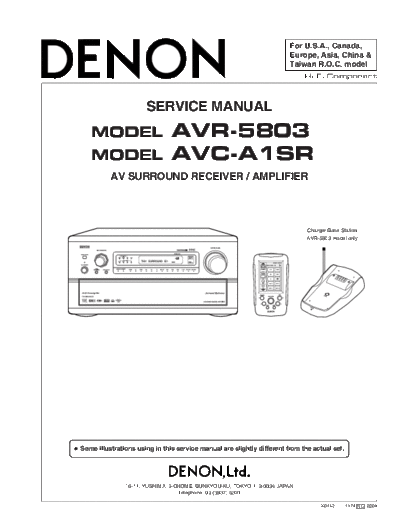

Image preview - the first page of the document



>> Download Схема AVR-5803 & AVC-A1SR documenatation <<

Text preview - extract from the document

                                                                        For U.S.A., Canada,
                                                                        Europe, Asia, China &
                                                                        Taiwan R.O.C. model
                                                                             Hi-Fi Component



                      SERVICE MANUAL
   MODEL                       AVR-5803
   MODEL                       AVC-A1SR
          AV SURROUND RECEIVER / AMPLIFIER



                                                                              Charger Base Station
                                                                              AVR-5803 model only




Some illustrations using in this service manual are slightly different from the actual set.




               16-11, YUSHIMA 3-CHOME, BUNKYOU-KU, TOKYO 113-0034 JAPAN
                                 Telephone: 03 (3837) 5321

                                                                                   X0142      1174 NC 0204
                                                                                                                           AVR-5803/AVC-A1SR




    SAFETY PRECAUTIONS
    The following check should be performed for the continued protection of the customer and service technician.

    LEAKAGE CURRENT CHECK
    Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis
    resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the
    power cord is less than 460 kohms, the unit is defective.


SPECIFICATIONS
Audio Section
    Power amplifier:
       Rated output:                                                 Stereo (2 ch driven)
       (All properties shown are only for the                          170 W + 170 W (8 /ohms, 20 Hz ~ 20 kHz with 0.05 % T.H.D.)
       power amplifer stage.)                                          200 W + 200 W (6 /ohms, 20 Hz ~ 20 kHz with 0.05 % T.H.D.)
       Dynamic power:                                                190 W
