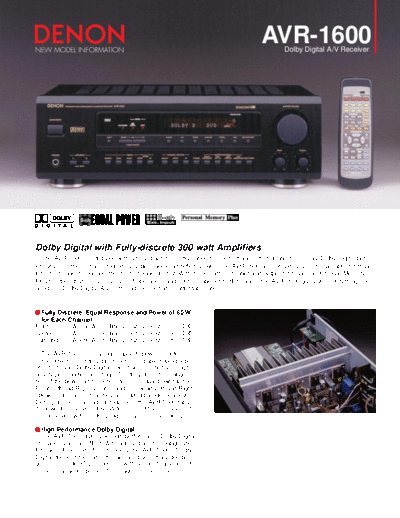

Image preview - the first page of the document
>> Download Описание AVR-1600 documenatation <<
Text preview - extract from the document
NEW MODEL INFORMATION
AVR-1600 Dolby Digital A/V Receiver
Dolby Digital with Fully-discrete 300 watt Amplifiers
The AVR-1600 is equipped with a fully discrete configuration for each channel that supports not only Dolby Digital but
lets you use the unit as a high-quality pure audio amplifier as well. The AVR-1600 also provides an external input terminal
for a 6-channel to support the multi-channel format. With its rich array of input and output terminals, a Personal Memory
Plus function that enhances ease of operation, and overall superior performance, the AVR-1600 gives you everything you
need in a Dolby Digital A/V surround receiver at an affordable price.
s Fully Discrete, Equal Response and Power of 60 W
for Each Channel
Front 60 W + 60 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
Center 60 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
Surround 60 W + 60 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
The AVR-1600 uses a high-capacity power transformer
in the power circuit to support not only stable reproduction
of 5.1-channel Dolby Digital sound sources but also high-
quality pure audio recordings. The fully discrete configura-
tion of the power amp section delivers equal power to the
Front Left and Right, Center, and Surround Left and Right
speakers to ensure that they all respond at identical levels.
During surround sound reproduction, the AVR-1600 taps
its powerful reserves of 60 W for each of the 5 channels to
surround you with a refreshingly clean, realistic sound.
s High-Performance Dolby Digital
The AVR-1600 gives you high-performance Dolby Digital
at a price you can afford. With a fully discrete configuration
for each of the unit's five channels, the AVR-1600's Dolby
Digital decoder recreates the sound space of a video pro-
gram in real-life 3D perspective, with an exciting sense of
motion that accompanies the images on the screen.
s 6-Channel External Input, for Multi-Channel Sound s Personal Memory Plus, for Easy Operation
The AVR-1600 provides an external terminal for a 6-chan- The AVR-1600 includes the Personal Memory Plus func-
nel to support 5.1-channel playback of dts, DVD-Audio, and tion that automatically remembers the surround mode you
other multi-channel sources. 5.1-channel audio sources last used for each program source, so that you do not need
recorded in the dts format can be enjoyed when a dts to select the mode again for that program.
decoder is connected to the AVR-1600. You might just want
to enjoy Dolby Digital programs at first, but the AVR-1600 s Versatile Speaker Terminals
offers you the ability to easily upgrade your system so that The Binding Posts are used for the Front L/R and Center
you can dive into the excitement of fully discrete 5.1-channel speaker terminals.
dts digital sources as well if you wish.
s Acclaimed Customization Feature
s Input/Output Terminals for Every A/V System As with all of DENON's high-grade A/V amplifiers, the
AVR-1600 lets you adjust delay times and other parameters
q Audio Inputs so that you can customize the performance of the AVR-1600
1 Digital (Optical) Input.. OPTICAL to suit your own home theater and enhance operating
1 Digital (Coaxial) Input.. COAXIAL ease. The adjustments are easy to make via a dialog format
7 Analog Inputs ............. PHONO, CD, TUNER, DVD/VDP, on the fluorescent display on the front panel.
TV/DBS, VCR, MD/TAPE
6 Analog EXT. Inputs ..... FRONT L/R, CENTER, s Frequency Synthesis Tuning
SURROUND L/R, SUBWOOFER q 40-Station AM/FM Random Preset Memory Tuning
q Auto Preset Memory
q Audio Outputs
4 Analog Pre Outputs.... FRONT L/R, CENTER, SUBWOOFER s Other Features
2 Analog Rec Outputs ... VCR, MD/TAPE q Tone Control
q Two Switched AC Outlets
q Video Inputs q All Channel Level Control
3 Composite Inputs ....... DVD/VDP, TV/DBS, VCR
q Video Outputs Specifications
2 Composite Outputs..... VCR, MONITOR
s Power Amplifier Section
q Video Select Switch Rated output *THD figures are power amp stage values.
Front........................................ 60 W + 60 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
This function lets you select video sources independently
Center..................................... 60 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
of the audio sources. Surround ................................ 60 W + 60 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
s Preamplifier Section
s Pre Outputs for System Upgrading Input sensitivity/Impedance
The pre-out terminals on the AVR-1600 is offered for PHONO(MM).................. 2.5 mV/47 kohms
Front, Center and Mono (Subwoofer) channels. A separate CD, DVD/VDP, TV/DBS, VCR, MD/TAPE,
power amp can be connected to these terminals to FRONT L/R, CENTER, SURROUND L/R,
upgrade your system. SUBWOOFER................ 200 mV/47 kohms
Output level/Load Impedance
s 11 Surround Playback Modes FRONT L/R, CENTER,
SUBWOOFER................ 1.2 V/10 kohms
The AVR-1600 is equipped with 11 surround modes to
VCR, MD/TAPE,
help you obtain the optimum effects for the program MONITOR ...................... 200 mV/47 kohms
sources you are playing. The Dolby Pro Logic modes are RIAA deviation.................... ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
