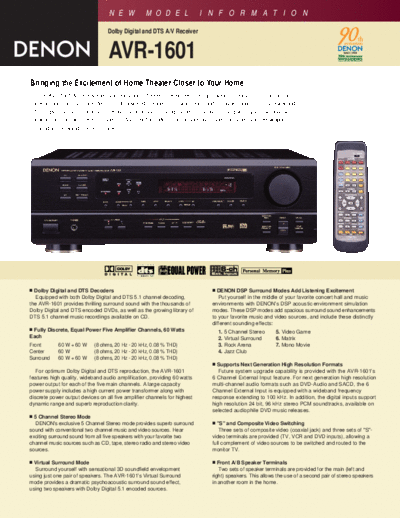

Image preview - the first page of the document
>> Download Описание AVR-1601 documenatation <<
Text preview - extract from the document
N E W M O D E L I N F O R M A T I O N
Dolby Digital and DTS A/V Receiver
AVR-1601
Bringing the Excitement of Home Theater Closer to Your Home
The AVR-1601 A/V receiver lets you enjoy home theater entertainment through a wealth of easy-to-use functions and
superior sound quality. It provides five high-powered channels of 60 watts each and of course supports Dolby Digital and
DTS, to give you the scintillating experience of cinematic surround sound in your own home. Even if you have only two
speakers, one for each stereo channel, the AVR-1601 includes a Virtual Surround mode that still lets you feel wrapped up
in sound as you would in a real theater.
s Dolby Digital and DTS Decoders s DENON DSP Surround Modes Add Listening Excitement
Equipped with both Dolby Digital and DTS 5.1 channel decoding, Put yourself in the middle of your favorite concert hall and music
the AVR-1601 provides thrilling surround sound with the thousands of environments with DENON's DSP acoustic environment simulation
Dolby Digital and DTS encoded DVDs, as well as the growing library of modes. These DSP modes add spacious surround sound enhancements
DTS 5.1 channel music recordings available on CD. to your favorite music and video sources, and include these distinctly
different sounding effects:
s Fully Discrete, Equal Power Five Amplifier Channels, 60 Watts
1. 5 Channel Stereo 5. Video Game
Each 2. Virtual Surround 6. Matrix
Front 60 W + 60 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD) 3. Rock Arena 7. Mono Movie
Center 60 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD) 4. Jazz Club
Surround 60 W + 60 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
s Supports Next Generation High Resolution Formats
For optimum Dolby Digital and DTS reproduction, the AVR-1601 Future system upgrade capability is provided with the AVR-1601's
features high quality, wideband audio amplification, providing 60 watts 6 Channel External Input feature. For next generation high resolution
power output for each of the five main channels. A large capacity multi-channel audio formats such as DVD-Audio and SACD, the 6
power supply includes a high current power transformer along with Channel External Input is equipped with a wideband frequency
discrete power output devices on all five amplifier channels for highest response extending to 100 kHz. In addition, the digital inputs support
dynamic range and superb reproduction clarity. high resolution 24 bit, 96 kHz stereo PCM soundtracks, available on
selected audiophile DVD music releases.
s 5 Channel Stereo Mode
DENON's exclusive 5 Channel Stereo mode provides superb surround s "S" and Composite Video Switching
sound with conventional two channel music and video sources. Hear Three sets of composite video (coaxial jack) and three sets of "S"-
exciting surround sound from all five speakers with your favorite two video terminals are provided (TV, VCR and DVD inputs), allowing a
channel music sources such as CD, tape, stereo radio and stereo video full complement of video sources to be switched and routed to the
sources. monitor TV.
s Virtual Surround Mode s Front A/B Speaker Terminals
Surround yourself with sensational 3D soundfield envelopment Two sets of speaker terminals are provided for the main (left and
using just one pair of speakers. The AVR-1601's Virtual Surround right) speakers. This allows the use of a second pair of stereo speakers
mode provides a dramatic psychoacoustic surround sound effect, in another room in the home.
using two speakers with Dolby Digital 5.1 encoded sources.
N E W M O D E L I N F O R M A T I O N AVR-1601
s Versatile Input & Output Terminals s Acclaimed Customization Feature
For maximum system flexibility, the AVR-1601 is provided with an As with all of DENON's high-grade A/V amplifiers, the AVR-1601 lets
abundance of audio and video input and output terminals. Two you adjust delay times and other parameters so that you can customize
assignable digital inputs, one optical and one coaxial, can be config- the performance of the AVR-1601 to suit your own home theater and
ured according to your system's component output capabilities. The enhance operating ease. The adjustments are easy to make via a dialog
AVR-1601 provides five sets of analog inputs, along with three sets of format on the fluorescent display on the front panel.
video inputs, for total system connection flexibility.
s Frequency Synthesis Tuning
