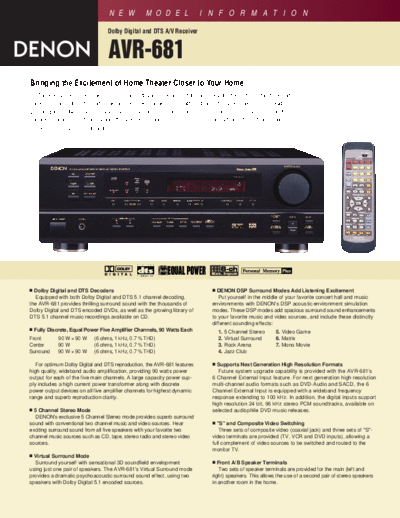

Image preview - the first page of the document
>> Download Описание AVR-681 documenatation <<
Text preview - extract from the document
N E W M O D E L I N F O R M A T I O N
Dolby Digital and DTS A/V Receiver
AVR-681
Bringing the Excitement of Home Theater Closer to Your Home
The AVR-681 A/V receiver lets you enjoy home theater entertainment through a wealth of easy-to-use functions and
superior sound quality. It provides five high-powered channels of 90 watts each and of course supports Dolby Digital and
DTS, to give you the scintillating experience of cinematic surround sound in your own home. Even if you have only two
speakers, one for each stereo channel, the AVR-681 includes a Virtual Surround mode that still lets you feel wrapped up in
sound as you would in a real theater.
s Dolby Digital and DTS Decoders s DENON DSP Surround Modes Add Listening Excitement
Equipped with both Dolby Digital and DTS 5.1 channel decoding, Put yourself in the middle of your favorite concert hall and music
the AVR-681 provides thrilling surround sound with the thousands of environments with DENON's DSP acoustic environment simulation
Dolby Digital and DTS encoded DVDs, as well as the growing library of modes. These DSP modes add spacious surround sound enhancements
DTS 5.1 channel music recordings available on CD. to your favorite music and video sources, and include these distinctly
different sounding effects:
s Fully Discrete, Equal Power Five Amplifier Channels, 90 Watts Each 1. 5 Channel Stereo 5. Video Game
Front 90 W + 90 W (6 ohms, 1 kHz, 0.7 % THD) 2. Virtual Surround 6. Matrix
Center 90 W (6 ohms, 1 kHz, 0.7 % THD) 3. Rock Arena 7. Mono Movie
Surround 90 W + 90 W (6 ohms, 1 kHz, 0.7 % THD) 4. Jazz Club
For optimum Dolby Digital and DTS reproduction, the AVR-681 features s Supports Next Generation High Resolution Formats
high quality, wideband audio amplification, providing 90 watts power Future system upgrade capability is provided with the AVR-681's
output for each of the five main channels. A large capacity power sup- 6 Channel External Input feature. For next generation high resolution
ply includes a high current power transformer along with discrete multi-channel audio formats such as DVD-Audio and SACD, the 6
power output devices on all five amplifier channels for highest dynamic Channel External Input is equipped with a wideband frequency
range and superb reproduction clarity. response extending to 100 kHz. In addition, the digital inputs support
high resolution 24 bit, 96 kHz stereo PCM soundtracks, available on
s 5 Channel Stereo Mode selected audiophile DVD music releases.
DENON's exclusive 5 Channel Stereo mode provides superb surround
sound with conventional two channel music and video sources. Hear s "S" and Composite Video Switching
exciting surround sound from all five speakers with your favorite two Three sets of composite video (coaxial jack) and three sets of "S"-
channel music sources such as CD, tape, stereo radio and stereo video video terminals are provided (TV, VCR and DVD inputs), allowing a
sources. full complement of video sources to be switched and routed to the
monitor TV.
s Virtual Surround Mode
Surround yourself with sensational 3D soundfield envelopment s Front A/B Speaker Terminals
using just one pair of speakers. The AVR-681's Virtual Surround mode Two sets of speaker terminals are provided for the main (left and
provides a dramatic psychoacoustic surround sound effect, using two right) speakers. This allows the use of a second pair of stereo speakers
speakers with Dolby Digital 5.1 encoded sources. in another room in the home.
N E W M O D E L I N F O R M A T I O N AVR-681
s Versatile Input & Output Terminals s Acclaimed Customization Feature
For maximum system flexibility, the AVR-681 is provided with an As with all of DENON's high-grade A/V amplifiers, the AVR-681 lets
abundance of audio and video input and output terminals. Two assignable you adjust delay times and other parameters so that you can customize
digital inputs, one optical and one coaxial, can be configured according to the performance of the AVR-681 to suit your own home theater and
your system's component output capabilities. The AVR-681 provides five enhance operating ease. The adjustments are easy to make via a dialog
sets of analog inputs, along with three sets of video inputs, for total system format on the fluorescent display on the front panel.
connection flexibility.
s Frequency Synthesis Tuning
