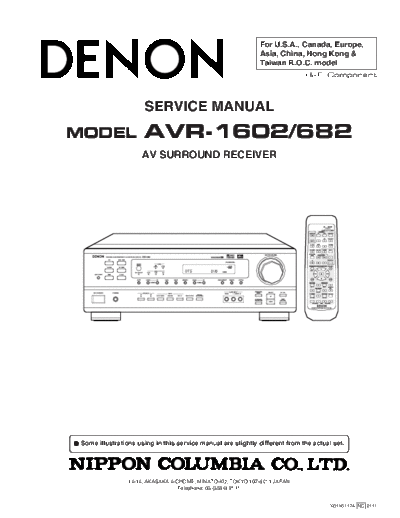

Image preview - the first page of the document
>> Download Схема 3 AVR-1602 & 682 documenatation <<
Text preview - extract from the document
For U.S.A., Canada, Europe,
Asia, China, Hong Kong &
Taiwan R.O.C. model
Hi-Fi Component
SERVICE MANUAL
MODEL AVR-1602/682
AV SURROUND RECEIVER
Some illustrations using in this service manual are slightly different from the actual set.
14-14, AKASAKA 4-CHOME, MINATO-KU, TOKYO 107-8011 JAPAN
Telephone: 03 (3584) 8111
X0116 1174 NC 0111
AVR-1602/682
SAFETY PRECAUTIONS
The following check should be performed for the continued protection of the customer and service technician.
LEAKAGE CURRENT CHECK
Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis
resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the
power cord is less than 460 kohms, the unit is defective.
SPECIFICATIONS
Audio Section
Power Amplifier
Rated output: Front: 70W+70W (8/ohms, 20Hz~20kHz with 0.08% T.H.D )
100W+100W (6/ohms, 1kHz with 0.7% T.H.D ) (U.S.A., Canada & Europe Models)
110W+110W (6/ohms, EIAJ ) (Asia Model)
Center: 70W (8/ohms, 20Hz~20kHz with 0.08% T.H.D )
100W (6/ohms, 1kHz with 0.7% T.H.D ) (U.S.A., Canada & Europe Models)
110W (6/ohms, EIAJ ) (Asia Model)
Surround: 70W+70W (8/ohms, 20Hz~20kHz with 0.08% T.H.D )
100W+100W (6/ohms, 1kHz with 0.7% T.H.D ) (U.S.A., Canada & Europe Models)
110W+110W (6/ohms, EIAJ ) (Asia Model)
Output terminals: Front: A or B 6 to 16W/ohms
A+B 12 to 16W/ohms
Center/Surround: 6 to 16W/ohms
Analog
LINE input - PRE OUT
Input sensitivity/input impedance: 200mV/47k/kohms
Frequency response: 10Hz~100kHz: +1, -3dB (TONE DEFEAT ON)
S/N ratio: 98dB (IHF-A weighted) (TONE DEFEAT ON)
Video Section
Standard video jacks
Input/output level and impedance: 1Vp-p,75/ohms
Frequency response: 5Hz~10MHz +1, -3dB
S-video jacks (U.S.A., Canada & Asia Models)
Input/output level and impedance: Y(brightness)signal 1Vp-p, 75/ohms
C(color)signal 0.286Vp-p, 75/ohms
Frequency response: 5Hz~10MHz: +1, -3dB
Tuner section
