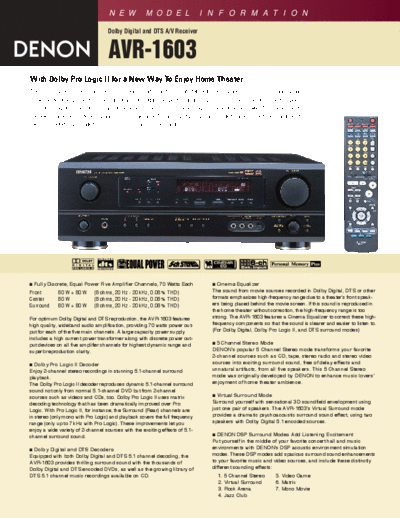

Image preview - the first page of the document
>> Download Описание AVR-1603 documenatation <<
Text preview - extract from the document
N E W M O D E L I N F O R M A T I O N
Dolby Digital and DTS A/V Receiver
AVR-1603
With Dolby Pro Logic II for a New Way To Enjoy Home Theater
The AVR-1603 A/V receiver with Dolby Pro Logic II and powerful output of 80 watts per channel lets you enjoy multi-channel
home theater entertainment in a new dimension. In addition to Dolby Digital and DTS, you can now also enjoy existing Dolby
Surround programs and conventional stereo sources such as CD in convincing 5.1-channel likeness. And if you have only two
speakers, one for each stereo channel, you can use the AVR-1603's Virtual Surround mode to give yourself the sensation of
being completely surrounded by sound as you would in a real theater.
Fully Discrete, Equal Power Five Amplifier Channels, 70 Watts Each Cinema Equalizer
Front 80 W + 80 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD) The sound from movie sources recorded in Dolby Digital, DTS or other
Center 80 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD) formats emphasizes high-frequency range due to a theater's front speak-
Surround 80 W + 80 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD) ers being placed behind the movie screen. If this sound is reproduced in
the home theater without correction, the high-frequency range is too
For optimum Dolby Digital and DTS reproduction, the AVR-1603 features strong. The AVR-1603 features a Cinema Equalizer to correct these high-
high quality, wideband audio amplification, providing 70 watts power out- frequency components so that the sound is clearer and easier to listen to.
put for each of the five main channels. A large capacity power supply (For Dolby Digital, Dolby Pro Logic II, and DTS surround modes)
includes a high current power transformer along with discrete power out-
5 Channel Stereo Mode
put devices on all five amplifier channels for highest dynamic range and
superb reproduction clarity. DENON's popular 5 Channel Stereo mode transforms your favorite
2-channel sources such as CD, tape, stereo radio and stereo video
Dolby Pro Logic II Decoder sources into exciting surround sound, free of delay effects and
Enjoy 2-channel stereo recordings in stunning 5.1-channel surround unnatural artifacts, from all five speakers. This 5 Channel Stereo
playback. mode was originally developed by DENON to enhance music lovers'
The Dolby Pro Logic II decoder reproduces dynamic 5.1-channel surround enjoyment of home theater ambience.
sound not only from normal 5.1-channel DVD but from 2-channel
Virtual Surround Mode
sources such as videos and CDs, too. Dolby Pro Logic II uses matrix
decoding technology that has been dramatically improved over Pro Surround yourself with sensational 3D soundfield envelopment using
Logic. With Pro Logic II, for instance, the Surround (Rear) channels are just one pair of speakers. The AVR-1603's Virtual Surround mode
in stereo (only mono with Pro Logic) and playback covers the full frequency provides a dramatic psychoacoustic surround sound effect, using two
range (only up to 7 kHz with Pro Logic). These improvements let you speakers with Dolby Digital 5.1 encoded sources.
enjoy a wide variety of 2-channel sources with the exciting effects of 5.1-
DENON DSP Surround Modes Add Listening Excitement
channel surround sound.
Put yourself in the middle of your favorite concert hall and music
Dolby Digital and DTS Decoders environments with DENON's DSP acoustic environment simulation
Equipped with both Dolby Digital and DTS 5.1 channel decoding, the modes. These DSP modes add spacious surround sound enhancements
AVR-1603 provides thrilling surround sound with the thousands of to your favorite music and video sources, and include these distinctly
Dolby Digital and DTS encoded DVDs, as well as the growing library of different sounding effects:
DTS 5.1 channel music recordings available on CD. 1. 5 Channel Stereo 5. Video Game
2. Virtual Surround 6. Matrix
3. Rock Arena 7. Mono Movie
4. Jazz Club
N E W M O D E L I N F O R M A T I O N AVR-1603
Versatile Input & Output Terminals codes from other manufacturers. The most frequently used buttons are
