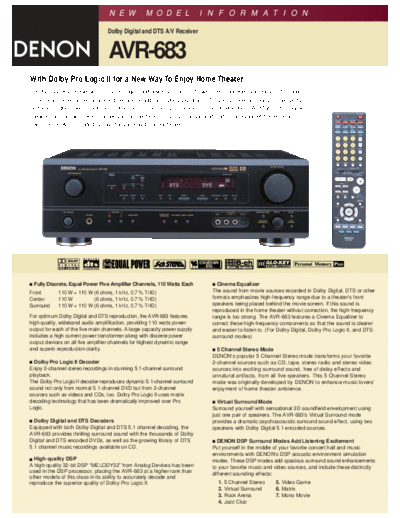

Image preview - the first page of the document
>> Download Описание AVR-683 documenatation <<
Text preview - extract from the document
N E W M O D E L I N F O R M A T I O N
Dolby Digital and DTS A/V Receiver
AVR-683
With Dolby Pro Logic II for a New Way To Enjoy Home Theater
The AVR-683 A/V receiver with Dolby Pro Logic II and powerful output of 110 watts per channel lets you enjoy multi-channel
home theater entertainment in a new dimension. In addition to Dolby Digital and DTS, you can now also enjoy existing Dolby
Surround programs and conventional stereo sources such as CD in convincing 5.1-channel likeness. And if you have only two
speakers, one for each stereo channel, you can use the AVR-683's Virtual Surround mode to give yourself the sensation of
being completely surrounded by sound as you would in a real theater.
Fully Discrete, Equal Power Five Amplifier Channels, 110 Watts Each Cinema Equalizer
Front 110 W + 110 W (6 ohms, 1 kHz, 0.7 % THD) The sound from movie sources recorded in Dolby Digital, DTS or other
Center 110 W (6 ohms, 1 kHz, 0.7 % THD) formats emphasizes high-frequency range due to a theater's front
Surround 110 W + 110 W (6 ohms, 1 kHz, 0.7 % THD) speakers being placed behind the movie screen. If this sound is
reproduced in the home theater without correction, the high-frequency
For optimum Dolby Digital and DTS reproduction, the AVR-683 features range is too strong. The AVR-683 features a Cinema Equalizer to
high quality, wideband audio amplification, providing 110 watts power correct these high-frequency components so that the sound is clearer
output for each of the five main channels. A large capacity power supply and easier to listen to. (For Dolby Digital, Dolby Pro Logic II, and DTS
includes a high current power transformer along with discrete power surround modes)
output devices on all five amplifier channels for highest dynamic range
and superb reproduction clarity. 5 Channel Stereo Mode
DENON's popular 5 Channel Stereo mode transforms your favorite
Dolby Pro Logic II Decoder 2-channel sources such as CD, tape, stereo radio and stereo video
Enjoy 2-channel stereo recordings in stunning 5.1-channel surround sources into exciting surround sound, free of delay effects and
playback. unnatural artifacts, from all five speakers. This 5 Channel Stereo
The Dolby Pro Logic II decoder reproduces dynamic 5.1-channel surround mode was originally developed by DENON to enhance music lovers'
sound not only from normal 5.1-channel DVD but from 2-channel enjoyment of home theater ambience.
sources such as videos and CDs, too. Dolby Pro Logic II uses matrix
decoding technology that has been dramatically improved over Pro Virtual Surround Mode
Logic. Surround yourself with sensational 3D soundfield envelopment using
just one pair of speakers. The AVR-683's Virtual Surround mode
Dolby Digital and DTS Decoders provides a dramatic psychoacoustic surround sound effect, using two
Equipped with both Dolby Digital and DTS 5.1 channel decoding, the speakers with Dolby Digital 5.1 encoded sources.
AVR-683 provides thrilling surround sound with the thousands of Dolby
Digital and DTS encoded DVDs, as well as the growing library of DTS DENON DSP Surround Modes Add Listening Excitement
5.1 channel music recordings available on CD. Put yourself in the middle of your favorite concert hall and music
environments with DENON's DSP acoustic environment simulation
High-quality DSP modes. These DSP modes add spacious surround sound enhancements
A high-quality 32-bit DSP "MELODY32" from Analog Devices has been to your favorite music and video sources, and include these distinctly
used in the DSP processor, placing the AVR-683 at a higher rank than
different sounding effects:
other models of this class in its ability to accurately decode and
reproduce the superior quality of Dolby Pro Logic II. 1. 5 Channel Stereo 5. Video Game
2. Virtual Surround 6. Matrix
3. Rock Arena 7. Mono Movie
4. Jazz Club
N E W M O D E L I N F O R M A T I O N AVR-683
Versatile Input & Output Terminals Specifications
