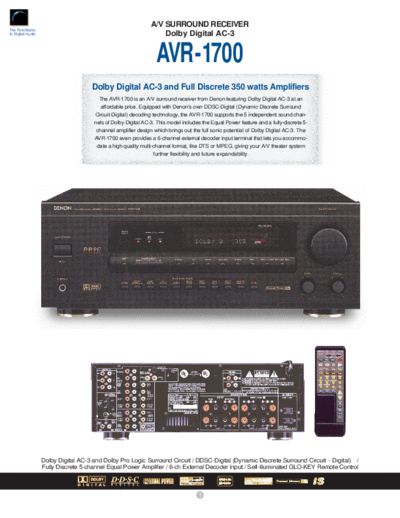

Image preview - the first page of the document
>> Download Описание AVR-1700 documenatation <<
Text preview - extract from the document
A/V SURROUND RECEIVER
The First Name
In Digital Audio Dolby Digital AC-3
AVR-1700
Dolby Digital AC-3 and Full Discrete 350 watts Amplifiers
The AVR-1700 is an A/V surround receiver from Denon featuring Dolby Digital AC-3 at an
affordable price. Equipped with Denon's own DDSC-Digital (Dynamic Discrete Surround
Circuit-Digital) decoding technology, the AVR-1700 supports the 5 independent sound chan-
nels of Dolby Digital AC-3. This model includes the Equal Power feature and a fully-discrete 5-
channel amplifier design which brings out the full sonic potential of Dolby Digital AC-3. The
AVR-1700 even provides a 6-channel external decoder input terminal that lets you accommo-
date a high quality multi-channel format, like DTS or MPEG, giving your A/V theater system
further flexibility and future expandability.
Dolby Digital AC-3 and Dolby Pro Logic Surround Circuit / DDSC-Digital (Dynamic Discrete Surround Circuit - Digital) /
Fully Discrete 5-channel Equal Power Amplifier / 6-ch External Decoder Input / Self-illuminated GLO-KEY Remote Control
1
The First Name The Full Discrete 5-channel Equal Power Amplifier
In Digital Audio
AVR-1700 offers a full discrete 5-channel power amplifier to support the dynamic performance of the Dolby Digital AC-3
AVR-1700
sound signal from DVD. All channels have an equal power output of 70 watts (8 ohms, 20Hz - 20kHz, THD 0.05%) and are
configured as independent monaural amplifiers. This construction enables the AVR-1700 to produce dynamic realism
through its high-current capability and to recreate a nuanced surround sound effect via superior channel separation.
DDSC-Digital (Dynamic Discrete Surround Circuit-Digital)
Since surround signals are all processed in the digital domain, the AVR-1700 is equipped with a newly-developed,
sophisticated, high-performance DSP circuit with "Full Block Floating Point" calculations for the Dolby Digital AC-3
and Dolby Pro Logic decoders and Surround Simulator.
Dynamic Discrete Surround Circuit-Digital Block Diagram
D/A L
D.F. Front
AC-3 D/A R
Digital Pro-Logic
Interface Decoder Master
Digital Input D/A Center
Receiver D.F. Volume
D/A Subwoofer
Control
Surround
18bit Simulator
A/D Converter D/A L
D.F. Surround
Analog Input D/A R
Digital Filter
96 kHz, 24-bit Audio D/A Converters
The AVR-1700 is equipped with 96 kHz, 24-bit audio D/A converters. The D/A converters feature 96 kHz, 24-bit audio
performance to meet the highest specification level of DVD Video.
6-channel External Decoder Input
Versatile Speaker Terminals
Binding Post Speaker Terminals for All Channels
Two Pairs of Front Speaker Terminals for Bi-Wiring
Center Speaker Terminals for Bi-Wiring
Functions for Easy Operation
Self-illuminated GLO-KEY Remote Controller with
Easy Recognition Layout
The remote controller of AVR-1700 features the "Self-illuminated GLO-KEY" for frequently used functions, and it gives you
ease of use even in the dark. It also comes with four powerful functions: System Call, System Remote Control, Pre-Memory,
and Programming. If several A/V components are connected to the AVR-1700, this single controller can operate the entire
system, even if the components are not of DENON make.
Personal Memory Plus
Dot Matrix Display
The AVR-1700 is equipped with a dot matrix display with greater resolution to ensure that operating status and other
alpha-numeric characters are easy to read.
Frequency Synthesis Tuning
40-Station AM/FM Random Preset Memory Tuning / Auto Preset Memory
Other Features
Video Select Switch / PRE OUT Terminals / All Channel Level Control / 6 Surround Modes / Tone Control / Two Switched AC Outlets
Input/Output Terminals for Every A/V System
Audio Inputs Audio Outputs Video Inputs
1 Digital (Optical) Input 4 Analog PRE Terminals 4 Composite Inputs
OPTICAL FRONT L/R, CENTER, SUBWOOFER DVD/VDP, TV/DBS, VCR-1, VCR-2/V-AUX
2 Digital (Coaxial) Inputs 3 Analog REC Terminals
COAXIAL VCR-1, VCR-2/V-AUX, MD/TAPE Video Outputs
9 Analog Inputs 3 Composite Outputs
PHONO, CD, TUNER, DVD/VDP,TV/DBS, VCR-1, VCR-2/V- VCR-1, VCR-2/V-AUX, MONITOR
AUX, MD/TAPE, and 6-channel External Decoder Input
2
Specifications
The First Name
In Digital Audio
AVR-1700 AVR-1700
Power Amplifier Section Same quality amplifier for all 5-channel
Rated output * THD figures are power amp stage values.
Front 70 W + 70 W
(8 ohms, 20Hz - 20 kHz, THD 0.05%)
Center 70 W
(8 ohms, 20Hz - 20 kHz, THD 0.05%)
Surround 70 W + 70 W
(8 ohms, 20Hz - 20 kHz, THD 0.05%)
Dynamic Power 90 W x 2 ch (8 ohms)
150 W x 2 ch (4 ohms)
2180 W x 2 ch (2 ohms)
Preamplifier Section
Input sensitivity/ Impedance PHONO (MM) : 2.5 mV/ 47 kohms
CD, DVD/ VDP, TV/ DBS, VCR-1, VCR-2/V.AUX,
MD/ TAPE, 6-ch EXT. : 200 mV/ 47 kohms
Output level/Load Impedance FRONT L/R, CENTER,
SUB WOOFER : 1.2 V/ 10 kohms
VCR-1, VCR-2/V.AUX, MD/ TAPE :
150 mV/ 47 kohms
Digital Input Optical DVD/ VDP
Coaxial CD, TV/ DBS
RF
Digital Output
