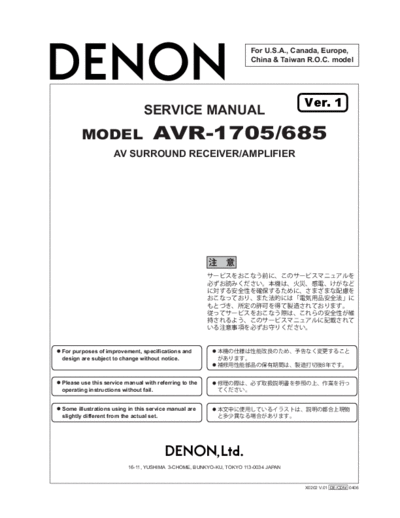

Image preview - the first page of the document



>> Download Схема 2 AVR-1705 & 685 documenatation <<

Text preview - extract from the document

                                                                     For U.S.A., Canada, Europe,
                                                                     China & Taiwan R.O.C. model




                                                                                   Ver. 1
                               SERVICE MANUAL
       MODEL                       AVR-1705/685
                   AV SURROUND RECEIVER/AMPLIFIER




For purposes of improvement, specifications and
design are subject to change without notice.



Please use this service manual with referring to the
operating instructions without fail.


Some illustrations using in this service manual are
slightly different from the actual set.




                         16-11, YUSHIMA 3-CHOME, BUNKYO-KU, TOKYO 113-0034 JAPAN



                                                                                   X0202 V.01 DE/CDM 0406
                                                                                                           AVR-1705/685




SAFETY PRECAUTIONS
The following check should be performed for the continued protection of the customer and service technician.

LEAKAGE CURRENT CHECK
Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis
resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the
power cord is less than 460 kohms, the unit is defective.




                                                                        500V


                                                                                            1M


(1)




(2)




                                                                 (1)

                                                                 (2)




                                                           2
                AVR-1705/685


DIMENSION




            3
                                                                            AVR-1705/685


CAUTION IN SERVICING
Initializing AV SURROUND RECEIVER
AV SURROUND RECEIVER initialization should be performed
when the
