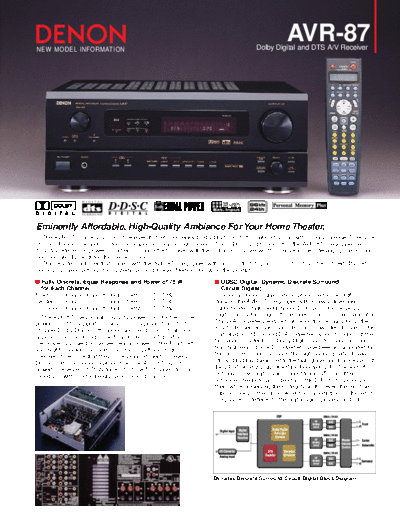

Image preview - the first page of the document
>> Download Описание AVR-87 documenatation <<
Text preview - extract from the document
NEW MODEL INFORMATION
AVR-87
Dolby Digital and DTS A/V Receiver
Eminently Affordable, High-Quality Ambiance For Your Home Theater.
The AVR-87 is an A/V surround receiver that lets you enjoy Dolby Digital and dts surround sound with maximum ease. To ensure
that all channels deliver an identical response--a vital requirement of both Dolby Digital and dts--the AVR-87 is equipped with
fully discrete, equal power amplifiers. Sound effects linked with the action in a movie will thus move in the listening space around
you and greatly heighten the sense of realism.
The remote controller that comes with the AVR-87 is equipped with an LCD that displays up to 10 characters of text. This lets
you easily make settings for System Call and Preset Memory following the prompts.
s Fully Discrete, Equal Response and Power of 75 W s DDSC-Digital (Dynamic Discrete Surround
for Each Channel Circuit-Digital)
Front 90 W + 90 W (8 ohms, 1 kHz, 0.07% THD) Since surround signals are all processed in the digital
Center 90 W (8 ohms, 1 kHz, 0.07% THD) domain, the AVR-87 is equipped with a newly-developed,
Surround 90 W + 90 W (8 ohms, 1 kHz, 0.07% THD) sophisticated, high-performance DSP circuit for the Dolby
The AVR-87 uses a high-capacity power transformer in the Digital, Dolby Pro Logic, dts decoders, and Surround Simulator.
power circuit to support not only stable reproduction of 5.1- The D/A converters feature high resolution designs for all the
channel Dolby Digital / dts sound sources but also high-quali- Front L/R, Center, Surround L/R, and Subwoofer channels. This
ty pure audio recordings. The fully discrete configuration of combination of DSP and D/A converters works to bring out the
the power amp section delivers equal power to the Front Left tremendous potential of Dolby Digital and dts sound. In addi-
and Right, Center, and Surround (Rear) Left and Right tion, high resolution A/D converters have been incorporated for
speakers to ensure that they all respond at identical levels. the Dolby Pro Logic decoder. The high sound quality of New
During surround sound reproduction, the AVR-87 taps its DDSC-Digital is due in part to the high-grade signal processing of
powerful reserves of 75 W for each of the 5 channels to sur- the 24-bit, 96-kHz Digital Interface Receiver (DIR). The AVR-87
round you with a refreshingly clean, realistic sound. not only allows digital signals input from DVD and other
advanced media to pass directly to the DIR, it also processes
them while preserving their integrity so that even the most deli-
cate nuances of the music, reflecting the emotions of the artists,
are passed unfettered to the digital signal processor (DSP).
Dynamic Discrete Surround Circuit-Digital Block Diagram
s Affordable, High-Performance Dolby Digital and DTS s Frequency Synthesis Tuning
The AVR-87 gives you high-performance Dolby Digital q 40-Station AM/FM Random Preset Memory Tuning
and dts at a price you can afford. With a fully discrete con- q Auto Preset Memory
figuration for each of the unit's five channels, the AVR-87's
Dolby Digital and dts decoder recreates the sound space s Other Features
of a video program in real-life 3D perspective, with an q Cinema Equalizer
exciting sense of motion that accompanies the images on q Music Surround Modes Including 5-channel Stereo
the screen. q Front A/B Speaker Switching
Connect another pair of stereo speakers in another room.
s 96 kHz, 24-bit Audio D/A Converters q Operating Status at a Glance on Easy-to-Read FL Display
q 2 Switched AC Outlets
s 6-Channel External Input, for Future Multi-Channel Formats q Tone Control
s Separate Current Supplies for Circuits
The AVR-87 is equipped with a main transformer featuring s Input/Output Terminals For Every A/V System
independent 5-winding outputs, and a dedicated transformer for q Audio Inputs
the microprocessor, to completely separate the power amplifier, 2 Digital (Optical) Input ..... OPTICAL x 2
audio, digital, video, and display circuits. This construction 1 Digital (Coaxial) Input .... COAXIAL x 1
reduces noise interference among the circuits and ensures a 9 Analog Inputs ................ PHONO, CD, TUNER, DVD, VDP,
clean, transparent sound. TV/DBS, VCR-1, VCR-2/V-AUX, MD/TAPE
6 Analog EXT. Inputs ......... FRONT L/R, CENTER,
s Hefty Power Transformer for Stable Supply of Power SURROUND L/R, SUBWOOFER
A power transformer has been connected in the power section q Audio Outputs
where it is combined with a rectifier diode and a large block 4 Analog Pre Outputs ....... FRONT L/R, CENTER,SUBWOOFER
capacitor to ensure a large, stable supply of electrical current. 3 Analog Rec Outputs ...... VCR-1, VCR-2/V-AUX, MD/TAPE
Accordingly, the AVR-87 boasts high output power of 75 W for q Video Inputs
each of the 5 channels. 5 Composite Inputs .......... DVD, VDP TV/DBS, VCR-1, VCR-2/V-AUX
,
q Video Outputs
s Stable Speaker Drive 3 Composite Outputs ........ VCR-1, VCR-2/V-AUX, MONITOR
In the AVR-87, the circuitry through which current flows to
drive the speakers has been incorporated onto a single board
between the rectifier circuit of the power source and the speaker Specifications
terminals. A new phase correction circuit has also been adopted,
eliminating the need for an output coil. Since this configuration s Power Amplifier Section
allows the power transistor to drive the speakers directly, there is Rated output *THD figures are power amp stage values.
no loss of power to any of the channels. The sound that you hear Front........................................... 75 W + 75 W (8 ohms, 20Hz - 20kHz, 0.05% THD)
is thus extremely stable as well as powerful. Center........................................ 75 W (8 ohms, 20Hz - 20kHz, 0.05% THD)
Surround ................................... 75 W + 75 W (8 ohms, 20Hz - 20kHz, 0.05% THD)
s Video Select Switch
s Preamplifier Section
s All-channel Level Control Input sensitivity/Impedance
s Binding Post Speaker Terminals for All Channels PHONO(MM) ............... 2.5 mV/47 kohms
CD, DVD, VDP, TV/DBS, VCR-1 VCR-2/V-AUX, MD/TAPE,
s Acclaimed Customization Feature FRONT L/R, CENTER, SURROUND L/R,
As with all of DENON's high-grade A/V amplifiers, the AVR-87 SUBWOOFER ............. 200 mV/47 kohms
lets you adjust delay times and other parameters so that you can
Output level/Load Impedance
customize the performance of the AVR-87 to suit your own home
FRONT L/R, CENTER,
theater and enhance operating ease. The adjustments are easy
SUBWOOFER ............. 1.2 V/10 kohms
to make via a dialog format on the fluorescent display.
VCR, MD/TAPE,
s Personal Memory Plus, for Easy Operation MONITOR .................... 200 mV/47 kohms
The AVR-87 includes the Personal Memory Plus function RIAA deviation ................. ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
