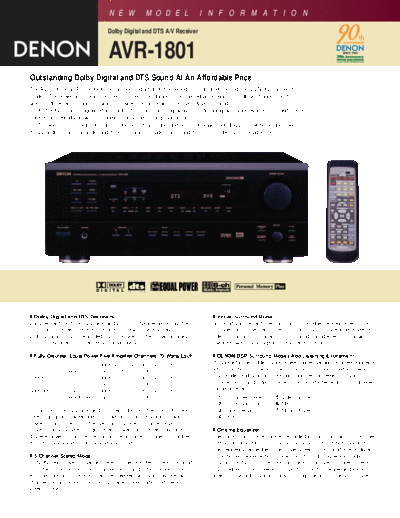

Image preview - the first page of the document
>> Download Описание AVR-1801 documenatation <<
Text preview - extract from the document
N E W M O D E L I N F O R M A T I O N
Dolby Digital and DTS A/V Receiver
AVR-1801
Outstanding Dolby Digital and DTS Sound At An Affordable Price
The AVR-1801 is an A/V receiver that has inherited advanced technology for high-quality sound from DENON's high-end
models. The power amp section features a discrete configuration to ensure equal response from all five channels, each of
which is driven with a robust 70 watts of power to let you enjoy rock-solid, dynamic sound.
As the AVR-1801 is equipped with Dolby Pro Logic, Dolby Digital and DTS decoding, all of your favorite music and movie
sources are reproduced with outstanding clarity and exciting spaciousness.
The AVR-1801 naturally provides a generous array of input and output terminals, including 2 optical digital inputs and
1 coaxial digital input for audio, and 4 sets of composite video inputs and 4 sets of S-video inputs for video sources.
s Dolby Digital and DTS Decoders s Virtual Surround Mode
Equipped with both Dolby Digital and DTS 5.1 channel decoding, the Surround yourself with sensational 3D soundfield envelopment using
AVR-1801 provides thrilling surround sound with the thousands of just one pair of speakers. The AVR-1801's Virtual Surround mode pro-
Dolby Digital and DTS encoded DVDs, as well as the growing library of vides a dramatic psychoacoustic surround sound effect, using two
DTS 5.1 channel music recordings available on CD. speakers with Dolby Digital 5.1 encoded sources.
s Fully Discrete, Equal Power Five Amplifier Channels, 70 Watts Each s DENON DSP Surround Modes Add Listening Excitement
Front............. 70 W + 70 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD) Put yourself in the middle of your favorite concert hall and music environments
105 W + 105 W (6 ohms, 1 kHz, 0.7 % THD) with DENON's DSP acoustic environment simulation modes. These
Center .......... 70 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD) DSP modes add spacious surround sound enhancements to your
105 W (6 ohms, 1 kHz, 0.7 % THD) favorite music and video sources, and include these distinctly different
Surround ...... 70 W + 70 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD) sounding effects:
105 W + 105 W (6 ohms, 1 kHz, 0.7 % THD) 1. 5 Channel Stereo 5. Video Game
2. Virtual Surround 6. Matrix
For optimum Dolby Digital and DTS reproduction, the AVR-1801 fea- 3. Rock Arena 7. Mono Movie
tures high quality, wideband audio amplification, providing 70 watts 4. Jazz Club
power output for each of the five main channels. A large capacity
power supply includes a high current power transformer along with s Cinema Equalizer
discrete power output devices on all five amplifier channels for highest The sound from movie sources recorded in Dolby Digital, DTS or other
dynamic range and superb reproduction clarity. formats emphasizes correction of components that deteriorate in the
high-frequency range due to the movie screen. If this sound is reproduced
s 5 Channel Stereo Mode in the home theater without correction, the high-frequency range is too
DENON's exclusive 5 Channel Stereo mode provides superb surround strong. The AVR-1801 features a Cinema Equalizer to correct these
sound with conventional two channel music and video sources. Hear high-frequency components so that the sound is clearer and easier to
exciting surround sound from all five speakers with your favorite two listen to. (For Dolby Digital, Dolby Pro Logic, and DTS surround modes)
channel music sources such as CD, tape, stereo radio and stereo
video sources.
N E W M O D E L I N F O R M A T I O N AVR-1801
s Supports Next Generation High Resolution Formats s Multi-Function Preset Memory Remote Controller
Future system upgrade capability is provided with the AVR-1801's 6 Channel The supplied system remote controller features a large selection of remote
External Input feature. For next generation high resolution multi-channel control codes to operate other components in your home theater system,
audio formats such as DVD-Audio and SACD, the 6 Channel External including codes for selected DENON models, along with remote control
Input is equipped with a wideband frequency response extending to codes from other manufacturers. The most frequently used buttons are
100 kHz. In addition, the digital inputs support high resolution 24 bit, laid out separately for TV, VCR and DVD, for maximum ease-of-use.
96 kHz stereo PCM soundtracks, available on selected audiophile DVD
music releases. s Acclaimed Customization Feature
As with all of DENON's high-grade A/V amplifiers, the AVR-1801 lets
s "S" and Composite Video Switching you adjust delay times and other parameters so that you can customize
Four sets of composite video (coaxial jack) and four sets of "S"-video the performance of the AVR-1801 to suit your own home theater and
terminals are provided (TV, VCR-1, VCR-2 and DVD inputs), allowing enhance operating ease. The adjustments are easy to make via a dialog
a full complement of video sources to be switched and routed to the format on the fluorescent display on the front panel.
monitor TV.
s Frequency Synthesis Tuning
s Front A/B Speaker Terminals ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
