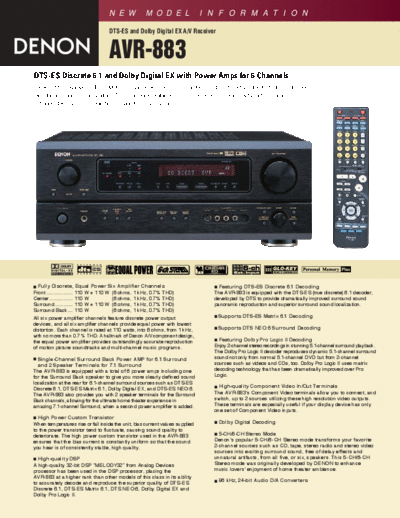

Image preview - the first page of the document
>> Download Описание AVR-883 documenatation <<
Text preview - extract from the document
N E W M O D E L I N F O R M A T I O N
DTS-ES and Dolby Digital EX A/V Receiver
AVR-883
DTS-ES Discrete 6.1 and Dolby Digital EX with Power Amps for 6 Channels
The AVR-883 is equipped with 6 amplifiers of equal power, one for each channel, in a discrete configuration for total accuracy when
reproducing sound from demanding DTS-ES and Dolby Digital EX sources. The Dolby Pro Logic II feature lets you hear
2-channel stereo sources in realistic 5.1-channel surround sound.
Fully Discrete, Equal Power Six Amplifier Channels Featuring DTS-ES Discrete 6.1 Decoding
Front ................... 110 W + 110 W (6 ohms, 1 kHz, 0.7% THD) The AVR-883 is equipped with the DTS-ES (true discrete) 6.1 decoder,
Center................. 110 W (6 ohms, 1 kHz, 0.7% THD) developed by DTS to provide dramatically improved surround sound
Surround............. 110 W + 110 W (6 ohms, 1 kHz, 0.7% THD) panoramic reproduction and superior surround sound localization.
Surround Back.... 110 W (6 ohms, 1 kHz, 0.7% THD)
Supports DTS-ES Matrix 6.1 Decoding
All six power amplifier channels feature discrete power output
devices, and all six amplifier channels provide equal power with lowest
Supports DTS NEO:6 Surround Decoding
distortion. Each channel is rated at 110 watts, into 6 ohms, from 1 kHz,
with no more than 0.7 % THD. A hallmark of Denon A/V component design,
Featuring Dolby Pro Logic II Decoding
the equal power amplifier provides outstandingly accurate reproduction
of motion picture soundtracks and multi-channel music programs. Enjoy 2-channel stereo recordings in stunning 5.1-channel surround playback.
The Dolby Pro Logic II decoder reproduces dynamic 5.1-channel surround
Single-Channel Surround Back Power AMP for 6.1 Surround sound not only from normal 5.1-channel DVD but from 2-channel
and 2 Speaker Terminals for 7.1 Surround sources such as videos and CDs, too. Dolby Pro Logic II uses matrix
The AVR-883 is equipped with a total of 6 power amps including one decoding technology that has been dramatically improved over Pro
for the Surround Back speaker to give you more clearly defined sound Logic.
localization at the rear for 6.1-channel surround sources such as DTS-ES
High-quality Component Video In/Out Terminals
Discrete 6.1, DTS-ES Matrix 6.1, Dolby Digital EX, and DTS-ES NEO:6.
The AVR-883 also provides you with 2 speaker terminals for the Surround The AVR-883's Component Video terminals allow you to connect, and
Back channels, allowing for the ultimate home theater experience in switch, up to 2 sources utilizing these high resolution video outputs.
amazing 7.1-channel Surround, when a second power amplifier is added. These terminals are especially useful if your display device has only
one set of Component Video inputs.
High Power Custom Transistor
Dolby Digital Decoding
When temperatures rise or fall inside the unit, bias current values supplied
to the power transistor tend to fluctuate, causing sound quality to
5-CH/6-CH Stereo Mode
deteriorate. The high power custom transistor used in the AVR-883
ensures that the bias current is constantly uniform so that the sound Denon's popular 5-CH/6-CH Stereo mode transforms your favorite
you hear is of consistently stable, high quality. 2-channel sources such as CD, tape, stereo radio and stereo video
sources into exciting surround sound, free of delay effects and
High-quality DSP unnatural artifacts, from all five, or six, speakers. This 5-CH/6-CH
A high-quality 32-bit DSP "MELODY32" from Analog Devices Stereo mode was originally developed by DENON to enhance
processor has been used in the DSP processor, placing the music lovers' enjoyment of home theater ambience.
AVR-883 at a higher rank than other models of this class in its ability
to accurately decode and reproduce the superior quality of DTS-ES 96 kHz, 24-bit Audio D/A Converters
Discrete 6.1, DTS-ES Matrix 6.1, DTS NEO:6, Dolby Digital EX and
Dolby Pro Logic II.
N E W M O D E L I N F O R M A T I O N AVR-883
Adjustable Cross-Over Switching Input/Output Terminals For Every A/V System
