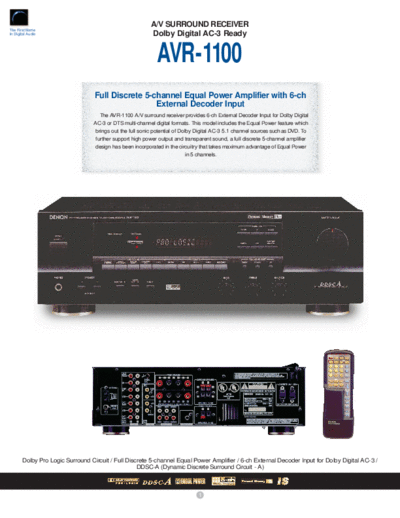

Image preview - the first page of the document
>> Download Описание AVR-1100 documenatation <<
Text preview - extract from the document
A/V SURROUND RECEIVER
The First Name
In Digital Audio Dolby Digital AC-3 Ready
AVR-1100
Full Discrete 5-channel Equal Power Amplifier with 6-ch
External Decoder Input
The AVR-1100 A/V surround receiver provides 6-ch External Decoder Input for Dolby Digital
AC-3 or DTS multi-channel digital formats. This model includes the Equal Power feature which
brings out the full sonic potential of Dolby Digital AC-3 5.1 channel sources such as DVD. To
further support high power output and transparent sound, a full discrete 5-channel amplifier
design has been incorporated in the circuitry that takes maximum advantage of Equal Power
in 5 channels.
Dolby Pro Logic Surround Circuit / Full Discrete 5-channel Equal Power Amplifier / 6-ch External Decoder Input for Dolby Digital AC-3 /
DDSC-A (Dynamic Discrete Surround Circuit - A)
1
The First Name
In Digital Audio Full Discrete 5-channel Equal Power Amplifier
AVR-1100 The AVR-1100 offers full discrete 5-channel power amplifier to support the dynamic performance of the Dolby Digital AC-3
sound signal from DVD. All channels have equal power output---55 watts per channel and are configured as independent
monaural amplifiers. This construction enables these models to produce a dynamic realism through their high-current capa-
bility and to recreate a nuanced surround sound effect via superior channel separation.
6-channel External Decoder Input
The AVR-1100 is equipped with a 6-ch external decoder input. You can connect an external Dolby Digital AC-3
decoder, or a DVD player which already includes the Dolby digital AC-3 decoder. Or you can use this input to accom-
modate a high quality multi-channel format like DTS or MPEG.
Dynamic Discrete Surround Circuit-A
The Dynamic Discrete Surround Circuit-A (DDSC-A) is a technology advancement delivering greater clarity and fidelity
during surround sound playback.
It prevents mutual interference among circuits and improves overall sound quality. With DDSC-A, the main signals
of the Front and Center channels are processed in their original analog form in order to preserve the high dynamic
range of the sound. The Effect signals for the Surround (Rear) channels are processed digitally. Both analog and digi-
tal sections have been completely separated to ensure clear sound and surround channel steering.
Dynamic Discrete Surround Circuit-A Block Diagram
L In L
NEW Front
ADAPTIVE PRO-LOGIC
DECODER R
R In MATRIX
Master Center
Volume
Control
L
Digital Noise
A/D D/A Reduction Surround
delay
R
MAIN SIGNAL EFFECT SIGNAL
Functions for Easy Operation
Personal Memory Plus
System Remote Controller
The AVR-1100's Remote Controller will operate any DENON CD player and cassette deck you have connected to the unit.
In addition, the pre-memory function contains most of the commands needed to operate a non-DENON VDP, TV and VCR.
Just enter the name of the manufacturer, and the controller is ready for use.
The buttons on the remote controller are fashioned such that different shapes and colors provide quick recogni-
tion for easy operation.
Subwoofer Level Control in 6-channel Mode
Last Function Memory
Power On/Off Switching by Remote Controller
Frequency Synthesis Tuning
40-Station AM/FM Random Preset Memory Tuning / Auto Preset Memory (FM only)
Last-Channel-Tuned Memory
Other Features
Video Select Function
The AVR-1100's Video Select function lets you select a video signal independently of the selected audio source.
PRE OUT terminals for Mono (subwoofer) / A-B speaker switching / Binding-type speaker terminals (front)
2 Surround Modes (CONCERT HALL, LIVE) / Video Select / Tone Control / Large, Easy-to-Read FL Display
Input/Output Terminals for Every A/V System
Audio Inputs/Outputs Video Inputs
7 Analog inputs 2 Video inputs
PHONO, CD, TUNER, DVD/TV, VCR, DAT/TAPE VCR, DVD/TV
and 6-channel External Decoder Input 2 Video outputs
2 Analog PRE OUT Terminals VCR, MONITOR
VCR, DAT/TAPE
1 Analog REC OUT Terminal
SUBWOOFER
2
Specifications
The First Name
In Digital Audio
AVR-1100 AVR-1100
Power Amplifier Section Same quality amplifier for all 5-channel
Rated output * THD figures are power amp stage values.
Front 55 W + 55 W
(8 ohms, 20Hz - 20 kHz, THD 0.08%)
Center 55 W
(8 ohms, 20Hz - 20 kHz, THD 0.08%)
Surround 55 W + 55 W
(8 ohms, 20Hz - 20 kHz, THD 0.08%)
Dynamic Power -
-
-
Preamplifier Section
Input sensitivity/ Impedance PHONO (MM) : 2.5 mV/ 47 kohms
CD, DVD/ TV, VCR, DAT/ TAPE,
6-ch EXT. : 200 mV/ 47 kohms
Output level/Load Impedance SUB WOOFER : 1.2 V/ 10 kohms
VCR, DAT/ TAPE :
150 mV/ 47 kohms
Digital Input Optical
Coaxial
RF
Digital Output
