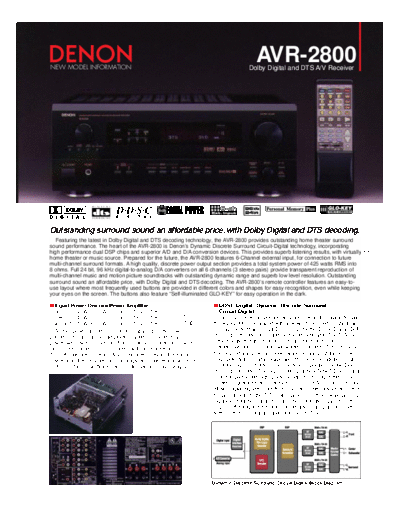

Image preview - the first page of the document
>> Download Схема AVR-2800 documenatation <<
Text preview - extract from the document
NEW MODEL INFORMATION
AVR-2800
Dolby Digital and DTS A/V Receiver
Outstanding surround sound an affordable price, with Dolby Digital and DTS decoding.
Featuring the latest in Dolby Digital and DTS decoding technology, the AVR-2800 provides outstanding home theater surround
sound performance. The heart of the AVR-2800 is Denon's Dynamic Discrete Surround Circuit-Digital technology, incorporating
high performance dual DSP chips and superior A/D and D/A conversion devices. This provides superb listening results, with virtually any
home theater or music source. Prepared for the future, the AVR-2800 features 6-Channel external input, for connection to future
multi-channel surround formats. A high quality, discrete power output section provides a total system power of 425 watts RMS into
8 ohms. Full 24 bit, 96 kHz digital-to-analog D/A converters on all 6 channels (3 stereo pairs) provide transparent reproduction of
multi-channel music and motion picture soundtracks with outstanding dynamic range and superb low level resolution. Outstanding
surround sound an affordable price, with Dolby Digital and DTS decoding. The AVR-2800's remote controller features an easy-to-
use layout where most frequently used buttons are provided in different colors and shapes for easy recognition, even while keeping
your eyes on the screen. The buttons also feature "Self-illuminated GLO-KEY" for easy operation in the dark.
Equal Power Discrete Power Amplifier DDSC-Digital (Dynamic Discrete Surround
Front 85 W + 85 W (8 ohms, 20Hz - 20kHz, 0.05% THD) Circuit-Digital)
Center 85 W (8 ohms, 20Hz - 20kHz, 0.05% THD) Since surround signals are all processed in the digital domain,
Surround 85 W + 85 W (8 ohms, 20Hz - 20kHz, 0.05% THD) the AVR-2800 is equipped with a newly-developed, sophisticat-
All five power amplifier channels feature discrete power out- ed, high-performance dual DSP circuit for the Dolby Digital, Dolby
put devices, and all five amplifier channels provide equal Pro Logic, dts decoders, and Surround Simulator. The D/A con-
power with lowest distortion. Each channel is rated at 85 watts, verters feature high resolution designs for all the Front L/R,
into 8 ohms, from 20 Hz - 20 kHz, with no more than 0.05% Center, Surround L/R, and Subwoofer channels. This combina-
THD. A hallmark of Denon A/V component design, the equal tion of DSP and D/A converters works to bring out the tremen-
power amplifier provides outstandingly accurate reproduction of dous potential of Dolby Digital and dts sound. In addition, high
motion picture soundtracks and multi-channel music programs. resolution A/D converters have been incorporated for the Dolby
Pro Logic decoder. The high sound quality of New DDSC-Digital
is due in part to the high-grade signal processing of the 24-bit,
96-kHz Digital Interface Receiver (DIR). The AVR-2800 not only
allows digital signals input from DVD and other advanced media
to pass directly to the DIR, it also processes them while preserv-
ing their integrity so that even the most delicate nuances of the
music, reflecting the emotions of the artists, are passed unfet-
tered to the dual digital signal processors (DSP).
Dynamic Discrete Surround Circuit-Digital Block Diagram
Dolby Digital Frequency Synthesis Tuning
Dolby Digital and Dolby Pro Logic decoding functions are per- 40-Station AM/FM Random Preset Memory Tuning
formed in the digital domain for excellent dynamic range and Auto Preset Memory
crystal clear reproduction.
Other Features
DTS Cinema Equalizer
Digital Theater Systems decoding provides thrilling movie and Music Surround Modes Including 5-channel Stereo
music multi-channel surround sound. "S" and Composite Video Switching
Front A/B Speaker Switching
96kHz, 24-bit Audio D/A Converters Connect another pair of stereo speakers in another room.
Tone Control
6-Channel External Input For Future Multi-Channel Formats 2 Switched AC Outlets
Separate Current Supplies for Circuits
The AVR-2800 is equipped with a main transformer featuring Input/Output Terminals For Every A/V System
independent 5-winding outputs, and a dedicated transformer for Audio Inputs
the microprocessor, to completely separate the power amplifier, 3 Digital (Optical) Input ....... OPTICAL x 3
audio, digital, video, and display circuits. This construction 1 Digital (Coaxial) Input ...... COAXIAL x 1
reduces noise interference among the circuits and ensures a 9 Analog Inputs ................... PHONO, CD, TUNER, DVD, VDP,
clean, transparent sound. TV/DBS, VCR-1, VCR-2/V-AUX,
MD/TAPE
Hefty Power Transformer for Stable Supply of Power 6 Analog EXT. Inputs ........... FRONT L/R, CENTER,
A power transformer has been connected in the power sec- SURROUND L/R, SUBWOOFER
tion where it is combined with a rectifier diode and a large block Audio Outputs
capacitor to ensure a large, stable supply of electrical current. 4 Analog Pre Outputs ......... FRONT L/R, CENTER, SUBWOOFER
Accordingly, the AVR-2800 boasts high output power of 85 W for 3 Analog Rec Outputs ........ VCR-1, VCR-2/V-AUX, MD/TAPE
each of the 5 channels.
Video Inputs
Stable Speaker Drive 5 S-Video Inputs ................. DVD, VDP, TV/DBS, VCR-1,
In the AVR-2800, the circuitry through which current flows VCR-2/V-AUX
to drive the speakers has been incorporated onto a single 5 Composite Inputs ............. DVD, VDP, TV/DBS, VCR-1,
board between the rectifier circuit of the power source and the VCR-2/V-AUX
speaker terminals. A new phase correction circuit has also Video Outputs
been adopted, eliminating the need for an output coil. Since 3 S-Video Outputs .............. VCR-1, VCR-2/V-AUX, MONITOR
this configuration allows the power transistor to drive the 3 Composite Outputs .......... VCR-1, VCR-2/V-AUX, MONITOR
speakers directly, there is no loss of power to any of the
channels. The sound that you hear is thus extremely stable
as well as powerful. Specifications
Pre Outputs for System Upgrading Power Amplifier Section
The pre-out terminals on the AVR-2800 is offered for Front L/R, Rated output *THD figures are power amp stage values.
Center and Mono (Subwoofer) channels. A separate power amp Front........................................... 85 W + 85 W (8 ohms, 20Hz - 20kHz, 0.05% THD)
can be connected to these terminals to upgrade your system. Center........................................ 85 W (8 ohms, 20Hz - 20kHz, 0.05% THD)
Surround ................................... 85 W + 85 W (8 ohms, 20Hz - 20kHz, 0.05% THD)
Video Select Switch Preamplifier Section
This function lets you select video sources independently of Input sensitivity/Impedance
the audio sources. PHONO(MM) ............... 2.5 mV/47 kohms
CD, DVD, VDP, TV/DBS, VCR-1 VCR-2/V-AUX, MD/TAPE,
All-channel Level Control FRONT L/R, CENTER, SURROUND L/R,
SUBWOOFER ............. 200 mV/47 kohms
Binding Post Speaker Terminals for All Channels Output level/Load Impedance
Icon-based On-Screen Display FRONT L/R, CENTER,
The AVR-2800 provides an On-Screen Display (OSD) fea- SUBWOOFER ............. 1.2 V/10 kohms
turing icons (pictorial representations) to let you easily monitor VCR, MD/TAPE,
the current operating status. MONITOR .................... 200 mV/47 kohms
