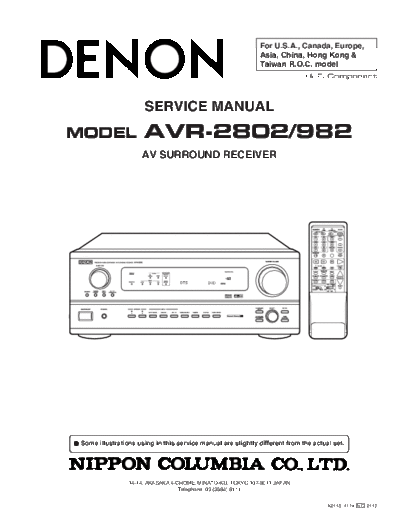

Image preview - the first page of the document



>> Download Схема AVR-2802 & 982 documenatation <<

Text preview - extract from the document

                                                              For U.S.A., Canada, Europe,
                                                              Asia, China, Hong Kong &
                                                              Taiwan R.O.C. model
                                                                              Hi-Fi Component



                      SERVICE MANUAL
MODEL                 AVR-2802/982
                      AV SURROUND RECEIVER




 Some illustrations using in this service manual are slightly different from the actual set.




                 14-14, AKASAKA 4-CHOME, MINATO-KU, TOKYO 107-8011 JAPAN
                                   Telephone: 03 (3584) 8111


                                                                                      X0119 1174 NC 0112
                                                                                                                                                                                  AVR-2802/982




 SAFETY PRECAUTIONS
 The following check should be performed for the continued protection of the customer and service technician.

 LEAKAGE CURRENT CHECK
 Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis
 resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the
 power cord is less than 460 kohms, the unit is defective.

SPECIFICATIONS
 AUDIO SECTION
   Power Amplifier
   Rated output:                                 Front:         90W + 90W (8/ohms, 20Hz ~ 20kHz with 0.05% T.H.D.)
                                                                135W + 135W (6/ohms, 1kHz with 0.7% T.H.D.)
                                                                150W + 150W (6/ohms, EIAJ)
                                                 Center:        90W (8/ohms, 20Hz ~ 20kHz with 0.05% T.H.D.)
                                                                135W (6/ohms, 1kHz with 0.7% T.H.D.)
                                                                150W (6/ohms, EIAJ)
                                                 Surround:      90W + 90W (8/ohms, 20Hz ~ 20kHz with 0.05% T.H.D.)
                                                                135W + 135W (6/ohms, 1kHz with 0.7% T.H.D.)
                                                                150W + 150W (6/ohms, EIAJ)
                                                 Surround Back: 90W (8/ohms, 20 Hz ~ 20kHz with 0.05% T.H.D.)
                                                                135W (6/ohms, 1kHz with 0.7% T.H.D.)
                                                                150W (6/ohms, EIAJ)
   Dynamic power:                                120W
