AVR-2808CI BKEU and BKEC, AVR-2808 BKE2 and SRE2, AVR-2808 SPE2A,
AVC-2808 SPE1C,
AVR-988 BKEU

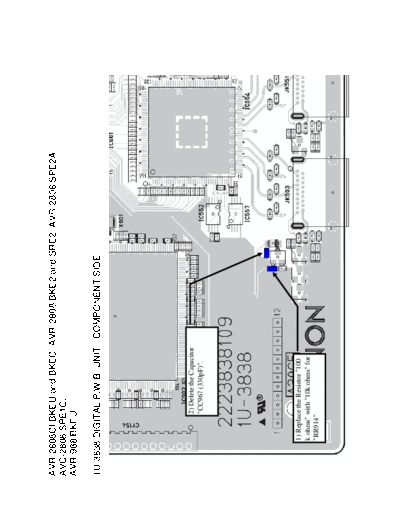

1U-3838 DIGITAL P.W.B. UNIT / COMPONENT SIDE




               2) Delete the Capacitor
               "CC967 (330pF)".




       1) Replace the Resistor "100
       k ohms" with "10k ohms" for
       "RR914"
