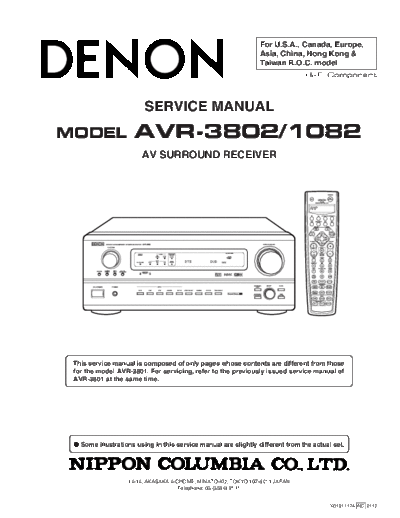

Image preview - the first page of the document
>> Download Схема 2 AVR-3802 & 1082 documenatation <<
Text preview - extract from the document
For U.S.A., Canada, Europe,
Asia, China, Hong Kong &
Taiwan R.O.C. model
Hi-Fi Component
SERVICE MANUAL
MODEL AVR-3802/1082
AV SURROUND RECEIVER
This service manual is composed of only pages whose contents are different from those
for the model AVR-3801. For servicing, refer to the previously issued service manual of
AVR-3801 at the same time.
Some illustrations using in this service manual are slightly different from the actual set.
14-14, AKASAKA 4-CHOME, MINATO-KU, TOKYO 107-8011 JAPAN
Telephone: 03 (3584) 8111
X0131 1174 NC 0112
AVR-3802/1082
SPECIFICATIONS
AUDIO SECTION
Power Amplifier
Rated output: Front: 105W + 105W (8/ohms, 20Hz ~ 20kHz with 0.05% T.H.D.)
110W + 110W (8/ohms, 20Hz ~ 20kHz with 0.05% T.H.D.) (for North America model)
150W + 150W (6/ohms, 1kHz with 0.7% T.H.D.)
180W + 180W (6/ohms, EIAJ)
Center: 105W (8/ohms, 20Hz ~ 20kHz with 0.05% T.H.D.)
110W (8/ohms, 20Hz ~ 20kHz with 0.05% T.H.D.) (for North America model)
150W (6/ohms, 1kHz with 0.7% T.H.D.)
180W + 180W (6/ohms, EIAJ)
Surround: 105W + 105W (8/ohms, 20Hz ~ 20kHz with 0.05% T.H.D.)
110W + 110W (8/ohms, 20Hz ~ 20kHz with 0.05% T.H.D.) (for North America model)
150W + 150W (6/ohms, 1kHz with 0.7% T.H.D.)
180W + 180W (6/ohms, EIAJ)
Surround Back: 105W + 105W (8/ohms, 20 Hz ~ 20kHz with 0.05% T.H.D.)
110W + 110W (8/ohms, 20Hz ~ 20kHz with 0.05% T.H.D.) (for North America model)
150W + 150W (6/ohms, 1kHz with 0.7% T.H.D.)
180W + 180W (6/ohms, EIAJ)
Dynamic power: 140W ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
