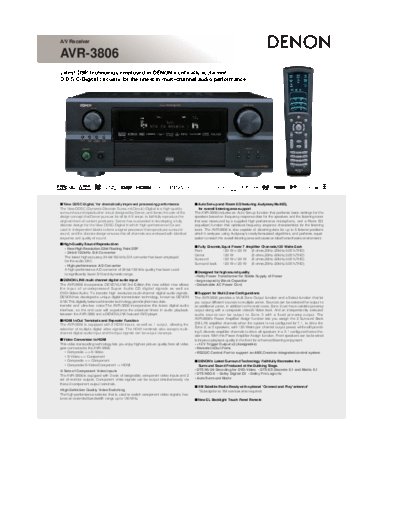

Image preview - the first page of the document



>> Download Описание AVR-3806 documenatation <<

Text preview - extract from the document

A/V Receiver

AVR-3806
Latest DSP technology employed in DENON's critically acclaimed
D.D.S.C-Digital circuitry for the finest in multi-channel audio performance




I 'New DDSC-Digital,' for dramatically improved processing performance                    I Auto Set-up and Room EQ featuring Audyssey MultEQ,
The New DDSC (Dynamic Discrete Surround Circuit)-Digital is a high-quality                   for overall listening area support
surround sound reproduction circuit designed by Denon, and forms the core of the          The AVR-3806 includes an Auto Set-up function that performs basic settings for the
design concept that Denon pursues for all its A/V amps: to faithfully reproduce the       speakers based on frequency response data for the speakers and the listening room
original intent of content producers. Denon has succeeded in developing a fully           that was measured by a supplied high-performance microphone, and a Room EQ
discrete design for the New DDSC-Digital in which high-performance ICs are                (equalizer) function that optimizes frequency response characteristics for the listening
used in independent blocks to form a signal processor that reproduces surround            room. The AVR-3806 is also capable of obtaining data for up to 6 listener positions
sound, and the discrete design ensures that all channels are endowed with identical       which it analyzes using Audyssey's newly-formulated algorithms, and performs equal-
response and quality of sound.                                                            ization to match the overall listening area and create an ideal home theatre environment.
I High-Quality Sound Reproduction
                                                                                          I Fully Discrete,Equal Power 7 Amplifier Channels,120 Watts Each
