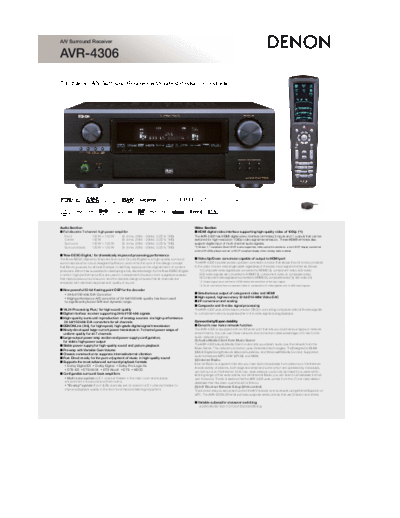

Image preview - the first page of the document
>> Download Описание AVR-4306 documenatation <<
Text preview - extract from the document
A/V Surround Receiver
AVR-4306
7.1-channel A/V Surround Receiver with varied media connectivity
Audio Section Video Section
s Full discrete 7-channel high power amplifier s HDMI digital video interface supporting high-quality video of 1080p (*1)
Front 130 W + 130 W (8 ohms, 20Hz - 20kHz, 0.05 % THD) The AVR-4306 has HDMI digital video interface terminals (3 inputs and 1 output) that can be
Center 130 W (8 ohms, 20Hz - 20kHz, 0.05 % THD) switched for high-resolution 1080p video signal transmission. These HDMI terminals also
Surround 130 W + 130 W (8 ohms, 20Hz - 20kHz, 0.05 % THD) support digital input of multi-channel audio signals.
Surround back 130 W + 130 W (8 ohms, 20Hz - 20kHz, 0.05 % THD) *1) Version 1.1 compliant. Since HDCP is also supported, video cannot be viewed on a non-HDCP display connected
to the AVR-4306; please connect a HDCP-compliant display when viewing video material.
s 'New DDSC-Digital,' for dramatically improved processing performance
The New DDSC (Dynamic Discrete Surround Circuit)-Digital is a high-quality surround s Video Up/Down conversion capable of output to HDMI port
sound reproduction circuit designed by Denon, and forms the core of the design concept The AVR-4306 includes a video up/down conversion function that allows the unit to be connected
that Denon pursues for all its A/V amps: to faithfully reproduce the original intent of content to the video monitor via a single cable regardless of the video input signal's format as follows:
producers. Denon has succeeded in developing a fully discrete design for the New DDSC-Digital 1) Composite video signals are converted to HDMI (*2), component video, & S-video;
in which high-performance ICs are used in independent blocks to form a signal processor 2) S-video signals are converted to HDMI (*2), component video, & composite video;
that reproduces surround sound, and the discrete design ensures that all channels are 3) Component video signals are converted to HDMI (*2), composite video (*3), & S-video (*3).
endowed with identical response and quality of sound. *2. Output signal up-converted to HDMI retains the resolution of the input signal.
*3. Down-conversion from component video to composite or S-video applies only to 480i input signals.
s New powerful 32-bit floating point DSP for the decoder
