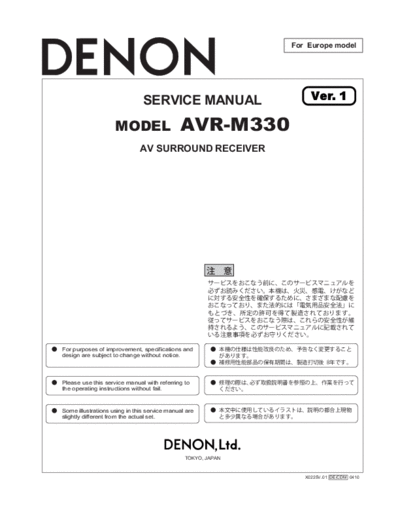

Image preview - the first page of the document
>> Download Схема AVR-M330 documenatation <<
Text preview - extract from the document
For Europe model
SERVICE MANUAL Ver. 1
MODEL AVR-M330
AV SURROUND RECEIVER
For purposes of improvement, specifications and
design are subject to change without notice.
Please use this service manual with referring to ,
the operating instructions without fail.
Some illustrations using in this service manual are
slightly different from the actual set.
TOKYO, JAPAN
X0225V.01 DE/CDM 0410
AVR-M330
SAFETY PRECAUTIONS
The following check should be performed for the continued protection of the customer and service technician.
LEAKAGE CURRENT CHECK
Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis
resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the
power cord is less than 460 kohms, the unit is defective.
2
AVR-M330
BLOCK DIAGRAM
SYSTEM
LC72723M
CONNECTOR
1
2
DIGITAL
(OPTICAL) TU
1
2 STANDBY
TRANS
AC 230V
50Hz
MAIN
TRANS
TU
ANALOG
VKK -31V
F.I.PAC
SEL
MULTI-B
MULTI-A
B.P.F.
FAN
THERMAL FAN Drive
SEL
MULTI-B
MULTI-A
Protector Protector
3
AVR-M330
LEVEL DIAGRAM
B. P. F.
29dB
8
(70Hz)
7
7
4
AVR-M330
SEMICONDUCTORS/
Only major semiconductors are shown, general semiconductors etc. are omitted to list.
CS49400 (IC12)
AUDATA7, XMT958B, GPIO31
AUDATA3, XMT958A
SD_ADDR3 ,EXTA3
SD_ADDR2 ,EXTA2
SD_ADDR1 ,EXTA1
SD_ADDR0, EXTA0
SDATAN0, GPIO24
SDATAN1, GPIO25
SDATAN2, GPIO26
SDATAN3, GPIO27
AUDATA4, GPIO28
AUDATA5, GPIO29
AUDATA6, GPIO30
LRCLKN, GPIO23
SCLKN, GPIO22
HDATA3, GPIO3
HDATA4, GPIO4
HDATA5, GPIO5
HDATA6, GPIO6
HDATA7, GPIO7
AUDATA2
SD_CAS
SD_RAS
LRCLK0
LRCLK1
SCLK0
SCLK1
MCLK
VDD2
VDD1
VSS2
VSS1
NC1
NC2
NC3
NC4
105
100
90
85
75
95
80
AUDATA1 SD_ADDR10, EXTA10
AUDATA0 110 SD_BA, EXTA19
CMPCLK, FSCLKN2 70 VDDSD1
ce
HDATA2, GPIO2 VSSSD1
VSS3 SD_CS
VDD3 SD_ADDR4, EXTA4
HDATA1, GPIO1 115 SD_ADDR5, EXTA5
HDATA0, GPIO0 65 SD_ADDR6, EXTA6
CMPREQ, FLRCLKN2 SD_CLK_EN
CMPDAT, FSDATAN2 SD_ADDR7, EXTA7
FLRCLKN1 SD_ADDR8, EXTA8
WR, DS, GPIO10 120 SD_CLK_IN
RD, R/W, GPIO11 60 SD_ADDR9, EXTA9
PLLVSS SD_CLK_OUT
an FILT2 VDDSD2
FILT1 VSSSD2
PLLVDD 125 SD_DATA8, EXTA11
XTALO 55 SD_DATA9, EXTA12
CLKIN, XTALI SD_DATA10, EXTA13
CLKSEL SD_DATA11, EXTA14
CS, GPIO9 SD_DATA12, EXTA15
A0, GPIO13 130 VDDSD3
FSDATAN1 50 VSSSD3
VDD4 SD_DATA13, EXTA16
VSS4 NC5
FSCLKN1, STCCLK2 SD_DATA14, EXTA17
SCS 135 SD_DATA15, EXTA18
dv
SCDIN 45 SD_DQM1
VSS5 SD_DATA7, EXTD7
VDD5 SD_DATA6, EXTD6
A1, GPIO12 VDDSD4
SCDOUT, SCDIO 140 VSSSD4
HINBSY, GPIO8 40 SD_DATA5, EXTD5
SCCLK SD_DQM0
UHS2, CS_OUT, GPIO17 SD_DATA4, EXTD4
RESET 144 SD_DATA3, EXTD3
35
25
30
20
10
15
5
1
UHS0, GPIO18
UHS1, GPIO19
INTREQ, ABOOT
FA1, FSCDIN
GPIO20
FAO, FSCCLK
FHS2, FSCDIO, FSCDOUT
GPIO21
FDAT7
VDD6
VSS6
FHS0, FWR, FDS
FHS1, FRD, FR/W
FDAT6
FCS
FINTREQ
FDBCK
FDAT5
FDAT4
VDD7
VSS7
FDAT3
FDBDA
FDAT2
DBDA
DBCK
FDAT1
TEST
FDAT0
NV_WE, GPIO16
NV_OE, GPIO15
NV_CS, GPIO14
SD_WE
SD_DATA0, EXTD0
SD_DATA1, EXTD1
SD_DATA2, EXTD2
Block Diagram
SAI 0
Serial External Memory
SAI 1
SAI 3
Audio Interface
SAI 2 Interface
Compressed
Audio
DSP C
Internal Bus
Digital DAO 0
Interface Frame Audio
Programmable 32-Bit DSP
Shifter
Shared Memory
Digital Multistandard Interface DAO 1
Audio Audio Decoder
Interface DSP DSP GPIO and I/O
Input
RAM ROM Controller
DSP AB Buffer
RAM
PLL Clock Parallel or Serial Parallel or Serial
Debug Port
Manager Host Interface Host Interface
5
AVR-M330
ST92F124V1 (IC16)
P7.6/AIN14/WKUP12
P7.5/AIN13/WKUP11
P7.4/AIN12/WKUP3
P7.7/AIN15/7/WKUP13
P7.0/AIN8/CK_AF
P7.3/AIN11
P7.2/AIN10
P7.1/AIN9
P8.7/AIN7
P8.6/AIN6
P8.5/AIN5
P9.1/TDO
HW0SW1
OSCOUT
P9.5/A19
P9.4/A18
P9.3/A17
P9.2/A16
P9.0/RDI
RESET
OSCIN
AVDD
AVSS
VDD
VSS
100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76
A20/P9.6 1 75 P8.4/AIN4
A21/P9.7 2 74 P8.3/AIN3
WAIT/WKUP5/P5.0 3 73 P8.2/AIN2
WKUP6/WDOUT/P5.1 4 72 P8.1/AIN1/WKUP15
SIN/WKUP2/P5.2 5 71 P8.0/AIN0/WKUP14
WDIN/SOUT/P5.3 6 70 NC
TXCLK/CLKOUT/P5.4 7 69 P6.5/WKUP10/INTCLK
RXCLK/WKUP7/P5.5 8 68 P6.4/NMI
DCD/WKUP8/P5.6 9 67 P6.3/INT3/INT5
WKUP9/RTS/P5.7 10 66 P6.2/INT2/INT4/DS2
ICAPA1/P4.0 11 65 P6.1/INT6/RW
CLOCK2/P4.1 12 64 P6.0/INT0/INT1/CLOCK2/8
OCMPA1/P4.2 13 63 P0.7/A7/D7
VSS 14 62 VDD
VDD 15 61 VSS
ICAPB1/OCMPB1/P4.3 16 60 P0.6/A6/D6
EXTCLK1/WKUP4/P4.4 17 59 P0.5/A5/D5
EXTRG/STOUT/P4.5 18 58 P0.4/A4/D4
SDA/P4.6 19 57 P0.3/A3/D3
WKUP1/SCL/P4.7 20 56 P0.2/A2/D2
ICAPB0/P3.1 21 55 P0.1/A1/D1
ICAPA0/OCMPA0/P3.2 22 54 P0.0/A0/D0
OCMPB0/P3.3 23 53 AS
EXTCLK0/SS/P3.4 24 52 DS
MISO/P3.5 25 51 P1.7/A15
26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50
VSS
VREG
VREG
NC
SCK/WKUP0/P3.7
RW
TOUTA0/P2.2
TOUTB0/P2.3
TOUTA1/P2.6
TOUTB1/P2.7
*VTEST
MOSI/P3.6
A10/P1.2
A11/P1.3
A12/P1.4
A13/P1.5
A14/P1.6
TINPA0/P2.0
TINPB0/P2.1
TINPA1/P2.4
TINPB1/P2.5
A8/P1.0
A9/P1.1
WKUP6
VDD
Block Diagram
FLASH
128 Kbytes Ext. MEM.
ADDRESS A[7:0]
DATA D[7:0]
Port0
E3 TM
1 Kbyte
Ext. MEM.
ADDRESS A[10:8]
MEMORY BUS
RAM Ports A[21:11]
4 Kbytes 1,9
P0[7:0]
AS
DS P1[7:3]
RW Fully P1[2:0]
256 bytes
WAIT Prog. P2[7:0]
Register File
NMI I/Os P3[7:4]
DS2 P3[3:1]
8/16 bits
RW P4[7:4]
CPU
P4[3:0]
Interrupt P5[7:0]
INT[6:0] Management P6[5:2,0]
WKUP[15:0] P6.1
ST9 CORE P7[7:0]
OSCIN P8[7:0]
OSCOUT P9[7:0]
RESET RCCU SDA
CLOCK2/8 I2C BUS SCL
INTCLK
CK_AF
STOUT ST. TIMER WATCHDOG WDOUT
REGISTER BUS
HW0SW1
ICAPA0
OCMPA0 MISO
ICAPB0 EF TIMER 0 MOSI
OCMPB0 SPI SCK
EXTCLK0 SS
AVDD
ICAPA1 AVSS
OCMPA1 AIN[15:8]
ICAPB1 EF TIMER 1 ADC
AIN[7:0]
OCMPB1 EXTRG
EXTCLK1
TXCLK
TINPA0 RXCLK
TOUTA0 SIN
MF TIMER 0
TINPB0 SCI M DCD
TOUTB0 SOUT
TINPA1 CLKOUT
TOUTA1 RTS
MF TIMER 1
TINPB1
TOUTB1 RDI
SCI A
TDO
VOLTAGE
VREG
REGULATOR
The alternate functions (Italic characters) are mapped on Port 0, Port 1, Port2, Port3, Port4, Port5, Port6, Port7,
Port8 and Port9.
6
AVR-M330
AK4588VQ (IC11)
Block Diagram
7
AVR-M330
AK4588VQ Terminal Function
8
AVR-M330
9
AVR-M330
Note : Please make no digital input pins except an internal bias pins into floating.
10
AVR-M330
NJW1157 (IC73)
PIN FUNCTION
1R 6<0%2/ )81&7,21 1R 6<0%2/ )81&7,21
