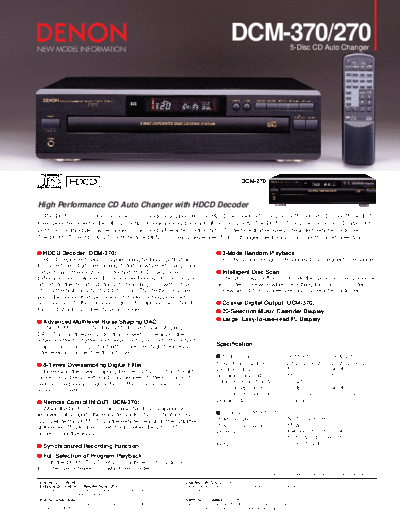

NEW MODEL INFORMATION
                                                                                   DCM-370/270                    5-Disc CD Auto Changer




                                                                                        DCM-270



High Performance CD Auto Changer with HDCD Decoder
  The DCM-370, a 5-disc carrousel CD changer equipped with an HDCD decoder, lets you play both regular CDs and those that
have been recorded in the HDCD format, to enjoy exceptionally high sound quality. The DCM-370 includes a Coaxial Digital Out
put to accommodate a wide range of uses and a Remote Control IN/OUT interface that enables integrated remote controller.
The DCM-370 and DCM-270 both feature DENON's newly-developed 5-disc changer mechanism for smooth, quiet operation.

s HDCD Decoder (DCM-370)                                                    s 3-Mode Random Playback
    HDCD represents encoding/decoding technology that dras-                   Full Random / Program Random /Disc Sequential Random
tically reduces digital recording distortion while retaining com-
patibility with the existing CD format. HDCD uses Peak                      s Intelligent Disc Scan
Extension and Low-level Extension technology to convert 24-                    The Disc Skip button can rotate the carousel tray clockwise
bit data to the 16-bit data format of existing CDs without sac-             or counter-clockwise when searching for a disc. (Counter-
rificing the high quality of 24-bit sound. This technology pre-             clockwise rotation is operable only by remote controller.)
vents the sound from becoming distorted during peak peri-
ods, and boosts the low-level signals to improve the S/N ratio              s Coaxial Digital Output (DCM-370)
for a substantially richer dynamic range.                                   s 20-Selection Music Calendar Display
s Advanced Multilevel Noise Shaping DAC                                     s Large, Easy-to-use-read FL Display
   The DCM-370/270 feature a Multilevel Noise Shaping
DAC. This multi-level modulation powerfully removes the
adverse effects of jitter, and because it is built into the output
amp, a clean analog output with supressed high-frequency                    Specification
interference can be directly obtained.
                                                                            s Audio Section                       DCM-370                DCM-270
s 8-Times Oversampling Digital Filter                                       Frequency response............ 2 Hz - 20 kHz ..... 2 Hz - 20 kHz
  Increasing the oversampling frequency by a factor of eight                Dynamic range .................... 100 dB ................ 98 dB
makes possible an extraordinary degree of attenuation and                   Signal-to-noise ratio ............ 112 dB ................ 108 dB
reduces frequency irregularities in the audio range to an                   Total harmonic distortion ..... 0.0025 % ............ 0.0030 %
absolute minimum.                                                           Channel separation ............. 98 dB .................. 96 dB
                                                                            Line out level (Variable)....... 0.2 - 2.0 V rms.... 0.2 - 2.0 V rms
s Remote Control IN/OUT (DCM-370)                                           Digital Output....................... Coaxial ............... --
   When the DCM-370 is cable connected to an amplifier or
receiver that supports the Remote Control IN/OUT feature, you               s General (DCM-370/270)
can operate the DCM-370 via the remote sensor on the amplifier              Power supply....................... AC 120 V, 60 Hz
or receiver. This feature is very handy when the DMC-370 is                 Power consumption............. 15 W
placed in another room.                                                     Dimensions ......................... 434 (W)x 116 (H) x 398 (D) mm
                                                                                                                     17.1" (W)x 4.6" (H) x 15.7" (D)
s Synchronized Recording Function                                           Weight ................................. 6.0 kg, 13.2 lbs

s Full Selection of Program Playback
   Both the DCM-370/270 let you combine up to 32 tracks
from the five or fewer CDs which are loaded.
                                                                                                    *Design and specifications are subject to change without notice.
