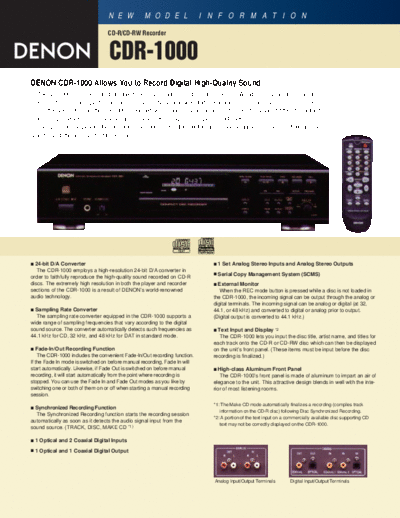

Image preview - the first page of the document
>> Download Описание CDR-1000 documenatation <<
Text preview - extract from the document
N E W M O D E L I N F O R M A T I O N
CD-R/CD-RW Recorder
CDR-1000
DENON CDR-1000 Allows You to Record Digital High-Quality Sound.
The CDR-1000 is a CD recorder that supports both CD-R audio (recordable) discs and CD-RW audio (rewritable) discs. This unit
allows you to record high-quality sound onto CD using DENON's renowned digital technology. You can also play your regular music
CDs on the CDR-1000. Since the CDR-1000 is equipped with a highly accurate Sampling Rate Converter, sound of different sampling fre-
quencies (32 or 48 kHz) can be converted and recorded at the standard CD frequency of 44.1 kHz.
The CDR-1000 also provides the convenient Synchronized Recording function, and its external appearance sports a refined aluminum
panel to match the high quality of the recorded sound.
s 24-bit D/A Converter s 1 Set Analog Stereo Inputs and Analog Stereo Outputs
The CDR-1000 employs a high-resolution 24-bit D/A converter in
s Serial Copy Management System (SCMS)
order to faithfully reproduce the high-quality sound recorded on CD-R
discs. The extremely high resolution in both the player and recorder s External Monitor
sections of the CDR-1000 is a result of DENON's world-renowned When the REC mode button is pressed while a disc is not loaded in
audio technology. the CDR-1000, the incoming signal can be output through the analog or
digital terminals. The incoming signal can be analog or digital (at 32,
s Sampling Rate Converter 44.1, or 48 kHz) and converted to digital or analog prior to output.
The sampling rate converter equipped in the CDR-1000 supports a (Digital output is converted to 44.1 kHz.)
wide range of sampling frequencies that vary according to the digital
sound source. The converter automatically detects such frequencies as s Text Input and Display *2
44.1 kHz for CD, 32 kHz, and 48 kHz for DAT in standard mode. The CDR-1000 lets you input the disc title, artist name, and titles for
each track onto the CD-R or CD-RW disc which can then be displayed
s Fade-In/Out Recording Function on the unit's front panel. (These items must be input before the disc
The CDR-1000 includes the convenient Fade-In/Out recording function. recording is finalized.)
If the Fade In mode is switched on before manual recording, Fade In will
start automatically. Likewise, if Fade Out is switched on before manual s High-class Aluminum Front Panel
recording, it will start automatically from the point where recording is The CDR-1000's front panel is made of aluminum to impart an air of
stopped. You can use the Fade In and Fade Out modes as you like by elegance to the unit. This attractive design blends in well with the inte-
switching one or both of them on or off when starting a manual recording rior of most listening rooms.
session.
*1: The Make CD mode automatically finalizes a recording (compiles track
s Synchronized Recording Function
information on the CD-R disc) following Disc Synchronized Recording.
The Synchronized Recording function starts the recording session
*2: A portion of the text input on a commercially available disc supporting CD
automatically as soon as it detects the audio signal input from the
text may not be correctly displayed on the CDR-1000.
sound source. (TRACK, DISC, MAKE CD *1)
s 1 Optical and 2 Coaxial Digital Inputs
s 1 Optical and 1 Coaxial Digital Output
Analog Input/Output Terminals Digital Input/Output Terminals
N E W M O D E L I N F O R M A T I O N CDR-1000
Specifications
s Audio Section
Channels ..................................................... 2-channel stereo
Disc Played ................................................. Music CD, CD-R audio, CD-RW audio
Disc Record ................................................ CD-R audio, CD-RW audio
Frequency response .................................... 2 Hz - 22.05 kHz
Dynamic range ............................................ 100 dB (Play back)
S/N Ratio .................................................... 108 dB (Play back)
Total Harmonic Distortion ........................... 0.003 %, 1 kHz (Play back)
Line out level (10 kohms load) .................... 2.0 V rms (Fixed)
s General
Power Supply .............................................. AC 120 V, 60 Hz
Power Consumption .................................... 26 W
Dimensions ................................................. 434 (W) x 100.5 (H) x 285 (D) mm
17.1" (W) x 4.0" (H) x 11.2" (D)
Weight ......................................................... 4.5 kg, 9.9 lbs
Note: CD-R audio discs recorded on the CDR-1000 can be played on most, but not all, standard CD players. CD-RW audio
discs recorded on the CDR-1000 cannot be played on models that do not support CD-RW. Some DVD players cannot play-
back CD-R and/or CD-RW audio discs - check your DVD player's owner's manual for further information.
*Design and specifications are subject to change without notice.
DENON ELECTRONICS. NIPPON COLUMBIA CO., LTD.
DIVISION OF DENON CORPORATION (USA) 14-14, AKASAKA 4-CHOME, MINATO-KU, TOKYO 107-8011, JAPAN
19 CHAPIN ROAD, P.O. BOX 867, PINE BROOK, NJ 07058-9777, USA http://www.denon.co.jp
TEL: 973-396-0810 http://www.del.denon.com
DENON CANADA INC.
17 DENISON STREET, MARKHAM ONTARIO, CANADA L3R 1B5
TEL: 905-475-4085 12180300 A No.3 Printed in Japan
