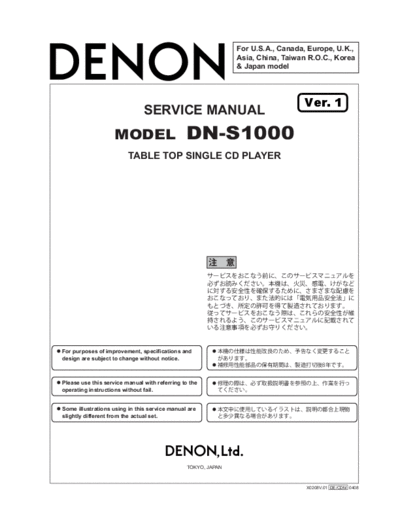

Image preview - the first page of the document
>> Download hfe_denon_dn-s1000_service_en documenatation <<
Text preview - extract from the document
For U.S.A., Canada, Europe, U.K.,
Asia, China, Taiwan R.O.C., Korea
& Japan model
Ver. 1
SERVICE MANUAL
MODEL DN-S1000
TABLE TOP SINGLE CD PLAYER
For purposes of improvement, specifications and
design are subject to change without notice.
Please use this service manual with referring to the
operating instructions without fail.
Some illustrations using in this service manual are
slightly different from the actual set.
TOKYO, JAPAN
X0208V.01 DE/CDM 0408
DN-S1000
SAFETY PRECAUTIONS
The following check should be performed for the continued protection of the customer and service technician.
LEAKAGE CURRENT CHECK
Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis
resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the
power cord is less than 460 kohms, the unit is defective.
LASER RADIATION
Do not stare into beam or view directly with optical instruments, class 3A laser product.
500V
1M
(1)
(2)
(1)
(2)
2
DN-S1000
DISASSEMBLY
(Follow the procedure below in reverse order when reassembling.)
1. Bottom Plate
(1) Remove 6 screws 57 and pull out Bottom Plate.
57 Bottom Plate
57
2. Top Cover unit
(1) Remove 6 screws 61 and 2 screws 59.
(2) Disconnect FFC Cable.
(3) Detach Top Cover unit.
59
61 61
61
59
FFC Cable
61
CX251
Top Cover
Note:
Do not pull out aslant to prevent FFC cable damage.
Do not fail to pull AC cord from wall outlet before disconnect FFC Cable.
If AC cord is remained plugged into wall outlet, power is kept supplied in the unit, which may cause danger.
3
DN-S1000
3. Shield Bracket
(1) Remove 4 screws 58 and 2 screws 67.
(2) Detach Shield Bracket.
58
Shield Bracket
58
67
4. Mecha unit
(1) Remove 2 screws 53 and 2 screws 55.
(2) Disconnect FFC cable.
(3) Detach Mecha Unit.
55
53
53
Mecha unit
FFC Cable
CX301
Note:
Do not pull out aslant to prevent FFC cable damage.
Do not fail to pull AC cord from wall outlet before disconnect the FFC cable.
If AC cord is remained plugged into wall outlet, power is kept supplied in the unit, which may cause danger.
4
DN-S1000
5. Power P.W.B.
(1) Remove 5 screws 58, a screws 60 and a screws 61.
(2) Detach Power P.W.B.
58
60
Power P.W.B.
61
6. Main P.W.B.
(1) Short-circuit the short land above.
(2) Remove a screws 54 and a screws 56.
(3) Disconnect FFC Cable and FPC Cable.
(4) Detach Main P.W.B.
54
Main P.W.B.
FPC Cable
56
Short land for laser diode
FFC Cable
Note:
Do not pull out aslant to prevent FFC cable damage.
5
DN-S1000
7. CD Mecha
(1) Remove 2 screws 53 and pull out Main Pwb Bracket.
(2) Remove 2 screws 55 and pull out Disc Guide.
Main Pwb Bracket
53
53
CD Mecha
Disc Guide
55
55
8. Scratch Disc unit
(1) Remove a screws 66 and pull out Scratch Disc unit.
Scratch Disc unit
66
6
DN-S1000
9. Disc Switch P.W.B.
(1) Detach Slip mat, Anti-Static Sheet and Spring Plate.
(2) Remove 4 screws 56.
(3) Detach Disc Switch P.W.B.
Slip Sheet
Slip mat Anti-Static Sheet
Spring Plate
Disc Switch P.W.B.
56
56
10. Sensor P.W.B. and Scale unit
(1) Remove 2 screws 56 and pull out Sensor Cover and Sensor P.W.B.
(2) Remove a screw 51 and pull out Scale unit.
56
Sensor Cover
Sensor P.W.B.
51
Scale unit
7
DN-S1000
BLOCK DIAGRAM
MAIN UNIT POWER UNIT
25M X'tal 11.2M
LV393 D/A
64M AMP Analog Out
PCM1748
SDRAM
Digital Out
ABCK/ALRCK
DBCK/DLRCK
Driver SERVO DSP
