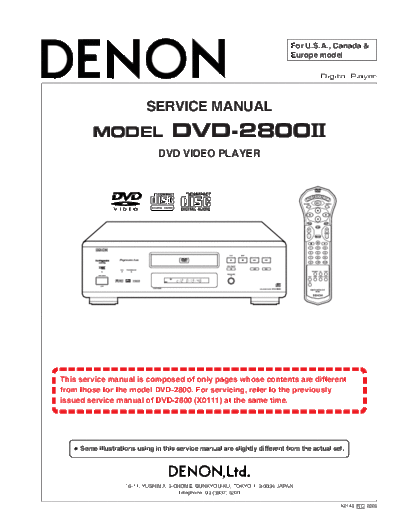

Image preview - the first page of the document
>> Download denon_dvd-2800mk2 documenatation <<
Text preview - extract from the document
For U.S.A., Canada &
Europe model
Digital Player
SERVICE MANUAL
MODEL DVD-2800II
DVD VIDEO PLAYER
This service manual is composed of only pages whose contents are different
from those for the model DVD-2800. For servicing, refer to the previously
issued service manual of DVD-2800 (X0111) at the same time.
Some illustrations using in this service manual are slightly different from the actual set.
16-11, YUSHIMA 3-CHOME, BUNKYOU-KU, TOKYO 113-0034 JAPAN
Telephone: 03 (3837) 5321
X0143 NC 0205
DVD-2800II
SAFETY PRECAUTIONS
The following check should be performed for the continued protection of the customer and service technician.
LEAKAGE CURRENT CHECK
Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis
resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the
power cord is less than 460 kohms, the unit is defective.
SPECIFICATIONS
Signal System: NTSC/PAL
Applicable Discs: (1) DVD/Video discs
1-layer 12 cm single-sided discs, 2-layer 12 cm single-sided discs,
2-layer 12 cm double-sided discs (1 layer per side)
1-layer 8 cm single-sided discs, 2-layer 8 cm single-sided discs,
2-layer 8 cm double-sided discs (1 layer per side)
(2) Compact discs (CD-DA, Video CD)
12 cm discs, 8 cm discs
S-Video Output: Y output level: 1 Vp-p (75 /ohms)
C output level: 0.286 Vp-p (For U.S.A. & Canada model)
0.3 Vp-p (For Europe model)
Output connectors: S connectors, 1 set
AV 1 connector, 1 set (For Europe model)
Video Output: Output level: 1 Vp-p (75 /ohms)
Output connector: Pin-plug jacks, 1 set
AV 1 connector, 1 set (For Europe model)
Component Output: Y output level: 1 Vp-p (75 /ohms)
CB output level: 0.648 Vp-p (75 /ohms) (For U.S.A. & Canada model)
0.7 Vp-p (75 /ohms) (For Europe model)
CR output level: 0.648 Vp-p (75 /ohms) (For U.S.A. & Canada model)
0.7 Vp-p (75 /ohms) (For Europe model)
Output connector: Pin jack, 1 set
RGB Output: Output level: 0.7 Vp-p (75 /ohms) (For Europe model)
Output connector: AV 1 connector, 1 set (For Europe model)
Audio Output: Output level: 2 Vrms, 1 set
Audio Output Properties: (1) Frequency response
1 DVDs (linear PCM) : 2 Hz to 22 kHz (48 kHz sampling)
: 2 Hz to 44 kHz (96 kHz sampling)
2 CDs : 2 Hz to 20 kHz
(2) S/N ratio
1 DVDs : 115 dB
2 CDs : 115 dB
(3) Total harmonic distortion
1 DVDs : 0.0025 % (For Europe model)
: 0.0020 % (For U.S.A. & Canada model)
2 CDs : 0.0025 % (For Europe model)
: 0.0020 % (For U.S.A. & Canada model)
(4) Dynamic range
1 DVDs : 108 dB
2 CDs : 100 dB
Digital Audio Output: Optical digital output : Optical connector, 1 set
Coaxial digital output : Pin jack, 1 set
Power Supply: AC 120 V, 60 Hz (For U.S.A. & Canada model)
AC 230 V, 50 Hz (For Europe model)
Power Consumption: 22 W (For U.S.A. & Canada model)
18 W (For Europe model)
Maximum External Dimensions: 434 (W) ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
