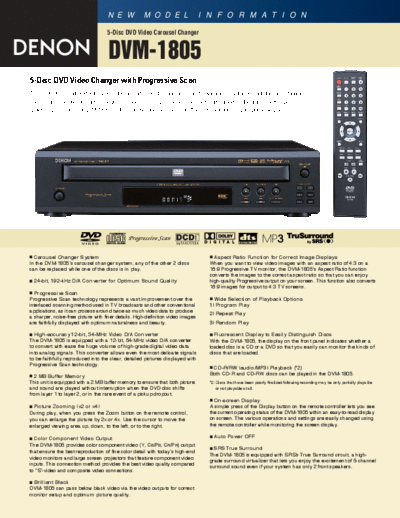

Image preview - the first page of the document
>> Download Описание DVM-1805 documenatation <<
Text preview - extract from the document
N E W M O D E L I N F O R M A T I O N
5-Disc DVD Video Carousel Changer
DVM-1805
5-Disc DVD Video Changer with Progressive Scan
The DVM-1805 is endowed with many of the most advanced technologies currently available, providing you with the most stunning
and realistic experience in sight and sound. For video it is Progressive Scan, to masterfully reproduce the high resolution picture
quality of DVD-Video. The DVM-1805's 5-disc carousel gives you extremely flexible Repeat and Program playback options.
Carousel Changer System Aspect Ratio Function for Correct Image Displays
In the DVM-1805's carousel changer system, any of the other 2 discs When you want to view video images with an aspect ratio of 4:3 on a
can be replaced while one of the discs is in play. 16:9 Progressive TV monitor, the DVM-1805's Aspect Ratio function
converts the images to the correct aspect ratio so that you can enjoy
24-bit, 192-kHz D/A Converter for Optimum Sound Quality high-quality Progressive output on your screen. This function also converts
16:9 images for output to 4:3 TV screens.
Progressive Scan
Progressive Scan technology represents a vast improvement over the Wide Selection of Playback Options
interlaced scanning method used in TV broadcasts and other conventional 1) Program Play
applications, as it can process around twice as much video data to produce
2) Repeat Play
a sharper, noise-free picture with finer details. High-definition video images
are faithfully displayed with optimum naturalness and beauty. 3) Random Play
High-accuracy 12-bit, 54-MHz Video D/A Converter Fluorescent Display to Easily Distinguish Discs
The DVM-1805 is equipped with a 12-bit, 54-MHz video D/A converter With the DVM-1805, the display on the front panel indicates whether a
to convert with ease the huge volume of high-grade digital video data loaded disc is a CD or a DVD so that you easily can monitor the kinds of
into analog signals. This converter allows even the most delicate signals discs that are loaded.
to be faithfully reproduced into the clear, detailed pictures displayed with
Progressive Scan technology.
CD-R/RW (audio/MP3) Playback (*2)
Both CD-R and CD-RW discs can be played in the DVM-1805.
2 MB Buffer Memory
This unit is equipped with a 2 MB buffer memory to ensure that both picture *2: Discs that have been poorly finalized following recording may be only partially playable
and sound are played without interruption when the DVD disc shifts or not playable at all.
from layer 1 to layer 2, or in the rare event of a pickup dropout.
On-screen Display
Picture Zooming (x2 or x4) A simple press of the Display button on the remote controller lets you see
During play, when you press the Zoom button on the remote control, the current operating status of the DVM-1805 within an easy-to-read display
you can enlarge the picture by 2x or 4x. Use the cursor to move the on screen. The various operations and settings are easily changed using
enlarged viewing area up, down, to the left, or to the right. the remote controller while monitoring the screen display.
Auto Power OFF
Color Component Video Output
The DVM-1805 provides color component video (Y, CB/PB, CR/PR) output
SRS True Surround
that ensure the best reproduction of fine color detail with today's high-end
The DVM-1805 is equipped with SRS's True Surround circuit, a high-
video monitors and large screen projectors that feature component video
grade surround virtualizer that lets you enjoy the excitement of 5-channel
inputs. This connection method provides the best video quality compared surround sound even if your system has only 2 front speakers.
to "S"-video and composite video connections.
Brilliant Black
DVM-1805 can pass below black video via the video outputs for correct
monitor setup and optimum picture quality.
M O D E L I N F O R M A T I O N DVM-1805
Specifications
Video Section
Signal system .............................. NTSC
Disc played ................................. DVD Video, Music CD, CD-R/RW (audio/MP3)
Video outputs ............................... 1 set of Composite video output
1 set of S-Video output
1 set of Component video output
Composite output level................. 1 Vp-p (75 ohms)
S-video output level...................... Y output: 1 Vp-p (75 ohms)
C output: 0.286 Vp-p
Component video output level...... Y output: 1 Vp-p (75 ohms)
CB/PB output: 0.7 Vp-p (75 ohms)
CR/PR output: 0.7 Vp-p (75 ohms)
Audio Section
Audio outputs ............................... 1 set of Analog output (L/R)
1 set of Optical digital output
1 set of Coaxial digital output
Audio output level......................... 2 Vrms (1 kHz, 0 dB)
CD audio
Frequency response..................... 20 Hz - 20 kHz
Signal-to-noise ratio ..................... 110 dB
Dynamic range ............................. 94 dB
Total harmonic distortion .............. 0.005 %
General
Power supply................................ AC 120 V, 60 Hz
Power consumption...................... 11 W
Dimensions................................... 435 (W) x 104 (H) x 363 (D) mm
17.1" (W) x 4.1" (H) x 14.4" (D)
Weight .......................................... 4.6 kg, 9.48 lbs
* Design and specifications are subject to change without notice.
* "Dolby", "Dolby Digital", "Pro Logic", and the double-D device are registered trademarks of Dolby Laboratories Licensing Corporation.
* DTS is registered trademarks of DTS Technology.
DENON ELECTRONICS (USA), INC.
19 CHAPIN ROAD, P.O. BOX 867, PINE BROOK, NJ 07058-9777 USA
TEL: 973-396-0810 www.usa.denon.com
DENON CANADA INC.
505 APPLE CREEK BLVD. UNIT 5 MARKHAM, ONTARIO L3R 5B1 CANADA
TEL: 905-475-4085 www.denon.ca
DENON, LTD.
3-16-11 YUSHIMA, BUNKYO-KU, TOKYO 113-0034 JAPAN
12980602 A
