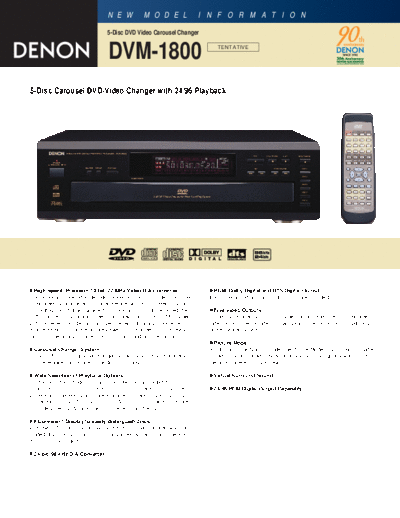

Image preview - the first page of the document
>> Download Описание DVM-1800 documenatation <<
Text preview - extract from the document
N E W M O D E L I N F O R M A T I O N
5-Disc DVD Video Carousel Changer
DVM-1800 TENTATIVE
5-Disc Carousel DVD-Video Changer with 24/96 Playback
s High-speed, Precision 10-bit, 27-MHz Video D/A Converter s PCM, Dolby Digital and DTS Digital Output
The highly accurate video decoder processes the DVD video data (the Both coaxial and optical digital outputs are provided.
component luminance and color difference signals). In order to output
this high-quality digital signal with its original purity still preserved, the s Five Video Outputs
DVM-1800 employs a high-speed, high-precision 10-bit, 27-MHz video 1 Composite video output, 1 "S" video output, and 1 set of component
D/A converter. This design improves the reproducibility of extremely video outputs are provided, allowing easy integration into virtually any
minute details so that the picture viewed on the screen is completely home theater system.
faithful to the original image in both its colors and high resolution.
s Picture Mode
s Carousel Changer System In addition to the Normal mode, the Picture Mode function also provides
In the DVM-1800's carousel changer system, any of the other 4 discs Cinema modes. Cinema mode gives you a picture quality well suited to
can be replaced while one of the discs is in play. the atmosphere of movie viewing.
s Wide Selection of Playback Options s Virtual Surround Sound
1) Program Play: Program Play is possible from all loaded discs, such
as Track 2 of Disc 1, to Track 1 of Disc 3, to Track 8 of Disc 2, etc. s 24/96 PCM Digital Output Capability
2) Repeat: 6 Repeat options are available (1 Track / 1 Disc All / A-B
Repeat / 5 Discs All / DVD All / CD All). If both CDs and DVDs are
loaded, the CD All option lets you repeat only the CDs.
s Fluorescent Display to easily distinguish discs
With the DVM-1800, the display on the front panel indicates whether a
loaded disc is a CD or a DVD so that you easily can monitor the kinds of
discs that are loaded.
s 24-bit, 96-kHz D/A Converter
M O D E L I N F O R M A T I O N DVM-1800
Specifications
s Video Section
Signal system ............................................. NTSC
Disc played ................................................. DVD Video, Video CD, Music CD
Video outputs............................................... 1 Composite video output
1 S-Video output
Component output
Composite output level ................................ 1 Vp-p (75 ohms)
S-video output level ..................................... Y output: 1 Vp-p (75 ohms)
C output: 0.286 Vp-p
Component output level............................... Y output: 1 Vp-p (75 ohms)
CB output: 0.648 Vp-p (75 ohms)
CR output: 0.648 Vp-p (75 ohms)
s Audio Section
Audio outputs............................................... Analog output (L/R)
Optical digital output (Dolby Digital / DTS / Linear PCM)
Coaxial digital output (Dolby Digital / DTS / Linear PCM)
Subwoofer
Audio output level ........................................ 2 Vrms (1 kHz, 0 dB)
DVD linear audio
Frequency response .................................. 2 Hz - 22 kHz / 48 kHz sampling
2 Hz - 44 kHz / 96 kHz sampling
CD audio
Frequency response .................................. 2 Hz - 20 kHz / 44.1 kHz sampling
s General
Power supply ............................................... AC 120 V, 60 Hz
Dimensions .................................................. 434 (W) x 131 (H) x -- (D) mm
17.1" (W) x 5.2" (H) x --" (D)
Weight.......................................................... -- kg, -- lbs
*Design and specifications are subject to change without notice.
*"Dolby", "Dolby Digital", "Pro Logic", and the double-D device are registered trademarks of Dolby Laboratories Licensing Corporation.
*DTS is registered trademarks of DTS Technology.
DENON ELECTRONICS NIPPON COLUMBIA CO., LTD.
DIVISION OF DENON CORPORATION (USA) 14-14, AKASAKA 4-CHOME, MINATO-KU, TOKYO 107-8011, JAPAN
19 CHAPIN ROAD, P.O. BOX 867, PINE BROOK, NJ 07058-9777 USA http://www.denon.co.jp
TEL: 973-396-0810 http://www.del.denon.com
DENON CANADA INC.
17 DENISON STREET, MARKHAM ONTARIO, CANADA L3R 1B5
TEL: 905-475-4085
12280600 A Printed in Japan
