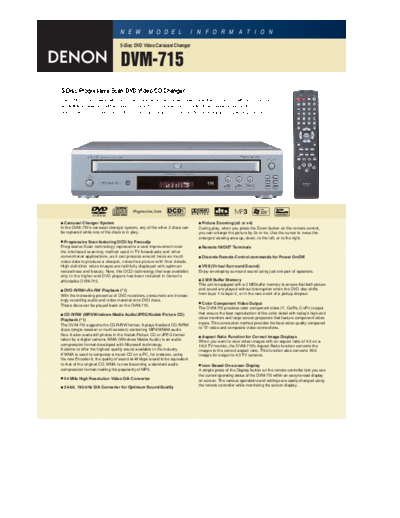

Image preview - the first page of the document
>> Download Описание DVM-715 documenatation <<
Text preview - extract from the document
N E W M O D E L I N F O R M A T I O N
5-Disc DVD Video Carousel Changer
DVM-715
5-Disc Progressive Scan DVD Video/CD Changer
The DVM-715 is empowered with many of the most advanced technologies currently available, providing you with the most stunning
and realistic experience in sight and sound. For video it is Progressive Scan, to masterfully reproduce the high resolution
picture quality of DVD-Video. The DVM-715's 5-disc carousel gives you extremely flexible Repeat and Program playback options.
I Carousel Changer System I Picture Zooming (x2 or x4)
In the DVM-715's carousel changer system, any of the other 2 discs can During play, when you press the Zoom button on the remote control,
be replaced while one of the discs is in play. you can enlarge the picture by 2x or 4x. Use the cursor to move the
enlarged viewing area up, down, to the left, or to the right.
I Progressive Scan featuring DCDi by Faroudja
Progressive Scan technology represents a vast improvement over I Remote IN/OUT Terminals
the interlaced scanning method used in TV broadcasts and other
conventional applications, as it can process around twice as much I Discrete Remote Control commands for Power On/Off
video data to produce a sharper, noise-free picture with finer details.
High-definition video images are faithfully displayed with optimum I VSS (Virtual Surround Sound)
naturalness and beauty. Now, this DCDi technology that was available Enjoy enveloping surround sound using just one pair of speakers.
only in the higher-end DVD players has been included in Denon's
affordable DVM-715. I 2 MB Buffer Memory
This unit is equipped with a 2 MB buffer memory to ensure that both picture
I DVD-R/RW/+R/+RW Playback (*1) and sound are played without interruption when the DVD disc shifts
With the increasing presence of DVD recorders, consumers are increas- from layer 1 to layer 2, or in the rare event of a pickup dropout.
ingly recording audio and video material onto DVD discs.
I Color Component Video Output
These discs can be played back on the DVM-715.
The DVM-715 provides color component video (Y, CB/PB, CR/PR) output
I CD-R/RW (MP3/Windows Media Audio/JPEG/Kodak Picture CD) that ensure the best reproduction of fine color detail with today's high-end
Playback (*1) video monitors and large screen projectors that feature component video
The DVM-715 supports the CD-R/RW format. It plays finalized CD-R/RW inputs. This connection method provides the best video quality compared
discs (single-session or multi-session) containing MP3/WMA8 audio to "S"-video and composite video connections.
files. It also reads still photos in the Kodak Picture CD or JPEG format I Aspect Ratio Function for Correct Image Displays
taken by a digital camera. WMA (Windows Media Audio) is an audio When you want to view video images with an aspect ratio of 4:3 on a
compression format developed with Microsoft technology. 16:9 TV monitor, the DVM-715's Aspect Ratio function converts the
It claims to offer the highest quality sound available in the industry. images to the correct aspect ratio. This function also converts 16:9
If WMA is used to compress a music CD on a PC, for instance, using images for output to 4:3 TV screens.
the new Encoder 8, the quality of sound at 48 kbps is said to be equivalent
to that of the original CD. WMA is now becoming a standard audio I Icon Based On-screen Display
compression format rivalling the popularity of MP3. A simple press of the Display button on the remote controller lets you see
the current operating status of the DVM-715 within an easy-to-read display
I 54 MHz High Resolution Video D/A Converter on screen. The various operations and settings are easily changed using
I
the remote controller while monitoring the screen display.
24-bit, 192-kHz D/A Converter for Optimum Sound Quality
M O D E L I N F O R M A T I O N DVM-715
I Fluorescent Display to Easily Distinguish Discs Specifications
With the DVM-715, the display on the front panel indicates whether a I Video Section
loaded disc is a CD or a DVD so that you easily can monitor the kinds of Signal system .............................. NTSC
discs that are loaded. Disc played DVD Video, Music CD,
CD-R/RW (Audio/MP3/WMA/JPEG),
DVD-R (Video Mode),
I 24/96 PCM Digital Output Capability DVD-RW (Video mode/Video Recording Mode)
DVD+R/+RW
I PCM, Dolby Digital and DTS Digital Output Video outputs ............................... 1 set of Composite video output
1 set of S-Video output
I Auto Power OFF 1 set of Component video output
Composite output level................. 1 Vp-p (75 ohms)
S-video output level...................... Y output: 1 Vp-p (75 ohms)
(*1): Discs that have been poorly finalized following recording may be only partially playable or not C output: 0.286 Vp-p
playable at all. Component video output level...... Y output: 1 Vp-p (75 ohms)
CB/PB output: 0.7 Vp-p (75 ohms)
CR/PR output: 0.7 Vp-p (75 ohms)
I Audio Section
Audio outputs ............................... 1 set of Analog output (L/R)
1 set of Optical digital output
1 set of Coaxial digital output
Audio output level......................... 2 Vrms (1 kHz, 0 dB)
CD audio
Frequency response..................... 4 Hz - 20 kHz
Signal-to-noise ratio ..................... 115 dB
Dynamic range ............................. 98 dB
Total harmonic distortion .............. 0.003 %
I General
Power supply................................ AC 120 V, 60 Hz
Power consumption...................... 11 W
Dimensions................................... 435 (W) x 104 (H) x 363 (D) mm
17.1" (W) x 4.1" (H) x 14.4" (D)
Weight .......................................... 4.6 kg, 9.48 lbs
* Design and specifications are subject to change without notice.
* "Dolby", "Dolby Digital", "Pro Logic", and the double-D device are registered trademarks of Dolby Laboratories Licensing Corporation.
* "dts" is a registered trademark of dts Technology.
* "DCDiTM" is a trademark of Faroudja, a division of Genesis Microchip Inc.
