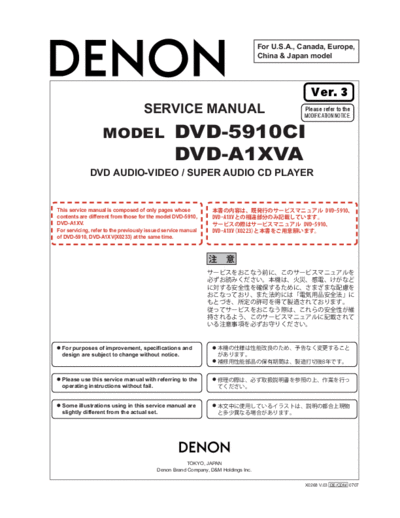

Image preview - the first page of the document
>> Download Схема DVD-5910CI & DVD-A1XVA documenatation <<
Text preview - extract from the document
For U.S.A., Canada, Europe,
China & Japan model
Ver. 3
SERVICE MANUAL Please refer to the
MODIFICATION NOTICE.
MODEL DVD-5910CI
DVD-A1XVA
DVD AUDIO-VIDEO / SUPER AUDIO CD PLAYER
This service manual is composed of only pages whose
contents are different from those for the model DVD-5910,
DVD-A1XV.
For servicing, refer to the previously issued service manual
of DVD-5910, DVD-A1XV(X0233) at the same time.
For purposes of improvement, specifications and
design are subject to change without notice.
Please use this service manual with referring to the
operating instructions without fail.
Some illustrations using in this service manual are
slightly different from the actual set.
TOKYO, JAPAN
Denon Brand Company, D&M Holdings Inc.
X0268 V.03 DE/CDM 0707
DVD-5910CI/DVD-A1XVA
The DVD-5910CI/A1XVA is a model with the HDMI
scaler upgraded to 1080P.
When service processing, please note that there
are differences with the original model (DVD-5910/
A1XV), as described below.
1. Main unit
When the power is turned on, the model name is displayed
on the fluorescent tube.
On the original model "DVD-5910" or "DVD-A1XV" was
displayed, but on models upgraded to 1080P,
"DVD-5910CI" or "DVD-A1XVA" is displayed.
2. 00D GU-3654S : Distinguishing between
the new and old scaler units
It is possible to distinguish between the new and old scaler
units by what is printed on the surface of IC501 mounted
on the Video 2 unit.
A "4C" printed at the bottom left indicates the old version, a
"5C" the new version. (Refer to the diagram below)
XILINX
XILINX SPARTAN SPARTAN
SPARTAN SPARTAN XC3S1000 XC3S1000
XC3S1000 XC3S1000 FT256AMQ0340 FT256AMQ0340
FT256AMQ0340 FT256AMQ0340 F12788660M F12788660M
F12788660M F12788660M 4C 5C
4C 5C
(Product with old version scaler) (Product with new version scaler)
3. Serial number
For products upgraded to 1080P, the last 7 digits of the
serial number indicated on the ratings, control card and
warranty start at "8420001". (Some units carrying a serial
number of the original model (through 8419999) are
upgrade compatible. Check the model and serial number
before service processing.)
4. Parts list
Below is a list of the parts that have been added or
changed with the 1080P upgrade.
Page 95
DVD5910CI, A1XVA Modification Parts List of 00DGU-3618D Main PWB UNIT ASS'Y
Ref No. Part No. Part Name Remarks Q'ty New
IC104 00D GEN 8079-* FE/BE ROM SUB ASSY MBM29LV160BE90TN 1
* : Version of firmware. Update to the newest firmware.)
Page 110
DVD5910CI, A1XVA Modification Parts List of 00DGU-3653* SYSTEM P.W.B. UNIT ASS'Y
Ref No. Part No. Part Name Remarks Q'ty New
IC104 00D GEN 8091-* HDMI 1080P OUT PUT (SYS) M30620 FCPGP(5910-1) 1
* : Version of firmware. Update to the newest firmware.)
2
DVD-5910CI/DVD-A1XVA
Page125
DVD5910CI, A1XVA Modification Parts List of Exploded View
Ref No. Part No. Part Name Remarks Q'ty New
4-2 00DGU-3654S1 SCALER UNIT(E3/E2/E1C) for E3, E2, E1C 1 *
4-2 00DGU-3654S2 SCALER UNIT(JP) for JP 1 *
Page 128
DVD5910CI, A1XVA Addendum Parts List of Exploded View
Ref No. Part No. Part Name Remarks Q'ty New
232 00D 513 4122 008 1080P LABEL 1 *
See page 4 for instructions on applying the 1080P LABEL.
Page 134
DVD5910CI, A1XVA Addendum Parts List of Packing & Accessories
Ref No. Part No. Part Name Remarks Q'ty New
344 00D 511 4441 000 1080P SHEET(E3) for E3 1 *
344 00D 511 4442 009 1080P SHEET(E2) for E2 1 *
344 00D 511 4443 008 1080P SHEET(E1C) for E1C 1 *
344 00D 511 4440 001 1080P SHEET(JP) for JP 1 *
355 00D 513 4123 007 LABEL CI for E3 6 *
355 00D 513 4124 006 LABEL A for E2, E1C, JP 6 *
356 00D 513 4145 001 UPGRADED LABEL(1080P) CARTON 2 *
357 00D 513 4162 000 CI STICKER for E3 2 2
See page 4, 5 for instructions on applying the LABELCI and LABEL A.
See page 6 for instructions on applying the UPGRADED LABEL(1080P) CARTON and CI STICKER.
DVD5910CI, A1XVA Modification Parts List of Packing & Accessories
Ref No. Part No. Part Name Remarks Q'ty New
313 00D 501 2272 135 CARTON CASE(5910 : CI) for E3 1 *
313 00D 501 2272 148 CARTON CASE(A1XVJP: A) for JP 1 *
2
313 00D 501 2272 151 CARTON CASE(A1XVEX : A) for E2, E1C 1 *
322 00D 511 4258 206 INST. MANUAL(A1XVJP) for JP/DENON LINK 3rd/1080P 1 *
336 00D 517 1413 097 UPC LABEL(DVD5910CI) for E3 1 *
336 00D 517 1484 068 E2 POS LABEL for E2 1 *
336 00D 517 1477 059 POS LABEL(A1XVASP) for JP 1 *
No. 355 is not required when using the changed carton case (No. 313).
3
DVD-5910CI/DVD-A1XVA
Applying the label
1. Applying the 1080P LABEL 1. 1080P LABEL
Apply the 1080P LABEL to the bottom left of the FRONT PANEL, as shown on the diagram below. 1080P LABEL FRONT PANEL
1080P LABEL 1080P LABEL
(Apply with a maximum slant of no more than 0.2 mm 0.2mm
in the lengthwise direction.)
FRONT PANEL FRONT PANEL
Taper line
(Bottom of panel) Line up the bottom side of the 1080P LABEL with the taper line 1080P LABEL
at the bottom of the panel, and apply with the left side of the 0.5mm( 0.3mm)
label 0.5 mm ( 0.3 mm) from the edge of the panel.
0.5mm 0.3mm 0.5mm 0.3mm
2. Applying the LABEL CI (for E3) 2. LABEL CI (E3)
Apply six LABEL CI to the CARTON CASE (5910), as shown on the diagram below. LABEL CI CARTON CASE(5910)
(The same label is used in all positions.)
00D5012272106 00D5012272106
3 3 3 3
8 8 8 8
23.0kg .0880 23.0kg .0880 23.0kg .0880 23.0kg .0880
Denon Brand Company Denon Brand Company Denon Brand Company Denon Brand Company
LABEL CI LABEL CI
(Apply with a maximum slant of 0.5 mm)
0.5mm
C.L. Line up the LABEL CI with the center (C.L.) of the C.L. LABEL CI "DVD-5910" (C.L.)
"DVD-5910" and apply leaving a space of 5 mm ( 2 mm). 5mm( 2mm)
5mm 2mm 5mm 2mm
4
DVD-5910CI/DVD-A1XVA
3. Applying the LABEL A (for E2, E1C) 3. LABEL A (E2 E1C)
Apply six LABEL A to the CARTON CASE (E2, E1C), as shown on the diagram below. LABEL A CARTON CASE(E2 E1C)
(The same label is used in all positions.)
00D5012272122 00D5012272122
3 3 3 3
8 8 8 8
23.0kg .0880 23.0kg .0880 23.0kg .0880 23.0kg .0880
Denon Brand Company Denon Brand Company Denon Brand Company Denon Brand Company
LABEL A LABEL A
(Apply with a maximum slant of 0.5 mm)
0.5mm
C.L. C.L.
5mm 2mm 5mm 2mm
4. LABEL A (JP)
LABEL A CARTON CASE(JP)
LABEL A
b
a b
LABEL A
a
LABEL A
0.5mm
C.L. LABEL A DVD-A1XV-SP (C.L.)
"P" 5mm( 2mm)
5mm 2mm
5
2 DVD-5910CI/DVD-A1XVA
5. Applying the UPGRADED LABEL(1080P) CARTON and CI STICKER (for E3) 5. UPGRADED LABEL(1080P) CARTON CI STICKER (E3)
Apply the UPGRADED LABEL(1080P) CARTON and CI STICKER to the CARTON CASE(E3), UPGRADED LABEL(1080P) CARTON CI STICKER CARTON CASE(E3)
as shown on the diagram below. (The same labels is used in two positions.) 2
Apply the CI STICKER at the point where Line up the outer edges of the UPGRAEDE LABEL a b UPGRAEDE LABEL(1080P) CARTON
the extensions of lines a and b cross. (1080P) CARTON with the printed line and attach CI STICKER
Line a a
8 8
DVD-5910 DVD-5910
23.0kg .0880 23.0kg .0880
Denon Brand Company Denon Brand Company
Line b b
Line up the frame printed on the label with the printed line and attach.
6. Applying the UPGRADED LABEL(1080P) CARTON (for E2, E1C) 6. UPGRADED LABEL(1080P) CARTON (E2, E1C)
Apply the UPGRADED LABEL(1080P) CARTON to the CARTON CASE(E2, E1C), as shown on the diagram below. UPGRADED LABEL(1080P) CARTON CARTON CASE(E2, E1C) 2
(The same labels is used in two positions.)
Line up the outer edges of the UPGRAEDE LABEL
(1080P) CARTON with the printed line and attach. UPGRAEDE LABEL(1080P) CARTON
8 8
DVD-A1XV DVD-A1XV
23.0kg .0880 23.0kg .0880
Denon Brand Company Denon Brand Company
Line up the frame printed on the label with the printed line and attach.
7. UPGRADED LABEL(1080P) CARTON (JP)
UPGRADED LABEL(1080P) CARTON CARTON CASE(JP) 2
UPGRAEDE LABEL(1080P) CARTON
8
DVD-A1XV-SP
SERIAL NO. 23.0kg .0880
Denon Consumer Marketing Co.,Ltd.
6
2 DVD-5910CI/DVD-A1XVA
MODIFICATION OF PARTS LIST
For electric parts, changed part numbers and part names
are indicated at "Remarks".
These changes in parts are not reflected in the schematic
diagrams.
Page 91-123
DVDA1XVA Modification Parts List of P.W.B. UNIT ASS'Y (for E2 model only)
Page 91-94
00DSPK-576-6 IEEE 1394 UNIT (DVDA1XVA) SPK 3
The ROM on the unit GU-3517F is customized with the key for IEEE1394.
The customized key for IEEE1394 is not installed on the ROM as to GU-3517F.
Ref. No. Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC203 00D 262 3264 904 RN5VD15AA +C 00D 262 3666 900 RN5VD15AA-TR-F
IC205 00D 262 3265 903 LM1117MPX-1.8 +C 00D 262 3642 908 LM1117MPX-1.8/NOPB
IC206 00D 262 3263 905 RN5VD30AA +C 00D 262 3665 901 RN5VD30AA-TR-F
D501-504 00D 276 0795 909 HVU363A +C 00D 276 0838 905 HVU363ATRU-E
OTHERS PARTS GROUP
SY101-108 00D 276 0797 907 PGB0010603NR +C 00D 276 0836 907 PGB1010603NR
Page 95-100
00DSPK-570-3 MAIN UNIT (DVDA1XVA) SPK 3
The ROM on the unit GU-3618F is customized with DENON Link ID.
The customized DENON Link ID is not installed on the ROM as to GU-3618F.
Ref. No. Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC505 00D 262 3210 000 M11L16161SA-45T +REF 00D2623409002 MSM51V18165F-50TSK-7
CAPACITORS GROUP
C949 00D 257 2010 937 CS77B1A220MT +C 00D2572015929 CS77B1A220MT
C954 00D 257 2010 937 CS77B1A220MT +C 00D2572015929 CS77B1A220MT
OTHERS PARTS GROUP
CX241 00D 205 1264 903 24P FFC BASE(P=0.5)L +REF 00D2051264916 24P-FFC-BASE(9631SG)
(for HOP-1200W)
Page 101-105
00DGU-3653A SYSTEM P.W.B. UNIT ASS'Y
Ref. No. Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC502 00D 262 3476 006 EP1C12Q240C6N-AD24 00D2623575004 EP1C12Q240C6N
TR302 00D 273 0426 907 2SC2412KLNT146 +C 00D2730490904 2SC2412KFD6T146E
CAPACITORS GROUP
C528 00D 254 4558 702 CE04W1H101MC(RFS) 00D2544703706 CE04W1H101MC(RFS#A)
7
2 DVD-5910CI/DVD-A1XVA
Page 106-111
00DGU-3654A VIDEO P.W.B. UNIT ASS'Y
Ref. No. Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC501 00D 262 3462 007 XC3S1000-4FT256C 00D2623491007 XC3S1000-5FT256C
IC509 00D 262 3463 909 ICS664-03 00D2623655908 ICS664G-03LFT
CAPACITORS GROUP
C146 00D 257 2010 937 CS77B1A220MT +C 00D2572015929 CS77B1A220MT
C531 00D 257 2010 937 CS77B1A220MT +C 00D2572015929 CS77B1A220MT
C540 00D 257 2010 924 CS77B1A470MT +C 00D2572015932 CS77B1A470MT
C541-543 00D 257 2010 937 CS77B1A220MT +C 00D2572015929 CS77B1A220MT
C557 00D 257 2010 937 CS77B1A220MT +C 00D2572015929 CS77B1A220MT
C575 00D 257 2010 937 CS77B1A220MT +C 00D2572015929 CS77B1A220MT
C640 00D 257 2010 937 CS77B1A220MT +C 00D2572015929 CS77B1A220MT
C659 00D 257 2010 937 CS77B1A220MT +C 00D2572015929 CS77B1A220MT
C686 00D 257 2010 937 CS77B1A220MT +C 00D2572015929 CS77B1A220MT
Page 112-117
00DGU-3655A AUDIO P.W.B. UNIT ASS'Y
Ref. No. Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
TR601 00D 273 0426 907 2SC2412KLNT146 +C 00D2730490904 2SC2412KFD6T146E
RESISTORS GROUP
R305 00D 241 2422 944 RD14B2E102JT(PSNB) 00D2412467983 RD14B2E102JT(AMRS)
R411 00D 241 2424 984 RD14B2E103JT(PSNB) 00D2412470925 RD14B2E103JT(AMRS)
R412-415 00D 241 2421 932 RD14B2E361JT(PSNB) 00D2412466971 RD14B2E361JT(AMRS)
R416,417 00D 241 2422 960 RD14B2E122JT(PSNB) 00D2412468908 RD14B2E122JT(AMRS)
R418,419 00D 241 2421 990 RD14B2E621JT(PSNB) 00D2412467938 RD14B2E621JT(AMRS)
R420,421 00D 241 2422 960 RD14B2E122JT(PSNB) 00D2412468908 RD14B2E122JT(AMRS)
R422,423 00D 241 2421 990 RD14B2E621JT(PSNB) 00D2412467938 RD14B2E621JT(AMRS)
R424,425 00D 241 2420 920 RD14B2E121JT(PSNB) 00D2412465969 RD14B2E121JT(AMRS)
R426,427 00D 241 2421 903 RD14B2E271JT(PSNB) 00D2412466942 RD14B2E271JT(AMRS)
R428,429 00D 241 2419 973 RD14B2E750JT(PSNB) 00D2412465914 RD14B2E750JT(AMRS)
R430,431 00D 241 2421 945 RD14B2E391JT(PSNB) 00D2412466984 RD14B2E391JT(AMRS)
R433 00D 241 2423 901 RD14B2E182JT(PSNB) 00D2412468940 RD14B2E182JT(AMRS)
R435 00D 241 2426 940 RD14B2E473JT(PSNB) 00D2412471982 RD14B2E473JT(AMRS)
R436 00D 241 2423 914 RD14B2E202JT(PSNB) 00D2412468953 RD14B2E202JT(AMRS)
R438 00D 241 2427 923 RD14B2E104JT(PSNB) 00D2412472965 RD14B2E104JT(AMRS)
R511 00D 241 2424 984 RD14B2E103JT(PSNB) 00D2412470925 RD14B2E103JT(AMRS)
R512-515 00D 241 2421 932 RD14B2E361JT(PSNB) 00D2412466971 RD14B2E361JT(AMRS)
R516,517 00D 241 2422 960 RD14B2E122JT(PSNB) 00D2412468908 RD14B2E122JT(AMRS)
R518 00D 241 2421 990 RD14B2E621JT(PSNB) 00D2412467938 RD14B2E621JT(AMRS)
R519 00D 241 2422 960 RD14B2E122JT(PSNB) 00D2412468908 RD14B2E122JT(AMRS)
R520,521 00D 241 2421 990 RD14B2E621JT(PSNB) 00D2412467938 RD14B2E621JT(AMRS)
R522 00D 241 2422 960 RD14B2E122JT(PSNB) 00D2412468908 RD14B2E122JT(AMRS)
R523 00D 241 2421 990 RD14B2E621JT(PSNB) 00D2412467938 RD14B2E621JT(AMRS)
R524 00D 241 2420 920 RD14B2E121JT(PSNB) 00D2412465969 RD14B2E121JT(AMRS)
R525 00D 241 2421 903 RD14B2E271JT(PSNB) 00D2412466942 RD14B2E271JT(AMRS)
R526 00D 241 2420 920 RD14B2E121JT(PSNB) 00D2412465969 RD14B2E121JT(AMRS)
R527 00D 241 2421 903 RD14B2E271JT(PSNB) 00D2412466942 RD14B2E271JT(AMRS)
R528 00D 241 2419 973 RD14B2E750JT(PSNB) 00D2412465914 RD14B2E750JT(AMRS)
R529,530 00D 241 2421 945 RD14B2E391JT(PSNB) 00D2412466984 RD14B2E391JT(AMRS)
R531 00D 241 2419 973 RD14B2E750JT(PSNB) 00D2412465914 RD14B2E750JT(AMRS)
8
2 DVD-5910CI/DVD-A1XVA
Ref. No. Part No. Part Name Remarks Q'ty New
R533 00D 241 2423 901 RD14B2E182JT(PSNB) 00D2412468940 RD14B2E182JT(AMRS)
R535 00D 241 2426 940 RD14B2E473JT(PSNB) 00D2412471982 RD14B2E473JT(AMRS)
R536 00D 241 2423 914 RD14B2E202JT(PSNB) 00D2412468953 RD14B2E202JT(AMRS)
R538 00D 241 2427 923 RD14B2E104JT(PSNB) 00D2412472965 RD14B2E104JT(AMRS)
CAPACITORS GROUP
C302 00D 254 4558 728 CE04W1H471MC(RFS) 00D2544703735 CE04W1H471MC(RFS#A)
C307,308 00D 254 4558 728 CE04W1H471MC(RFS) 00D2544703735 CE04W1H471MC(RFS#A)
C310 00D 254 4558 728 CE04W1H471MC(RFS) 00D2544703735 CE04W1H471MC(RFS#A)
C402 00D 254 4557 936 CE04W1H100MT(RFS) 00D2544702956 CE04W1H100MT(RFS#A)
C408 00D 254 4558 702 CE04W1H101MC(RFS) 00D2544703706 CE04W1H101MC(RFS#A)
C410,411 00D 254 4557 952 CE04W1H470MT(RFS) 00D2544773930 CE04W1E470MT(RFS#A)
C414 00D 254 4558 702 CE04W1H101MC(RFS) 00D2544703706 CE04W1H101MC(RFS#A)
C446 00D 254 4445 705 CE04W1H471MC(ARSG) 00D2544778744 CE04W1H471MC(ROG#A)
C449 00D 254 4445 705 CE04W1H471MC(ARSG) 00D2544778744 CE04W1H471MC(ROG#A)
C454 00D 254 4558 702 CE04W1H101MC(RFS) 00D2544703706 CE04W1H101MC(RFS#A)
C505 00D 254 4557 936 CE04W1H100MT(RFS) 00D2544702956 CE04W1H100MT(RFS#A)
C508 00D 254 4558 702 CE04W1H101MC(RFS) 00D2544703706 CE04W1H101MC(RFS#A)
C510,511 00D 254 4557 952 CE04W1H470MT(RFS) 00D2544773930 CE04W1E470MT(RFS#A)
C514 00D 254 4558 702 CE04W1H101MC(RFS) 00D2544703706 CE04W1H101MC(RFS#A)
C545 00D 254 4445 705 CE04W1H471MC(ARSG) 00D2544778744 CE04W1H471MC(ROG#A)
C549 00D 254 4445 705 CE04W1H471MC(ARSG) 00D2544778744 CE04W1H471MC(ROG#A)
C554 00D 254 4558 702 CE04W1H101MC(RFS) 00D2544703706 CE04W1H101MC(RFS#A)
C605 00D 254 4558 728 CE04W1H471MC(RFS) 00D2544703735 CE04W1H471MC(RFS#A)
C611-613 00D 254 4558 715 CE04W1H221MC(RFS) 00D2544703719 CE04W1H221MC(RFS#A)
C614 00D 254 4558 702 CE04W1H101MC(RFS) 00D2544703706 CE04W1H101MC(RFS#A)
C731 00D 254 4558 715 CE04W1H221MC(RFS) 00D2544703719 CE04W1H221MC(RFS#A)
C734 00D 254 4558 715 CE04W1H221MC(RFS) 00D2544703719 CE04W1H221MC(RFS#A)
C741 00D 254 4557 936 CE04W1H100MT(RFS) 00D2544702956 CE04W1H100MT(RFS#A)
C744 00D 254 4558 702 CE04W1H101MC(RFS) 00D2544703706 CE04W1H101MC(RFS#A)
C747 00D 254 4558 702 CE04W1H101MC(RFS) 00D2544703706 CE04W1H101MC(RFS#A)
C750,751 00D 254 4557 952 CE04W1H470MT(RFS) 00D2544773930 CE04W1E470MT(RFS#A)
C831 00D 254 4558 715 CE04W1H221MC(RFS) 00D2544703719 CE04W1H221MC(RFS#A)
C834 00D 254 4558 715 CE04W1H221MC(RFS) 00D2544703719 CE04W1H221MC(RFS#A)
C841 00D 254 4557 936 CE04W1H100MT(RFS) 00D2544702956 CE04W1H100MT(RFS#A)
C844 00D 254 4558 702 CE04W1H101MC(RFS) 00D2544703706 CE04W1H101MC(RFS#A)
C847 00D 254 4558 702 CE04W1H101MC(RFS) 00D2544703706 CE04W1H101MC(RFS#A)
C850,851 00D 254 4557 952 CE04W1H470MT(RFS) 00D2544773930 CE04W1E470MT(RFS#A)
C931 00D 254 4558 715 CE04W1H221MC(RFS) 00D2544703719 CE04W1H221MC(RFS#A)
C934 00D 254 4558 715 CE04W1H221MC(RFS) 00D2544703719 CE04W1H221MC(RFS#A)
C941 00D 254 4557 936 CE04W1H100MT(RFS) 00D2544702956 CE04W1H100MT(RFS#A)
C944 00D 254 4558 702 CE04W1H101MC(RFS) 00D2544703706 CE04W1H101MC(RFS#A)
C947 00D 254 4558 702 CE04W1H101MC(RFS) 00D2544703706 CE04W1H101MC(RFS#A)
C950,951 00D 254 4557 952 CE04W1H470MT(RFS) 00D2544773930 CE04W1E470MT(RFS#A)
OTHERS PARTS GROUP
00D 471 3303 016 3X6 CBS-Z 0RD4713303016 3X6 CBS-Z
9
2 DVD-5910CI/DVD-A1XVA
Page 118-121
00DGU-3656A POWER/DISPLAY P.W.B. UNIT ASS'Y
Ref. No. Part No. Part Name Remarks Q'ty New
CAPACITORS GROUP
C979,980 00D 254 4558 728 CE04W1H471MC(RFS) 00D2544703735 CE04W1H471MC(RFS#A)
C995 00D 254 4557 936 CE04W1H100MT(RFS) 00D2544702956 CE04W1H100MT(RFS#A)
C998 00D 254 4558 702 CE04W1H101MC(RFS) 00D2544703706 CE04W1H101MC(RFS#A)
OTHERS PARTS GROUP
00D 471 3303 016 3X6 CBS-Z 0RD4713303016 3X6 CBS-Z
Page 122-123
00DGU-3657 IP P.W.B. UNIT ASS'Y
Ref. No. Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC101 00D 262 3471 001 SXT2-100 00D2623656004 SXT2LF-100
IC701-704 00D 262 3479 016 EM6A9320BI-4M 00D2623479003 EM6A9320BI-4MG
CAPACITORS GROUP
C119 00D 257 2010 937 CS77B1A220MT +C 00D2572015929 CS77B1A220MT
C142 00D 257 2010 937 CS77B1A220MT +C 00D2572015929 CS77B1A220MT
C759 00D 257 2010 911 CS77B1A101MT +C 00D2572015916 CS77B1A101MT
C760 00D 257 2010 937 CS77B1A220MT +C 00D2572015929 CS77B1A220MT
C808 00D 257 2010 924 CS77B1A470MT +C 00D2572015932 CS77B1A470MT
C810 00D 257 2010 924 CS77B1A470MT +C 00D2572015932 CS77B1A470MT
C909 00D 257 2010 911 CS77B1A101MT +C 00D2572015916 CS77B1A101MT
C910 00D 257 2010 924 CS77B1A470MT +C 00D2572015932 CS77B1A470MT
C911 00D 257 2010 937 CS77B1A220MT +C 00D2572015929 CS77B1A220MT
Page 125-128
DVD5910CI, A1XVA Modification Parts List of Exploded View
Ref. No. Part No. Part Name Remarks Q'ty New
1 00DSPK-576-5 IEEE1394 UNIT (DVDA1XV) SPK 00DGU-3517E : for E1C , JP 1 3
1 00DSPK-576-6 IEEE1394 UNIT (DVDA1XV) SPK 00DGU-3517F : for E2(RoHS) (Stamped "A30C5") 1 3
2 00DSPK-570-1 MAIN UNIT (DVD5910) SPK 00DGU-3618D : for E3 , E1C , JP 1 3
2 00DSPK-570-3 MAIN UNIT (DVDA1XV) SPK 00DGU-3618FE : for E2(RoHS) (Stamped "A30C5") 1 3
3 00DGU-3653A SYSTEM UNIT for E2 ( Stamped "A30C5" ) 1
4 00DGU-3654A VIDEO UNIT for E2 ( Stamped "A30C5" ) 1
4 00DGU-3654A VIDEO UNIT for E1C 1
5 00DGU-3655A AUDIO UNIT for E2 ( Stamped "A30C5" ) 1
5 00DGU-3655A AUDIO UNIT for E1C 1
6 00DGU-3656A POWER/DISPLAY UNIT for E2 ( Stamped "A30C5" ) 1
6 00DGU-3656A POWER/DISPLAY UNIT for E1C 1
7 00DGU-3657 I/P UNIT for E3 , E1C , JP 1
7 00DGU-3657 I/P UNIT for E2 ( Stamped "A30C5" ) 1
16 00D1051471218 REAR PANEL(JP) for JP 1
16 00D1051471234 REAR PANEL(SPE2) for E2 1
16 00D1051471247 REAR PANEL(SPE1C) for E1C 1
19 0RD 445 0048 016 CORD HOLDER (L50) 3
29 00D 233 6457 011 POWER TRANS(E2) for E2 , E1C 1
00D2336561004 POWER TRANS(E2_ROHS)
51 00D 144 2916 201 FRONT PANEL(BKE3) Black model 1
10
2 DVD-5910CI/DVD-A1XVA
Ref. No. Part No. Part Name Remarks Q'ty New
51 00D 144 2916 214 FRONT PANEL(SP) P.Silver model 1
216 00D 009 0283 015 24P FPC(0.5) AU PU-MAIN for HOP-1200W 1
100 0RD 473 7015 005 3X6 CBTS(S)-B 75
101 0RD 473 7006 030 3X12 CBTS (S)-B 16
102 0RD 473 7003 017 3X8 CFTS (S)-B 6
103 0RD 473 7002 018 3X8 CBTS (S)-Z 45
103 0RD 473 7002 018 3X8 CBTS (S)-Z for JP / POWER TRANS 4
104 0RD 471 3304 015 3X8 CBS-Z 3
105 0RD 471 3303 016 3X6 CBS-Z 7
106 0RD 473 8034 027 3X8 CBTS(B)-B 2
107 0RD 477 0064 123 FIXING SCREW 16
107 0RD 477 0064 123 FIXING SCREW for JP / D-VIDEO 1
107 0RD 477 0064 123 FIXING SCREW for E2, E1C / SCART 1
109 0RD 471 2303 020 3X6 CFS-B 4
111 0RD 473 7508 017 3X10 CBTS (P)-B 4
112 0RD 473 7500 044 3X8 CBTS (P)-B 16
113 0RD 473 8044 004 SPECIAL SCREW 2
114 0RD 471 9059 018 SPECIAL SCREW Black model 12
114 0RD 471 9059 005 SPECIAL SCREW P.Silver model 12
115 0RD 473 7007 000 4X8 CBTS (S)-B for E3, E2, E1C / POWER TRANS 2
Page 130
DVD5910CI, A1XVA Modification Parts List of DVD Mechanism (FG180-1)
Ref. No Part No. Part Name Remarks Q'ty New
1 00D 411 1988 208 Mecha chassis 1
13 00D 446 0063 201 Mecha frame 1
14A 00D 9KA 2A70 8 TRAVERSE AS(FG180-1W) HOP-1200W 1
17 00D 431 0427 502 Loader Must for HOP-1200W 1
35 00D 461 1250 009 PORON SHEET(LE-20) Attach No.13(M.Frame) 2
Page 133-134
DVD5910CI, A1XVA Modification Parts List of Packing & Accessories
Ref. No. Part No. Part Name Remarks Q'ty New
300 00D1290272003 RJ45 DUST COVER(DCMJST) for E2 1 *
322 00D5114257100 INST.MANUAL(5910E3) for E3 / DENON LINK 3rd 1 *
322 00D5114258206 INST.MANUAL(A1XVJP) for JP / DENON LINK 3rd / 1080P 1 *
322 00D5114259205 INST.MANUAL(A1XVE2) for E2 / DENON LINK 3rd 1 *
322 00D5114300206 IINST.MANUAL(A1XVE1C) for E1C / DENON LINK 3rd 1 *
324 00D5150921704 S.S.LIST(EX) for E3, E2, E1C 1 *
325 00D5150918500 SERVICE STATION LIST for JP 1 *
11
◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
