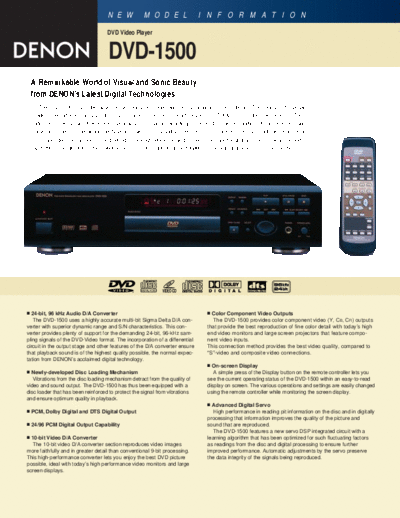

Image preview - the first page of the document
>> Download Описание DVD-1500 documenatation <<
Text preview - extract from the document
N E W M O D E L I N F O R M A T I O N
DVD Video Player
DVD-1500
A Remarkable World of Visual and Sonic Beauty
from DENON's Latest Digital Technologies
The DVD-1500 DVD video player lets you enjoy both video and musical programs in a single unit. The beauty of the visual
images is reproduced from DVD discs by the video circuit section which employs a 27-MHz, 10-bit video D/A converter. The
audio circuit section, which recreates the beauty of the sound recordings, uses a 24-bit, 96-kHz audio D/A converter. You will
marvel at the depth of detail and the dynamic power of the sound you hear from DVD sources. The DVD-1500 also features a
disc tray loader that has been strengthened to minimize vibrations and preserve the superior quality of the visual and sound
experience. The aluminum front panel of the DVD-1500 adds an air of elegance to the high quality of the DVD atmosphere.
s 24-bit, 96 kHz Audio D/A Converter s Color Component Video Outputs
The DVD-1500 uses a highly accurate multi-bit Sigma Delta D/A con- The DVD-1500 provides color component video (Y, CB, CR) outputs
verter with superior dynamic range and S/N characteristics. This con- that provide the best reproduction of fine color detail with today's high
verter provides plenty of support for the demanding 24-bit, 96-kHz sam- end video monitors and large screen projectors that feature compo-
pling signals of the DVD-Video format. The incorporation of a differential nent video inputs.
circuit in the output stage and other features of the D/A converter ensure This connection method provides the best video quality, compared to
that playback sound is of the highest quality possible, the normal expec- "S"-video and composite video connections.
tation from DENON's acclaimed digital technology.
s On-screen Display
s Newly-developed Disc Loading Mechanism A simple press of the Display button on the remote controller lets you
Vibrations from the disc loading mechanism detract from the quality of see the current operating status of the DVD-1500 within an easy-to-read
video and sound output. The DVD-1500 has thus been equipped with a display on screen. The various operations and settings are easily changed
disc loader that has been reinforced to protect the signal from vibrations using the remote controller while monitoring the screen display.
and ensure optimum quality in playback.
s Advanced Digital Servo
s PCM, Dolby Digital and DTS Digital Output High performance in reading pit information on the disc and in digitally
processing that information improves the quality of the picture and
s 24/96 PCM Digital Output Capability sound that are reproduced.
The DVD-1500 features a new servo DSP integrated circuit with a
s 10-bit Video D/A Converter learning algorithm that has been optimized for such fluctuating factors
The 10-bit video D/A converter section reproduces video images as readings from the disc and digital processing to ensure further
more faithfully and in greater detail than conventional 9-bit processing. improved performance. Automatic adjustments by the servo preserve
This high-performance converter lets you enjoy the best DVD picture the data integrity of the signals being reproduced.
possible, ideal with today's high performance video monitors and large
screen displays.
N E W M O D E L I N F O R M A T I O N DVD-1500
sClosed Caption s Compression Function (*2)
Provides on-screen closed captioning, similar to TV broadcasts, with The DVD-1500 includes a compression feature that is convenient late
DVDs that are closed caption encoded. at night or other times when you want to listen to a recording at low volume.
During normal playback, when the volume is turned down, the gaps
s CD-R Audio Playback (*1) between the loud and soft sounds are too great, making it more difficult
The DVD-1500 plays CD-R audio discs. to hear the sound effects or lyrics. The compression function, however,
improves sound clarity at low volume levels.
s Double-speed Drive System
The DVD-1500 is equipped with a drive mechanism capable of read- s Other Versatile Features
