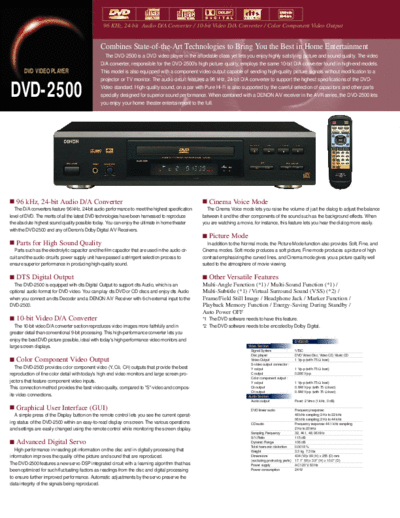

Image preview - the first page of the document
>> Download Описание DVD-2500 documenatation <<
Text preview - extract from the document
96 KHz, 24-bit Audio D/A Converter / 10-bit Video D/A Converter / Color Component Video Output
Combines State-of-the-Art Technologies to Bring You the Best in Home Entertainment
The DVD-2500 is a DVD video player in the affordable class yet lets you enjoy highly satisfying picture and sound quality. The video
D/A converter, responsible for the DVD-2500's high picture quality, employs the same 10-bit D/A converter found in high-end models.
DVD VIDEO PLAYER This model is also equipped with a component video output capable of sending high-quality picture signals without modification to a
projector or TV monitor. The audio circuit features a 96 kHz, 24-bit D/A converter to support the highest specifications of the DVD-
DVD-2500 Video standard. High-quality sound, on a par with Pure Hi-Fi is also supported by the careful selection of capacitors and other parts
specially designed for superior sound performance. When combined with a DENON A/V receiver in the AVR series, the DVD-2500 lets
you enjoy your home theater entertainment to the full.
s 96 kHz, 24-bit Audio D/A Converter s Cinema Voice Mode
The D/A converters feature 96 kHz, 24-bit audio performance to meet the highest specification The Cinema Voice mode lets you raise the volume of just the dialog to adjust the balance
level of DVD. The merits of all the latest DVD technologies have been harnessed to reproduce between it and the other components of the sound such as the background effects. When
the absolute highest sound quality possible today. You can enjoy the ultimate in home theater you are watching a movie, for instance, this feature lets you hear the dialog more easily.
with the DVD-2500 and any of Denon's Dolby Digital A/V Receivers.
s Picture Mode
s Parts for High Sound Quality In addition to the Normal mode, the Picture Mode function also provides Soft, Fine, and
Parts such as the electrolytic capacitor and the film capacitor that are used in the audio cir- Cinema modes. Soft mode produces a soft picture, Fine mode produces a picture of high
cuit and the audio circuit's power supply unit have passed a stringent selection process to contrast emphasizing the curved lines, and Cinema mode gives you a picture quality well
ensure superior performance in producing high-quality sound. suited to the atmosphere of movie viewing.
s DTS Digital Output s Other Versatile Features
The DVD-2500 is equipped with dts Digital Output to support dts Audio, which is an Multi-Angle Function (*1) / Multi-Sound Function (*1) /
optional audio format for DVD video. You can play dts DVD or CD discs and enjoy dts Audio Multi-Subtitle (*1) / Virtual Surround Sound (VSS) (*2) /
when you connect an dts Decoder and a DENON A/V Receiver with 6-ch external input to the Frame/Field Still Image / Headphone Jack / Marker Function /
DVD-2500. Playback Memory Function / Energy-Saving During Standby /
Auto Power OFF
s 10-bit Video D/A Converter *1 The DVD software needs to have this feature.
The 10-bit video D/A converter section reproduces video images more faithfully and in *2 The DVD software needs to be encoded by Dolby Digital.
greater detail than conventional 9-bit processing. This high-performance converter lets you
enjoy the best DVD picture possible, ideal with today's high performance video monitors and DVD2500
large screen displays. Video Section
Signal System NTSC
Disc played DVD Video Disc, Video CD, Music CD
s Color Component Video Output Video Output 1 Vp-p (with 75 load)
S-video output connector :
The DVD-2500 provides color component video (Y, CB, CR) outputs that provide the best Y output 1 Vp-p (with 75 load)
reproduction of fine color detail with today's high end video monitors and large screen pro- C output 0.286 Vp-p
Color component output :
jectors that feature component video inputs. Y output 1 Vp-p (with 75 load)
This connection method provides the best video quality, compared to "S"-video and compos- CB output 0.648 Vp-p (with 75 load)
CR output 0.648 Vp-p (with 75 load)
ite video connections. Audio Section
Audio output Fixed: 2 Vrms (1 kHz, 0 dB)
s Graphical User Interface (GUI) DVD linear audio Frequency response:
A simple press of the Display button on the remote control lets you see the current operat- 48 kHz sampling; 2 Hz to 22 kHz
96 kHz sampling; 2 Hz to 44 kHz
ing status of the DVD-2500 within an easy-to-read display on screen. The various operations CD audio Frequency response: 44.1 kHz sampling;
and settings are easily changed using the remote control while monitoring the screen display. 2 Hz to 20 kHz
Sampling Frequency 32, 44.1, 48, 96 KHz
S/N Ratio 115 dB
s Advanced Digital Servo Dynamic Range 106 dB
Total harmonic distortion 0.0018 %
High performance in reading pit information on the disc and in digitally processing that Weight 3.3 kg 7.3 lbs
information improves the quality of the picture and sound that are reproduced. Dimensions 434 (W)x 99 (H) x 255 (D) mm
(excluding protruding parts) 17.1" (W)x 3.9" (H) x 10.0" (D)
The DVD-2500 features a new servo DSP integrated circuit with a learning algorithm that has Power supply AC 120 V, 60 Hz
been optimized for such fluctuating factors as readings from the disc and digital processing Power consumption 24 W
to ensure further improved performance. Automatic adjustments by the servo preserve the
data integrity of the signals being reproduced.
