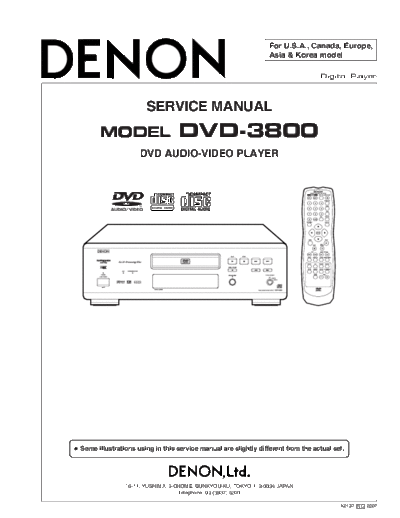

Image preview - the first page of the document
>> Download Схема DVD-3800 documenatation <<
Text preview - extract from the document
For U.S.A., Canada, Europe,
Asia & Korea model
Digital Player
SERVICE MANUAL
MODEL DVD-3800
DVD AUDIO-VIDEO PLAYER
Some illustrations using in this service manual are slightly different from the actual set.
16-11, YUSHIMA 3-CHOME, BUNKYOU-KU, TOKYO 113-0034 JAPAN
Telephone: 03 (3837) 5321
X0137 NC 0207
DVD-3800
SAFETY PRECAUTIONS
The following check should be performed for the continued protection of the customer and service technician.
LEAKAGE CURRENT CHECK
Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis
resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the
power cord is less than 460 kohms, the unit is defective.
SPECIFICATIONS
Signal System: NTSC/PAL
Applicable Discs: (1) DVD-Audio/DVD-Video discs
1-layer 12 cm single-sided discs, 2-layer 12 cm single-sided discs,
2-layer 12 cm double-sided discs (1 layer per side)
1-layer 8 cm single-sided discs, 2-layer 8 cm single-sided discs,
2-layer 8 cm double-sided discs (1 layer per side)
(2) Compact discs (CD-DA, Video CD)
12 cm discs, 8 cm discs
S-Video Output: Y output level: 1 Vp-p (75 /ohms)
C output level: 0.286 Vp-p (For U.S.A., Canada, Asia & Korea model)
0.3 Vp-p (For Europe model)
Output connectors: S connectors, 2 setS
AV 1 connector, 1 set (For Europe model)
Video Output: Output level: 1 Vp-p (75 /ohms)
Output connector: Pin-plug jacks, 2 setS
AV 1 connector, 1 set/AV2 connector, 1 set (For Europe model)
Component Output: Y output level: 1 Vp-p (75 /ohms)
PB/CB output level: 0.648 Vp-p (75 /ohms) (For U.S.A., Canada, Asia & Korea model)
0.7 Vp-p (75 /ohms) (For Europe model)
PR/CR output level: 0.648 Vp-p (75 /ohms) (For U.S.A., Canada, Asia & Korea model)
0.7 Vp-p (75 /ohms) (For Europe model)
Output connector: Pin jack, 1 set
RGB Output: Output level: 0.7 Vp-p (75 /ohms) (For Europe model)
Output connector: AV 1 connector, 1 set (For Europe model)
Audio Output: Output level: 2 Vrms
2 channel (FL, FR) output connector: Pin jacks, 2 sets
Multi channel (C, SW, SL, SR) output connector: Pin jack, 1 set
AV 1, 1 set/AV 2, 1 set (For Europe model)
Audio Output Properties: (1) Frequency response
1 DVDs (linear PCM) : 2 Hz to 22 kHz (48 kHz sampling)
: 2 Hz to 44 kHz (96 kHz sampling)
: 2 Hz to 88 kHz (192 kHz sampling)
2 CDs : 2 Hz to 20 kHz
(2) S/N ratio
1 DVDs : 116 dB
2 CDs : 116 dB
(3) Total harmonic distortion
1 DVDs : 0.0015 %
2 CDs : 0.0018 %
(4) Dynamic range
1 DVDs : 108 dB
2 CDs : 100 dB
Digital Audio Output: Optical digital output : Optical connector, 1 set
Coaxial digital output : Pin jack, 1 set
Power Supply: AC 120 V, 60 Hz (For U.S.A. & Canada model)
AC 230 V, 50 Hz (For Europe & Asia model)
AC 220 V, 50 Hz (For China model)
AC 220 V, 60 Hz (For Korea model)
Power Consumption: 30 W (For U.S.A. & Canada model)
32 W (For Europe, Asia & Korea model)
Maximum External Dimensions: 434 (W) ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
