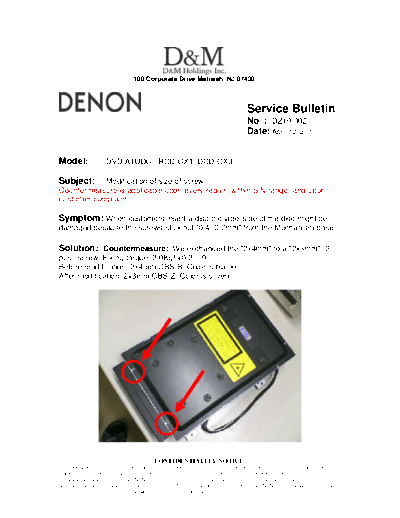

Service Bulletin DZ10-002


>> Download Service Bulletin DZ10-002 documenatation <<

Text preview - extract from the document
                                  100 Corporate Drive Mahwah, NJ 07430



                                                                                       Service Bulletin
                                         No. : DZ10-002
                                         Date: April 12, 2010
_____________________________________________________________

Model:               DVD-A1UDCI, RCD-CX1, DCD-CX3

Subject:    Modification of size of screw.
Countermeasure is applicable upon every repair (within S/N range) and upon
customer complaint.

Symptom: When customers insert a disc the label side of the disc might be
damaged because the screws stick out "0.4~0.7mm" from the Mechanism base.

Solution: Countermeasure: We exchanged the "2x4mm" to a "2x3mm" (2
pcs.) screw. Fixing torque: 2.0Kgf +0.2 / -0.
Before modification: 2x4mm CBS-B (Color is black)
After modification: 2x3mm CBS-Z (Color is silver)




______________________________________________________________________________________
                             CONFIDENTIALITY NOTICE:
The information contained in this document is intended for the exclusive use by DENON Authorized Service Centers and their
employees. This document may contain information that is privileged, confidential and may be protected from disclosure under
applicable laws and terms of the DENON Service Agreement. Any distribution, disclosure, dissemination or copying of this
document and the information it contains is prohibited. No responsibility will be accepted by DENON for any damage, injury or loss
resulting from the misuse of the information contained in this document.
Parts:
    Ref#                        Description                                  Part Number
     NA                         2x3 CBS-Z                                   0RD4713801039

Serial Number Range:
Please apply the above modification to the models in the following serial
numbers. (Full-digits)

DVD-A1UDCI                                 ***1500001 ~ 0011510159
RCD-CX1                                    ***1500001 ~ 8071500200
DCD-CX3                                    ***1500001 ~ 9091500400
