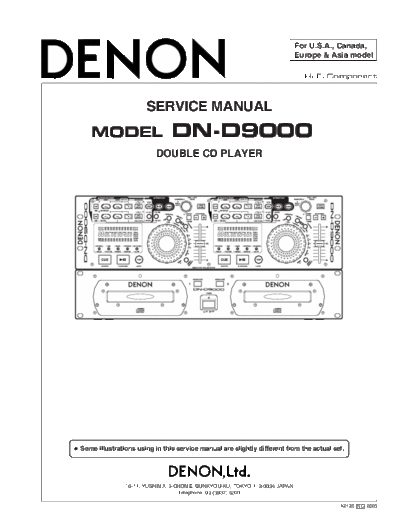

Image preview - the first page of the document
>> Download Схема DN-D9000 documenatation <<
Text preview - extract from the document
For U.S.A., Canada,
Europe & Asia model
Hi-Fi Component
SERVICE MANUAL
MODEL DN-D9000
DOUBLE CD PLAYER
Some illustrations using in this service manual are slightly different from the actual set.
16-11, YUSHIMA 3-CHOME, BUNKYOU-KU, TOKYO 113-0034 JAPAN
Telephone: 03 (3837) 5321
X0139 NC 0203
DN-D9000
SAFETY PRECAUTIONS
The following check should be performed for the continued protection of the customer and service technician.
LEAKAGE CURRENT CHECK
Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis
resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the
power cord is less than 460 kohms, the unit is defective.
SPECIFICATIONS
GENERAL
Type: Twin mechanism compact disc player with wired remote control
Disc Type: Standard compact discs (12 cm and 8 cm discs)
For CD-R and CD-RW discs, only finalized ones can be played back.
However, some discs may not be playable depending on their recording
conditions.
Dimensions: Player unit: 482 (W) ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
