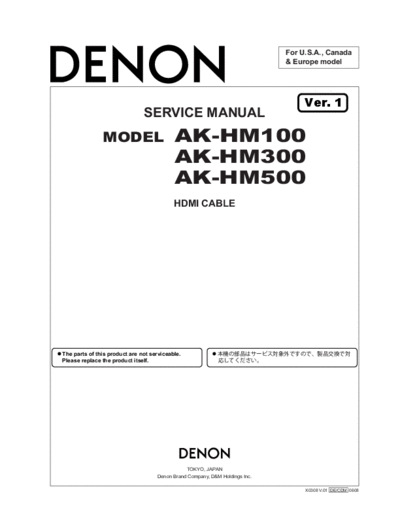

Image preview - the first page of the document
>> Download Схема AK-HM100 & 300 & 500 documenatation <<
Text preview - extract from the document
For U.S.A., Canada
& Europe model
Ver. 1
SERVICE MANUAL
MODEL AK-HM100
AK-HM300
AK-HM500
HDMI CABLE
The parts of this product are not serviceable.
Please replace the product itself.
TOKYO, JAPAN
Denon Brand Company, D&M Holdings Inc.
X0308 V.01 DE/CDM 0608
AK-HM100/300/500
DOCUMENTS FOR WEEE
Details of Recycle parts (AK-HM100/300/500)
You have to remove the parts that marked "WEEE Mark " when the recycling processing. (Europe model only)
WEEE
Ref. No. Part Name Material Q'ty
Mark
1 HDMI CABLE COMPLEX 1
Exploded view of AK-HM100/300/500
1
You have to remove the parts that marked
"WEEE Mark " when the recycling processing.
(Europe model only)
2
