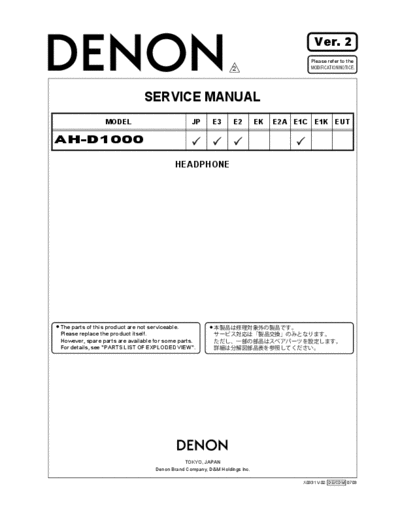

Image preview - the first page of the document
>> Download Схема AH-D1000 documenatation <<
Text preview - extract from the document
Ver. 2
Please refer to the
2 MODIFICATION NOTICE.
SERVICE MANUAL
MODEL JP E3 E2 EK E2A E1C E1K EUT
AH-D1000
HEADPHONE
The parts of this product are not serviceable.
Please replace the product itself.
However, spare parts are available for some parts.
For details, see "PARTS LIST OF EXPLODED VIEW".
TOKYO, JAPAN
Denon Brand Company, D&M Holdings lnc.
X0331 V.02 DE/CDM 0703
AH-D1000
EXPLODED VIEW
1
2
3
4
PARTS LIST OF EXPLODED VIEW
The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.
Part indicated with the mark "nsp" are not always in stock and possibly to take a long period of time for supplying, or in some case supplying of part may be refused.
Ref. No. nsp Part No. Part Name Remarks Q'ty New
1 - AH-D1000-K ASSY Black model, for JP 450024 1 *
1 - AH-D1000-S ASSY Silver model, for JP 450021 1 *
1 - AH-D1000BKEM ASSY Black model, for EM 455485 1 *
1 - AH-D1000SREM ASSY Silver model, for EM 455486 1 *
2 00D 9H3 0001 703 EAR PAD 2P SET 438823 1 * 2
3 00D 9H3 0001 704 EXTENSION CABLE ASSY 453603 1 *
4 00D 9H3 0001 705 ADAPTER PLUG 453367 1 *
2
AH-D1000
REPLACING THE EAR PAD 2 2
(Follow the procedure below in reverse order when reassem-
bling.)
1. Removing the Ear Pad
(1) Hold the side of the ear pad and remove from the baffle
in the direction of the arrow.
BAFFLE
3
AH-D1000
DOCUMENTS FOR WEEE (For Europe model only)
NOTE: The following is not a list of spare parts.
For the spare parts, see "PARTS LIST OF EXPLODED VIEW".
Details of Recycle parts (AH-D1000)
You have to remove the parts that marked "WEEE Mark " when the recycling processing. (Europe model only)
WEEE
Ref. No. Part Name Material Q'ty
Mark
1 Dr. UNIT ABS, SUS, Fe, Cu 2
2 HEAD PAD PUR 1
3 EAR PAD PUR 2
4 HEAD BAND SUS 1
5 STOPPER ABS 2
6 STOPPER COVER ABS 2
7 SLIDER L ABS 1
8 SLIDER COVER L ABS 1
9 SLIDER R ABS 1
10 SLIDER COVER R ABS 1
11 SPRING SUS 2
12 SHAFT SUS 2
13 HANGER L Complex 1
14 HANGER R Complex 1
15 HOUSING L ABS 1
16 HOUSING R ABS 1
17 BAFFLE ABS 2
18 SCREEN Vinylon Fabric, Acryl 2
19 DAMPER URETHANE 2
20 BUSHING ELASTOMER 2
21 FLAT HEAD SCREW SWCH + Cu + Ni 6
22 PAN HEAD SCREW SWCH + Cu + Cr 4
23 CORD ASSY TPE, Al, Cu, Bs 1
24 EXTENSITON CABLE ASSY TPE, Al, Cu, Bs 1
25 ADAPTER PLUG Bs 1
26 RING ABS 2
27 DOUBLE FACE TAPE ADHESIVE 2
Exploded view of AH-D1000
You have to remove the parts that marked
"WEEE Mark " when the recycling processing. HEADPHONE R SIDE
(Europe model only)
3
4
2 22 19
27 21
6 17
5
8 , 10 21 22
15 , 16
18
11 1
7 , 9 12
23
13 , 14 26
20 24
25
