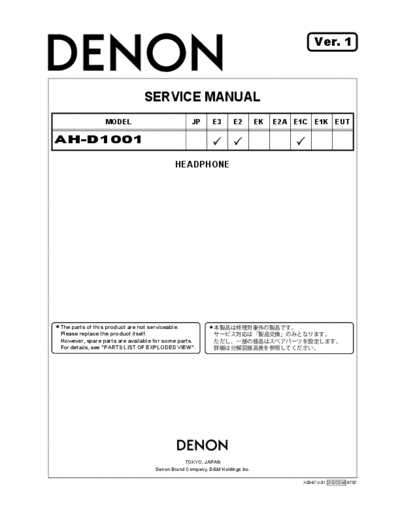

Image preview - the first page of the document



>> Download Схема AH-D1001 documenatation <<

Text preview - extract from the document

                                                                                          Ver. 1



                               SERVICE MANUAL
                MODEL                            JP       E3      E2        EK   E2A E1C E1K EUT

AH-D1001

                                          HEADPHONE




The parts of this product are not serviceable.
Please replace the product itself.
However, spare parts are available for some parts.
For details, see "PARTS LIST OF EXPLODED VIEW".




                                              TOKYO, JAPAN
                                   Denon Brand Company, D&M Holdings lnc.

                                                                                      X0347 V.01 DE/CDM 0707
                                                                                                                                            AH-D1001


EXPLODED VIEW



                                                                                                                   1




                                                                                        2




                                                                                                     3


                                                                                                                               5
                                              4

PARTS LIST OF EXPLODED VIEW
 Parts for which "nsp" is indicated on this table cannot be supplied.



 The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.


        Ref. No.              Part No.                             Part Name                                Remarks                          Q'ty   New
                    1             nsp              AH-D1001BKEM ASSY                                 Black model, for EM           461586     1      *
                    1             nsp              AH-D1001SREM ASSY                                 Silver model, for EM          461587     1      *
                    2    00D 9H3 0001 703          EAR PAD 2P SET                                                                  438823     1
                    3             nsp              EXTENSION CABLE ASSY                                                            462251     1      *
                    4             nsp              ADAPTER PLUG                                                                    453367     1
                    5             nsp              CARRYING POUCH                                                                  462804     1      *


SECURITY TAGS

 Attach security tags to this product's package. (Attach two tags within an area of 3 inches from the bar code.)


        Ref. No.                 Part No.                                       Part Name                                      Remarks       Q'ty   New
                                     nsp               Security tag (Checkpoint Systems Inc. : NE460)                                -        1      *
                                     nsp               Security tag (Sensormatic Electronics Corp. : ZLDRS1)                         -        1      *
