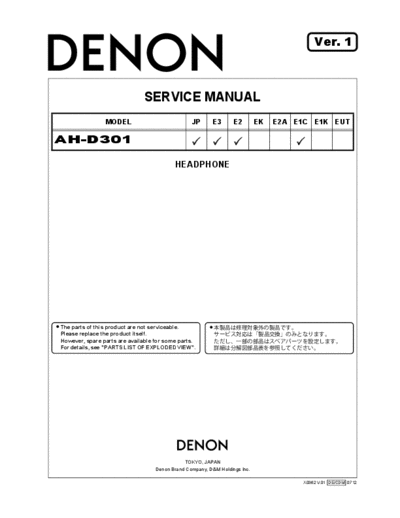

Image preview - the first page of the document

>> Download Схема AH-D301 documenatation <<

Text preview - extract from the document

Ver. 1

SERVICE MANUAL
MODEL JP E3 E2 EK E2A E1C E1K EUT

AH-D301

HEADPHONE

The parts of this product are not serviceable.
Please replace the product itself.
However, spare parts are available for some parts.
For details, see "PARTS LIST OF EXPLODED VIEW".

TOKYO, JAPAN
Denon Brand Company, D&M Holdings lnc.

X0362 V.01 DE/CDM 0712
AH-D301

EXPLODED VIEW

e
q

r
w

PARTS LIST OF EXPLODED VIEW
Parts for which "nsp" is indicated on this table cannot be supplied.

The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.

Note: The symbols in the column "Remarks" indicate the following destinations.
EM : E2(Europe model), E3(U.S.A. & Canada model), E1C (China model)
JP : Japan model

Ref. No. Part No. Part Name Remarks Q'ty New
1 nsp AH-D301-K ASSY Black model, for JP 467672 1 *
1 nsp AH-D301-S ASSY Silver model, for JP 467670 1 *
1 nsp AH-D301BKEM ASSY Black model, for EM 465452 1 *
1 nsp AH-D301SREM ASSY Silver model, for EM 465453 1 *
2 00D 9H3 0001 729 EAR PAD 2P SET 472968 1 *
3 nsp EXTENSION CABLE ASSY 467529 1 *
4 nsp ADAPTER PLUG 370886 1

AH-D301BKEM is the same as AH-D301-K, and AH-D301SREM is the same as AH-D301-S.

SECURITY TAGS
Attach security tags to AH-D301BKEM and AH-D301SREM package. (Attach two tags within an area of 3 inches from the bar code.)

Ref. No. Part No. Part Name Remarks Q'ty New
nsp Security tag (Checkpoint Systems Inc. : NE460) for EM 1
nsp Security tag (Sensormatic Electronics Corp. : ZLDRS1) for EM 1

2
AH-D301

REPLACING THE EAR PAD
(Follow the procedure below in reverse order when reassem-
bling.)

1. Removing the Ear Pad
(1) Hold the side of the ear pad and remove in the direction
of the arrow.
