                                                                                          Ver. 1

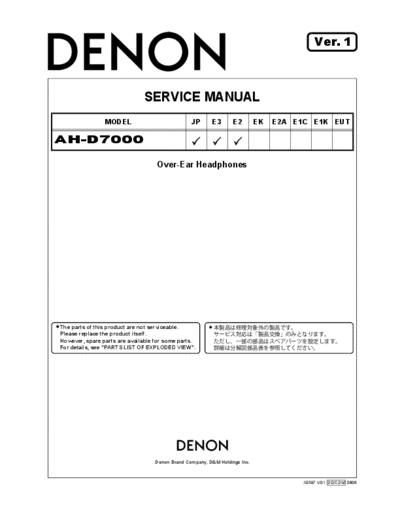

                               SERVICE MANUAL
                MODEL                            JP       E3      E2        EK   E2A E1C E1K EUT

AH-D7000

                                   Over-Ear Headphones




The parts of this product are not serviceable.
Please replace the product itself.
However, spare parts are available for some parts.
For details, see "PARTS LIST OF EXPLODED VIEW".




                                          e
                                   Denon Brand Company, D&M Holdings lnc.



                                                                                      X0397 V.01 DE/CDM 0808
EXPLODED VIEW

                                                                                                                               1




                                                                                                2 -2




                                                                                                     2 -1
                                                                              2




                                                                                                                                3




PARTS LIST OF EXPLODED VIEW
 Parts for which "nsp" is indicated on this table cannot be supplied.

 The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.


       Ref. No.              Part No.                          Part Name                                      Remarks                   Q'ty   New
                   1             nsp             AH-D7000 ASSY                                                                 480244    1      *
                   2             nsp             EAR PAD ASSY                                                                            -
                 2-1    00D 9H3 0001 706         EAR PAD 2P SET                                                                448261    1      *
                 2-2    00D 9H3 0001 707         POM PLATE 2P SET                                                              442208    1      *
                   3             nsp             WIPING CLOTH                                                                            1




                                                                           2
                                                                        AH-D7000
REPLACING THE EAR PAD
 1. Removing the Ear Pad ASSY
     (EAR PAD ASSY : POM PLATE + EAR PAD)
  With this structure, the catch on the ear pad assembly's
  POM plate is caught in the housing ring's hole to fasten the
  ear pad assembly in place.
  For details, see "EXPLODED VIEW".
  (1) Pressing down on the ear pad assembly, turn the ear
      pad assembly in the direction of the arrow to unlatch
      the POM plate's catch.
      NOTE: The catch may break if the assembly is
             turned too strongly.




 2. Disassembling and assembling the Ear
    Pad ASSY
(Follow the procedure below in reverse order when reassem-
bling.)

  (1) Detach the ear pad from the POM plate.




                                                     EAR PAD        POM PLATE




                                                            3
                                                         AH-D7000
3. Cautions on mounting the Ear Pad
   ASSY
 The diagram below shows the right side.
 (1) After mounting the ear pad assembly, turn only the ear
     pad so that the longer part of the ear pad's opening is
     lined up with the hanger shaft.




                                                  Hanger shaft

Opening




                                                                   The ear pad is horizontally symmetrical.




            Thin part    Front             Thick part   Rear




                                                           4
                                                        AH-D7000
