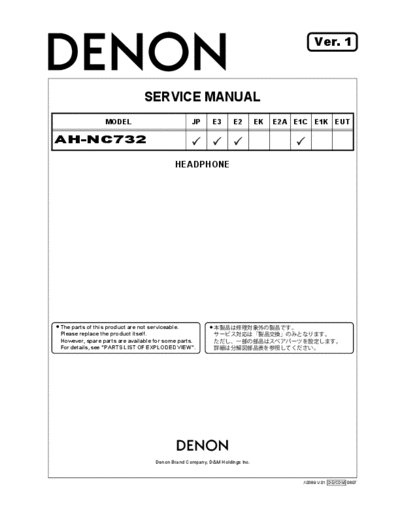

Ver. 1

SERVICE MANUAL
MODEL JP E3 E2 EK E2A E1C E1K EUT

AH-NC732

HEADPHONE

The parts of this product are not serviceable.
Please replace the product itself.
However, spare parts are available for some parts.
For details, see "PARTS LIST OF EXPLODED VIEW".

e
Denon Brand Company, D&M Holdings lnc.

X0389 V.01 DE/CDM 0807
EXPLODED VIEW

2-2
2

4
2-1

PARTS LIST OF EXPLODED VIEW
Parts for which "nsp" is indicated on this table cannot be supplied.

The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.

Note: The symbols in the column "Remarks" indicate the following destinations.
EM : E2(Europe model), E3(U.S.A. & Canada model), E1C (China model)
JP : Japan model

Ref.No. Part No. Part Name Remarks Q'ty New
1 nsp AH-NC732-K Black model, for JP 1 *
1 nsp AH-NC732-S Silver model, for JP 1 *
1 nsp AH-NC732BKEM Black model, for EM 1 *
1 nsp AH-NC732SREM Silver model, for EM 1 *
2 nsp EAR PAD ASSY -
2-1 917429000020D EAR PAD SET 2800030031 1 *
2-2 nsp EAR PAD HOLDER 2 *
3 917619000010D CORD SET ASSY 2800040031 1 *
4 nsp CARRYING CASE 1 *

AH-NC732BKEM is the same as AH-NC732-K, and AH-NC732SREM is the same as AH-NC732-S.

SECURITY TAGS

Attach security tags to AH-NC732BKEM and AH-NC732SREM package. (Attach two tags within an area of 3 inches from the bar code.)

Ref. No. Part No. Part Name Remarks Q'ty New
nsp Security tag (Checkpoint Systems Inc. : NE460) - 1 *
nsp Security tag (Sensormatic Electronics Corp. : ZLDRS1) - 1 *

2
AH-NC732
REPLACING THE EAR PAD
1. Removing the EAR PAD ASSY
(EAR PAD ASSY : EAR PAD HOLDER+ EAR PAD)
Press the clips of the HOUSING into the corresponding fit-
ting holes in the EAR PAD HOLDER of the EAR PAD
ASSY to fasten the structure together.
For details, see "3.Attaching the EAR PAD".

(1) Detach the EAR PAD ASSY from the HOUSING.

Ear Pad Assy

HOUSING

2. Disassembling and assembling the
EAR PAD ASSY
(Follow the procedure below in reverse order when reassembling.)

(1) Detach the EAR PAD from the EAR PAD HOLDER.

EAR PAD HOLDER

EAR PAD

3
AH-NC732
3. Attaching the EAR PAD
(1) To attach, fit the EAR PAD ASSY to the HOUSING at
an angle as shown in the figure, keeping in alignment q
with the convex part at the center of the HOUS-
ING.(Fig. q)
(2) Align the HOUSING clips with their corresponding fit- w t
ting holes in the EAR PAD HOLDER, and press one in
after another until hear each click into place.(Fig. w b
t)
bThe EAR PAD fits in one way only. Make sure you fit it
right way.

q e
t

4
AH-NC732
