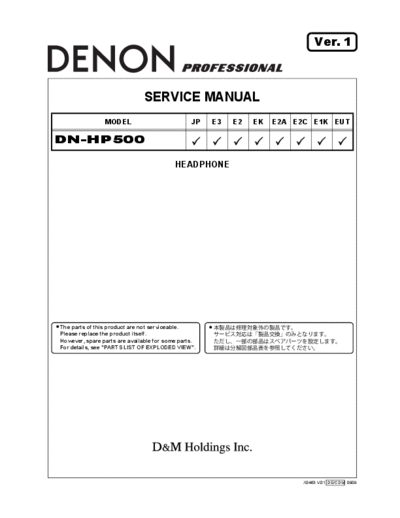

Image preview - the first page of the document
>> Download Схема DN-HP500 documenatation <<
Text preview - extract from the document
Ver. 1
SERVICE MANUAL
MODEL JP E3 E2 EK E2A E2C E1K EUT
DN-HP500
HEADPHONE
The parts of this product are not serviceable.
Please replace the product itself.
However, spare parts are available for some parts.
For details, see "PARTS LIST OF EXPLODED VIEW".
X0463 V.01 DE/CDM 0909
EXPLODED VIEW
1
2
4
3
PARTS LIST OF EXPLODED VIEW
Parts for which "nsp" is indicated on this table cannot be supplied.
The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.
Ref.No. Part No. Part Name Remarks Q'ty New
1 nsp DN-HP500EM ASSY - - 1 *
2 916429000010P EAR PAD/DN-HP500 2pcs./sets 1394-07060 1 *
3 916619000020P HP CORD/DN-HP500 - 1394-07050 1 *
4 nsp PLUG ADAPTER - - 1
2
DN-HP500
REPLACING EAR PAD
Follow the procedure below in reverse order when reas-
sembling.
(1) Hold the side of the ear pad and remove in the direc-
tion of the arrow.
3
DN-HP500
REPLACING THE CORD ASSY
Follow the procedure below in reverse order when reas-
sembling.
(1) Removing the ear pad.
(2) Remove the screws.
(3) Disconnect the wires.
Extending line
Anode side
BLACK GREEN
Extending line (RED)
RED
4
DN-HP500
(4) Remove the the CORD ASSY..
About 60mm
KNOT : Untie
CORD ASSY : Disconnect
5
