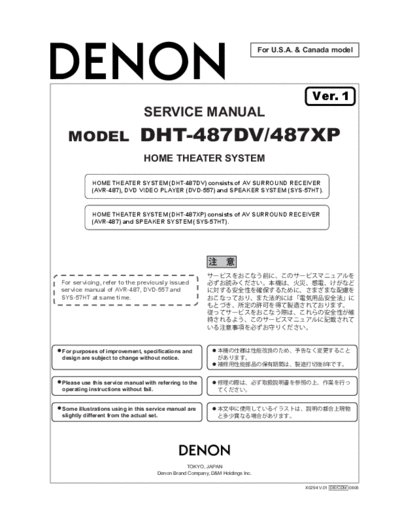

Image preview - the first page of the document
>> Download PACKING DHT-487DV & 487XP documenatation <<
Text preview - extract from the document
For U.S.A. & Canada model
Ver. 1
SERVICE MANUAL
MODEL DHT-487DV/487XP
HOME THEATER SYSTEM
HOME THEATER SYSTEM (DHT-487DV) consists of AV SURROUND RECEIVER
(AVR-487), DVD VIDEO PLAYER (DVD-557) and SPEAKER SYSTEM (SYS-57HT).
HOME THEATER SYSTEM (DHT-487XP) consists of AV SURROUND RECEIVER
(AVR-487) and SPEAKER SYSTEM (SYS-57HT).
For servicing, refer to the previously issued
service manual of AVR-487, DVD-557 and
SYS-57HT at same time.
For purposes of improvement, specifications and
design are subject to change without notice.
Please use this service manual with referring to the
operating instructions without fail.
Some illustrations using in this service manual are
slightly different from the actual set.
TOKYO, JAPAN
Denon Brand Company, D&M Holdings Inc.
X0294 V.01 DE/CDM 0606
DHT-487DV/487XP
PACKING VIEW (DHT-487DV)
7
3
6
2
5
4
1
PARTS LIST OF PACKING (DHT-487DV)
The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.
Part indicated with the mark "nsp" are not always in stock and possibly to take a long period of time for supplying, or in some case supplying of part may be refused.
Ref. No. nsp Part No. Part Name Remarks Q'ty New
1 nsp 00D 501 2346 003 MASTER CARTON 1 *
2 - SPEAKER SYSTEM PACK SYS-57HT 1
3 - AV RECEIVER AVR-487 1
4 - DVD PLAYER DVD-557 1
5 nsp 00D 502 1134 002 SPACER B 1 *
6 nsp 00D 502 1133 003 SPACER A 1 *
7 nsp 00D 511 4563 001 SETUP GUIDE 1 *
2
DHT-487DV/487XP
PACKING VIEW (DHT-487XP)
4
3
2
1
PARTS LIST OF PACKING (DHT-487XP)
The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.
Part indicated with the mark "nsp" are not always in stock and possibly to take a long period of time for supplying, or in some case supplying of part may be refused.
Ref. No. nsp Part No. Part Name Remarks Q'ty New
1 nsp 00D 501 2347 002 MASTER CARTON 1 *
2 - SPEAKER SYSTEM PACK SYS-57HT 1
3 - AV RECEIVER AVR-487 1
4 nsp 00D 511 4563 001 SETUP GUIDE 1 *
3
