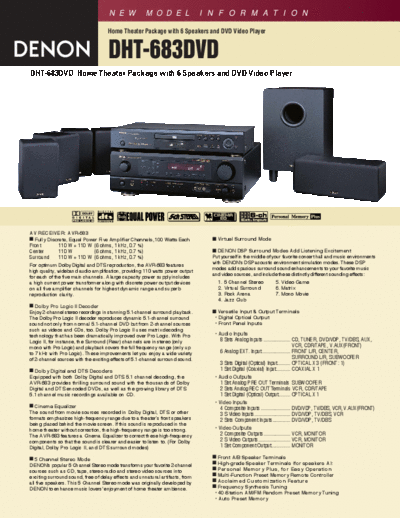

Image preview - the first page of the document



>> Download Описание DHT-683DVD documenatation <<

Text preview - extract from the document

                                     N E W            M O D E L                 I N F O R M A T I O N

                                    Home Theater Package with 6 Speakers and DVD Video Player


                                     DHT-683DVD
DHT-683DVD Home Theater Package with 6 Speakers and DVD Video Player




AV RECEIVER: AVR-683
 Fully Discrete, Equal Power Five Amplifier Channels, 100 Watts Each               Virtual Surround Mode
Front       110 W + 110 W (6 ohms, 1 kHz, 0.7 %)
Center      110 W          (6 ohms, 1 kHz, 0.7 %)                                  DENON DSP Surround Modes Add Listening Excitement
Surround    110 W + 110 W (6 ohms, 1 kHz, 0.7 %)                                  Put yourself in the middle of your favorite concert hall and music environments
For optimum Dolby Digital and DTS reproduction, the AVR-683 features              with DENON's DSP acoustic environment simulation modes. These DSP
high quality, wideband audio amplification, providing 110 watts power output      modes add spacious surround sound enhancements to your favorite music
for each of the five main channels. A large capacity power supply includes        and video sources, and include these distinctly different sounding effects:
a high current power transformer along with discrete power output devices           1. 5 Channel Stereo            5. Video Game
on all five amplifier channels for highest dynamic range and superb                 2. Virtual Surround            6. Matrix
reproduction clarity.                                                               3. Rock Arena                  7. Mono Movie
                                                                                    4. Jazz Club
 Dolby Pro Logic II Decoder
Enjoy 2-channel stereo recordings in stunning 5.1-channel surround playback.       Versatile Input & Output Terminals
The Dolby Pro Logic II decoder reproduces dynamic 5.1-channel surround
