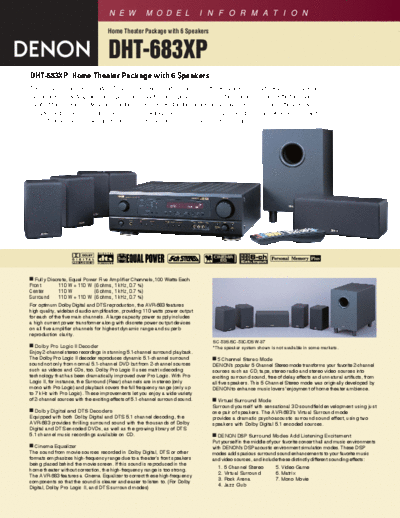

Image preview - the first page of the document
>> Download Описание DHT-683XP documenatation <<
Text preview - extract from the document
N E W M O D E L I N F O R M A T I O N
Home Theater Package with 6 Speakers
DHT-683XP
DHT-683XP Home Theater Package with 6 Speakers
The DHT-683XP, with Dolby Digital, DTS, Dolby Pro Logic II, and a robust 110 watts per channel, is a versatile A/V receiver package
that includes 5 DENON speakers and a powerful subwoofer. Since speakers must be carefully selected to bring out the full sound
quality of the recording, DENON has made the job easier by selecting the speakers for you. With Dolby Pro Logic II, the AVR-683
recreates existing Dolby Surround programs and conventional stereo sources such as CD in realistic 5.1-channel likeness. Just add
your DVD player and you'll be ready to fire up your favorite video or music program in full surround sound.
Fully Discrete, Equal Power Five Amplifier Channels, 100 Watts Each
Front 110 W + 110 W (6 ohms, 1 kHz, 0.7 %)
Center 110 W (6 ohms, 1 kHz, 0.7 %)
Surround 110 W + 110 W (6 ohms, 1 kHz, 0.7 %)
For optimum Dolby Digital and DTS reproduction, the AVR-683 features
high quality, wideband audio amplification, providing 110 watts power output
for each of the five main channels. A large capacity power supply includes
a high current power transformer along with discrete power output devices
on all five amplifier channels for highest dynamic range and superb
reproduction clarity.
SC-53S/SC-53C/DSW-37
Dolby Pro Logic II Decoder *The speaker system shown is not available in some markets.
Enjoy 2-channel stereo recordings in stunning 5.1-channel surround playback.
The Dolby Pro Logic II decoder reproduces dynamic 5.1-channel surround 5 Channel Stereo Mode
sound not only from normal 5.1-channel DVD but from 2-channel sources DENON's popular 5 Channel Stereo mode transforms your favorite 2-channel
such as videos and CDs, too. Dolby Pro Logic II uses matrix decoding sources such as CD, tape, stereo radio and stereo video sources into
technology that has been dramatically improved over Pro Logic. With Pro exciting surround sound, free of delay effects and unnatural artifacts, from
Logic II, for instance, the Surround (Rear) channels are in stereo (only all five speakers. This 5 Channel Stereo mode was originally developed by
mono with Pro Logic) and playback covers the full frequency range (only up DENON to enhance music lovers' enjoyment of home theater ambience.
to 7 kHz with Pro Logic). These improvements let you enjoy a wide variety
of 2-channel sources with the exciting effects of 5.1-channel surround sound. Virtual Surround Mode
Surround yourself with sensational 3D soundfield envelopment using just
Dolby Digital and DTS Decoders one pair of speakers. The AVR-683's Virtual Surround mode
Equipped with both Dolby Digital and DTS 5.1 channel decoding, the provides a dramatic psychoacoustic surround sound effect, using two
AVR-683 provides thrilling surround sound with the thousands of Dolby speakers with Dolby Digital 5.1 encoded sources.
Digital and DTS encoded DVDs, as well as the growing library of DTS
5.1 channel music recordings available on CD. DENON DSP Surround Modes Add Listening Excitement
Put yourself in the middle of your favorite concert hall and music environments
Cinema Equalizer with DENON's DSP acoustic environment simulation modes. These DSP
The sound from movie sources recorded in Dolby Digital, DTS or other modes add spacious surround sound enhancements to your favorite music
formats emphasizes high-frequency range due to a theater's front speakers and video sources, and include these distinctly different sounding effects:
being placed behind the movie screen. If this sound is reproduced in the
1. 5 Channel Stereo 5. Video Game
home theater without correction, the high-frequency range is too strong.
2. Virtual Surround 6. Matrix
The AVR-683 features a Cinema Equalizer to correct these high-frequency
3. Rock Arena 7. Mono Movie
components so that the sound is clearer and easier to listen to. (For Dolby
4. Jazz Club
Digital, Dolby Pro Logic II, and DTS surround modes)
N E W M O D E L I N F O R M A T I O N DHT-683XP
Versatile Input & Output Terminals Frequency Synthesis Tuning
